BA 1001/1501/2001 us – Edition 3.3 * 12001b330.fm 3-31
Operation

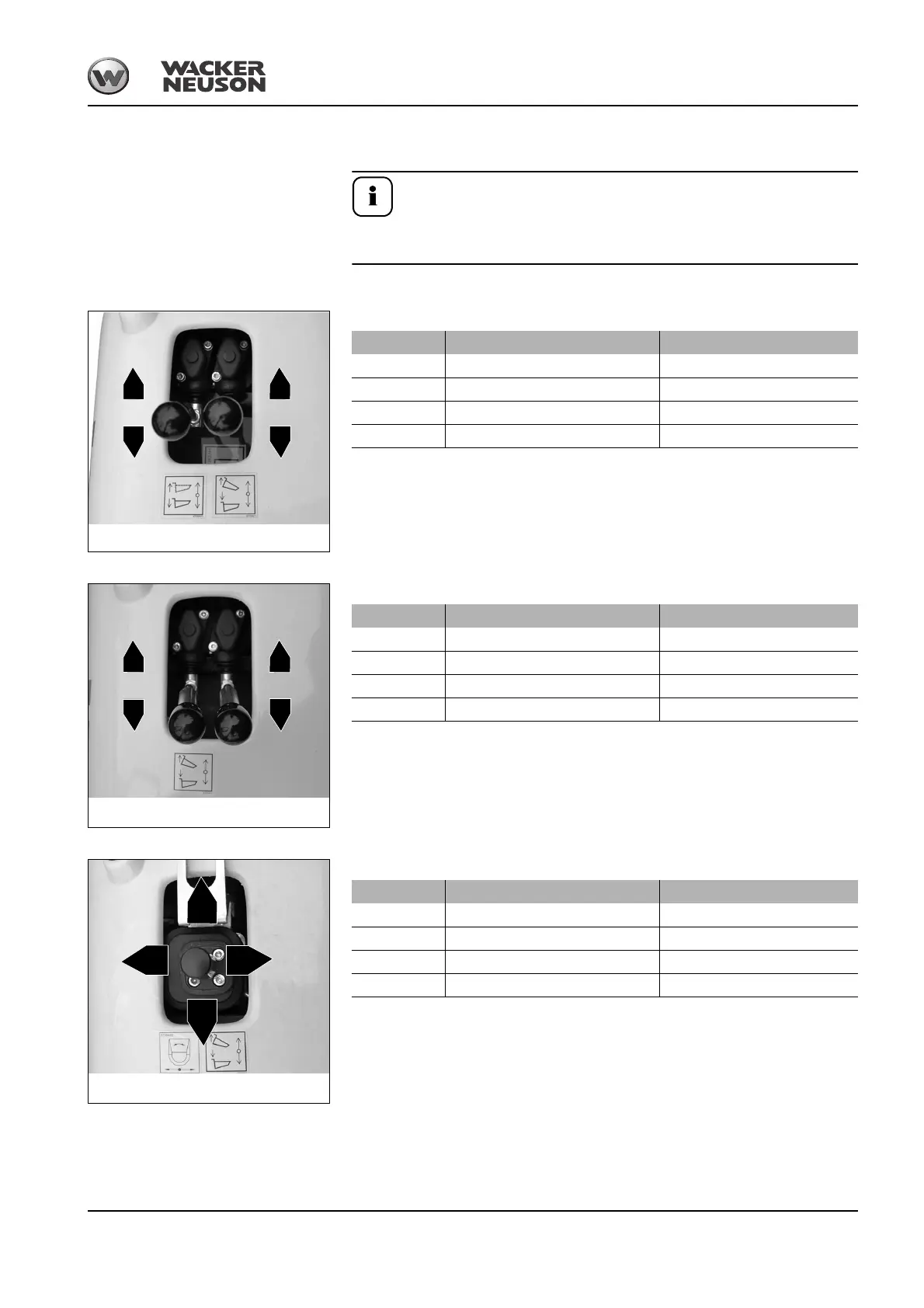

3.20 Skip operation
Important
The working speed of the skip is set with the travel of the control lever and with
the accelerator pedal.
Operation of high-tip skip (1001/1501H)
Swivel skip operation (1501S/option)
Swivel skip operation (2001S)
Fig. 49: Operation of high-tip skip (1001/1501H)
A
B D
C
Position
Lever Function
A
Lever forward Raises the lift frame
B
Lever to the rear Lowers the lift frame
C
Lever forward Tilts out the skip
D
Lever to the rear Lowers the skip
Fig. 50: Swivel skip operation (1501S)
A
B D
C
Position
Lever Function
A
Lever forward Tilts out the skip
B
Lever to the rear Lowers the skip
C
Lever forward Skip is rotated to the right
D
Lever to the rear Skip is rotated to the left
Fig. 51: Swivel skip operation (2001)
A
B
D
C
Position
Lever Function
A
Lever forward Tilts out the skip
B
Lever to the rear Lowers the skip
C
Lever to the left Skip is rotated to the left
D
Lever to the right Skip is rotated to the right
