BA 1001/1501/2001 us – Edition 3.3 * 12001b330.fm 3-41
Operation
1001/1501/1501 S

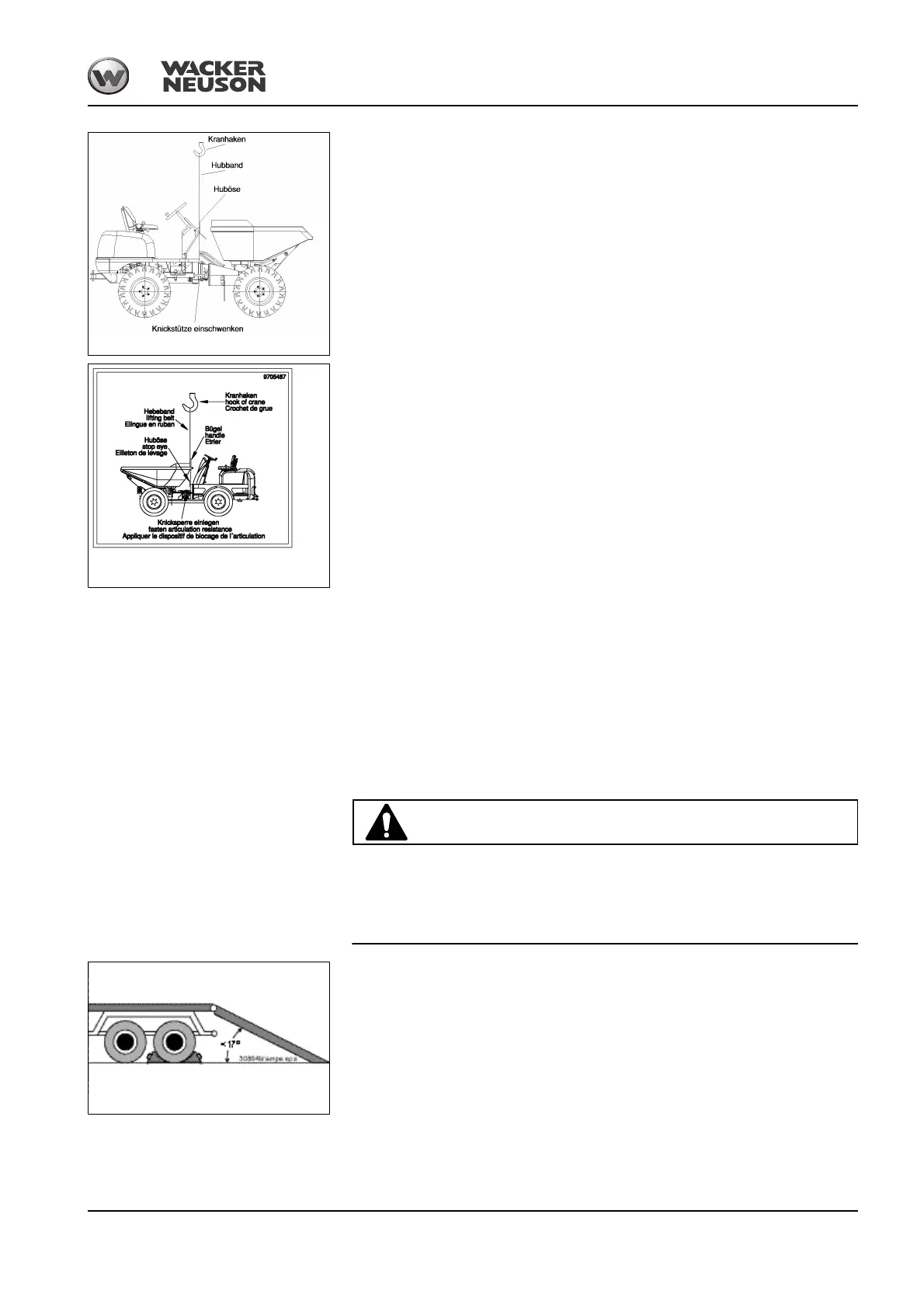

Raise the dumper by hitching the lifting gear onto the eyelet. Do not hitch the lifting gear
onto the handle.
• Fold in the center-pivot prop when raising the machine.
2001/2001 SLE
Raise the dumper by hitching the lifting gear onto the eyelet on the rear chassis and make
it go through the handle at the edge of the skip. Fold in the center-pivot prop when raising
the machine.
Loading and transporting the machine
Safety instructions
• The transport vehicle must be of adequate size. Dimensions and weights of machine: see
• Chapter 6 “Technical data (1001 – 1501)”
• and Chapter 6 “Technical data (2001)”.
• Remove any mud, snow or ice from the tires so that the machine can be safely traveled
onto the ramps
• Secure the machine against unintentional movement
– see Parking the machine on page 3-25!
Accident hazard due to incorrect loading!
Can cause severe injury or death.
• Follow the safety instructions at the beginning of this chapter and any other
safety instructions relevant in your country.
☞Load as follows:
• Secure the transport vehicle with chocks to prevent it from rolling
• Place the access ramps at the smallest possible angle. Ensure that the grade does
not exceed 17° (30 %). Use access ramps with an antiskid surface only.
• Ensure that the loading area is clear and access to it is not obstructed – by super-
structures, for example
• Ensure that the ramps and the tires of the dumper are free of oil, grease and ice
• Start the engine of the dumper
• Lower the skip of the dumper
• Carefully reverse the dumper onto the middle of the transport vehicle
