Maintenance
High-tip skip maintenance prop (1001/1501H)
Remove split pin B and pin C.
Slowly lower the lift frame until maintenance prop A is firmly in its position.
Swivel skip maintenance prop (1501S/option)
Remove split pin B and pin C.
Slowly lower the skip until maintenance prop A is firmly in its position.

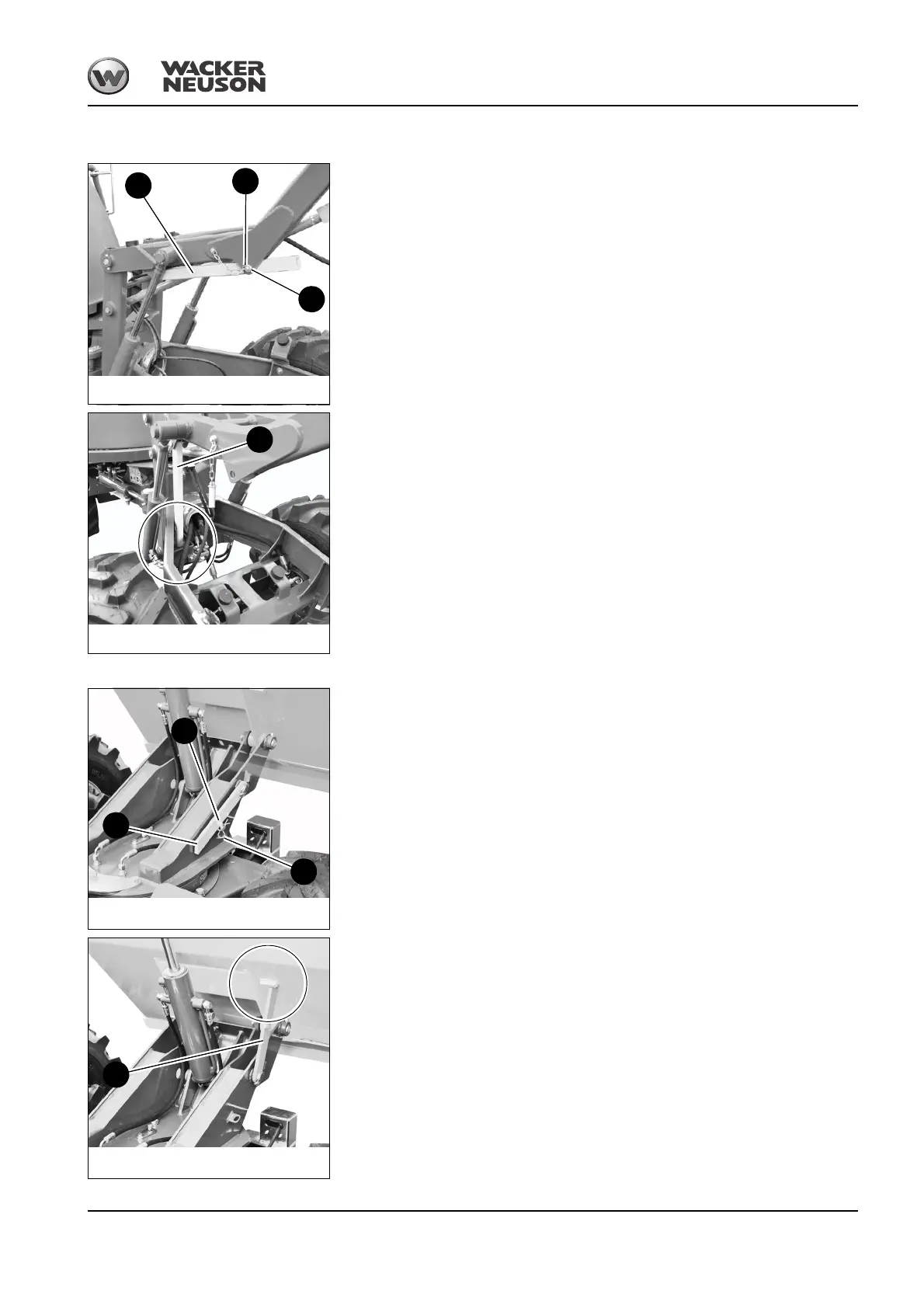

Fig. 71: High-tip skip maintenance prop 1001/1501H
A
B
C
Fig. 72: High-tip skip maintenance prop 1001/1501H
A
Fig. 73: Swivel skip maintenance prop 1501S
A
B
C
Fig. 74: Swivel skip maintenance prop 1501S
A
