Operation
Fasten control lever lock A with split pin B.
Locking the control levers (2001)
Fold back control lever lock A.
Fasten control lever lock A with split pin B.

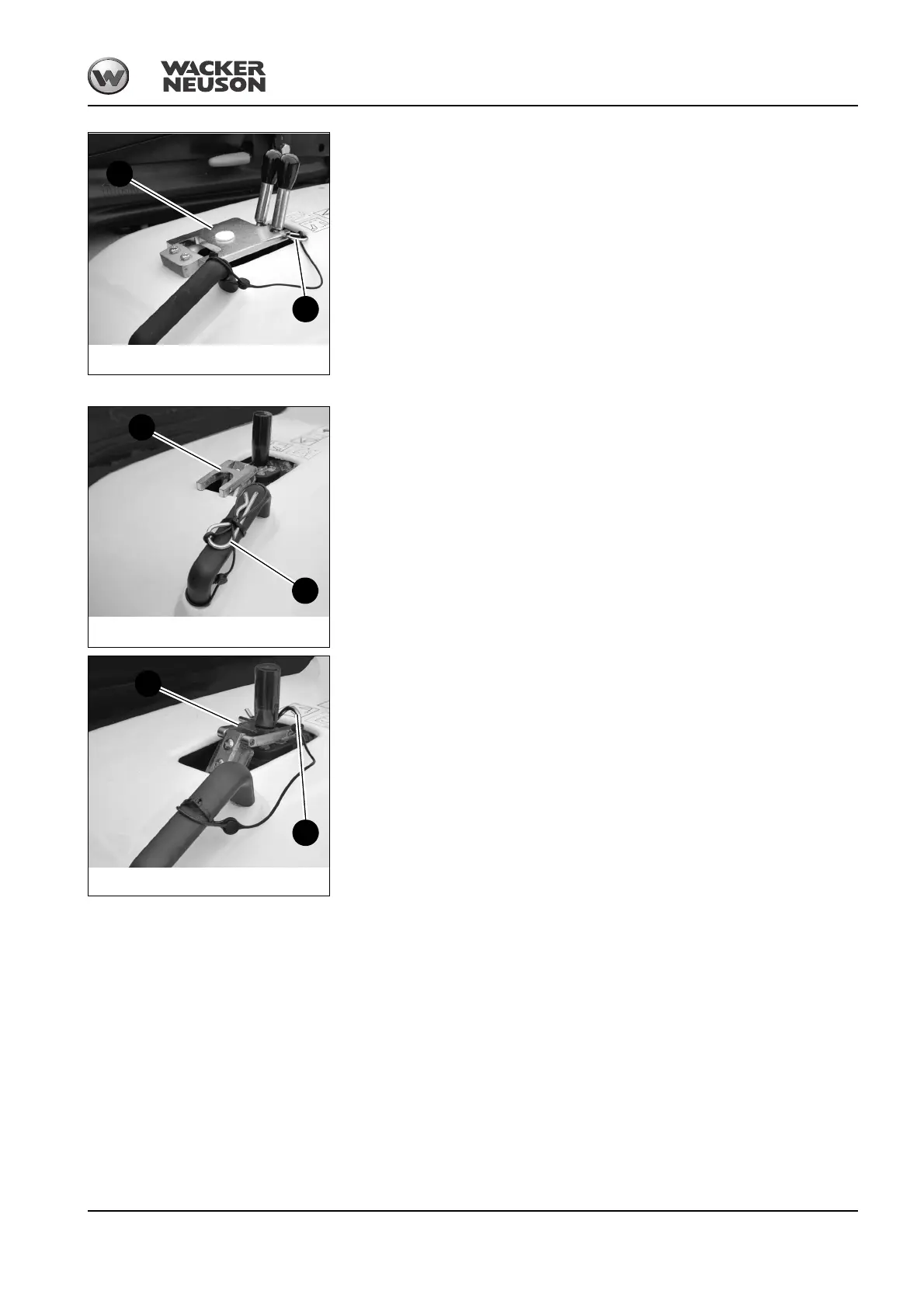

Fig. 63: Locking the control levers (1001/1501)
B
A
Fig. 64: Locking the control levers (2001)
B
A
Fig. 65: Locking the control levers (2001)
B
A
