BA 1001/1501/2001 us – Edition 3.3 * 12001b110.fm 1-9
Introduction
1.10 Type labels and component numbers
Serial number
The serial number is stamped on the machine chassis. It is also located on the type label.
The type label is located at the rear right of the control stand.
Type label information
Example: 1001
Model: 1001
Year: ---------------
PIN: (serial number) AB1001 ...
Power: ---------------
Mass: ---------------
Load: ---------------
Other information – see chapter 6 Technical data (1001 – 1501) on page 6-1
Engine number
The type label (arrow) is located on the cylinder-head cover of the engine.
Example: Yanmar 46557
Hydraulic pump number
The type label (arrow) is located on the hydraulic pump housing
Rollbar number
The type label is located on the left on the rollbar

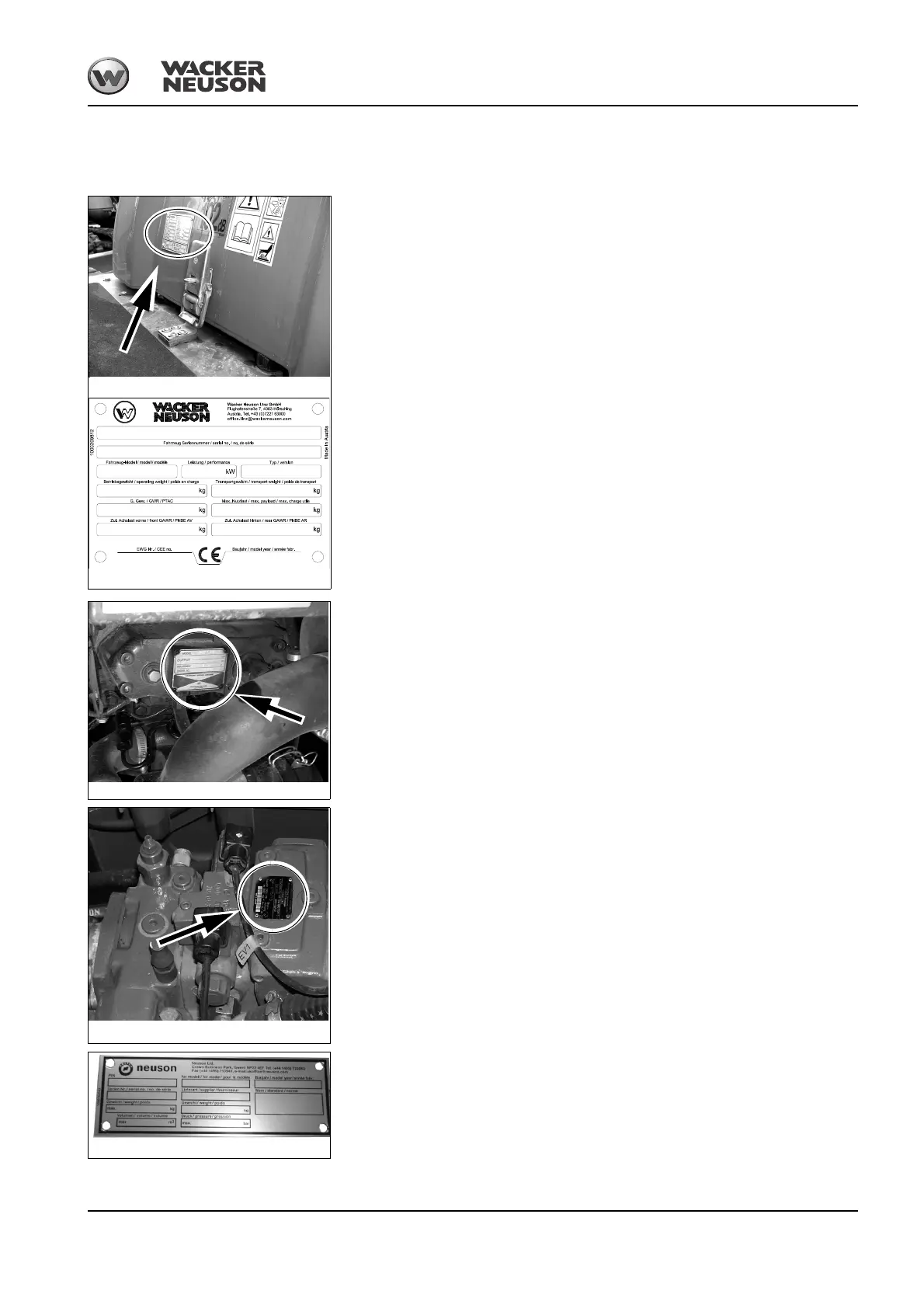

Fig. 1: Type label: location
Fig. 2: Type label (symbolic representation)
Fig. 3: Yanmar diesel engine number
Fig. 4: Number of variable displacement pump
Fig. 5: Rollbar type label
