Operation

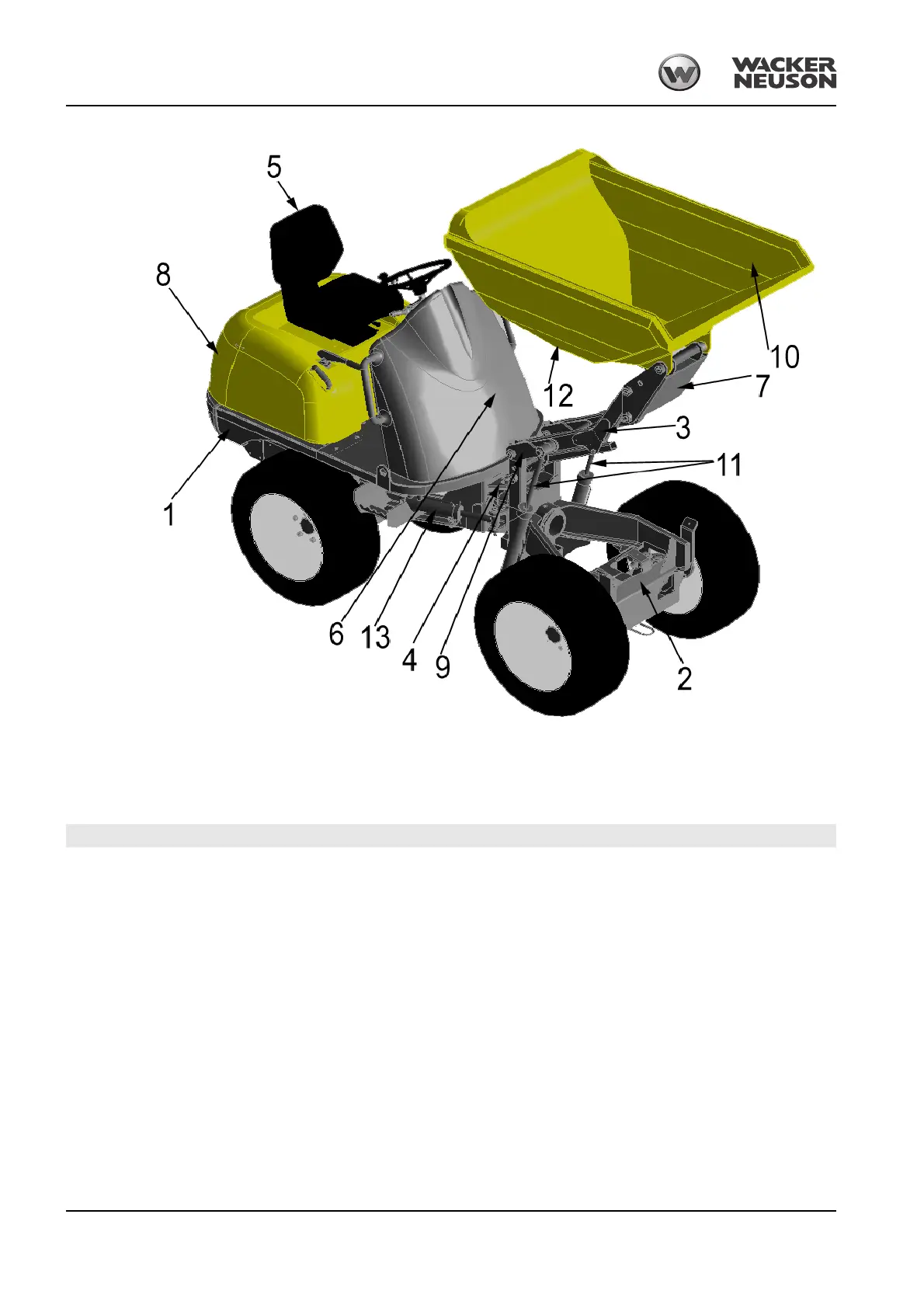

Description of 1001/1501 components (overview)
Pos.
Designation
1 Rear chassis
2Front chassis
3 Lift frame
4 Articulated joint
5 Operator seat
6 Control stand
7 Tilt console
8 Engine cover
9 Parallel lift
10 Skip
11
Lift cylinder
12
Tilt cylinder (not shown)
13
Steering cylinder
