Technical data (2001)
6.7 Loader unit
6.8 Travel specifications
6.9 Electrical system
Fuse box
The fuse box is located on the right under the engine cover.
Loader unit
Model 2001
Model 2001
(special skip)
Model 2001 SLE
Skip capacity
Struck
930 l (246 gal) 785 l (207 gal) 775 l (205 gal)
Heaped
1210 l (320 gal) 1000 l (264 gal) 1050 l (277 gal)
Liquid
capacity
680 l (180 gal) 570 l (151 gal) 550 l (145 gal)
Payload
2000 kg (4,409 lbs)
Steering system
Model 2001
Maximum speed
21 kph (13 mph)
Articulation
+/− 33°
Oscillation
+/− 15°
Outside turning radius
3500 mm (11'-6'')
Hill climbing ability
45 %
Safe authorized inclination
20 % in all directions
Electrical system
Alternator 12 V 40 A
Starter 12 V 1.7 kW
Battery 12 V 74 Ah

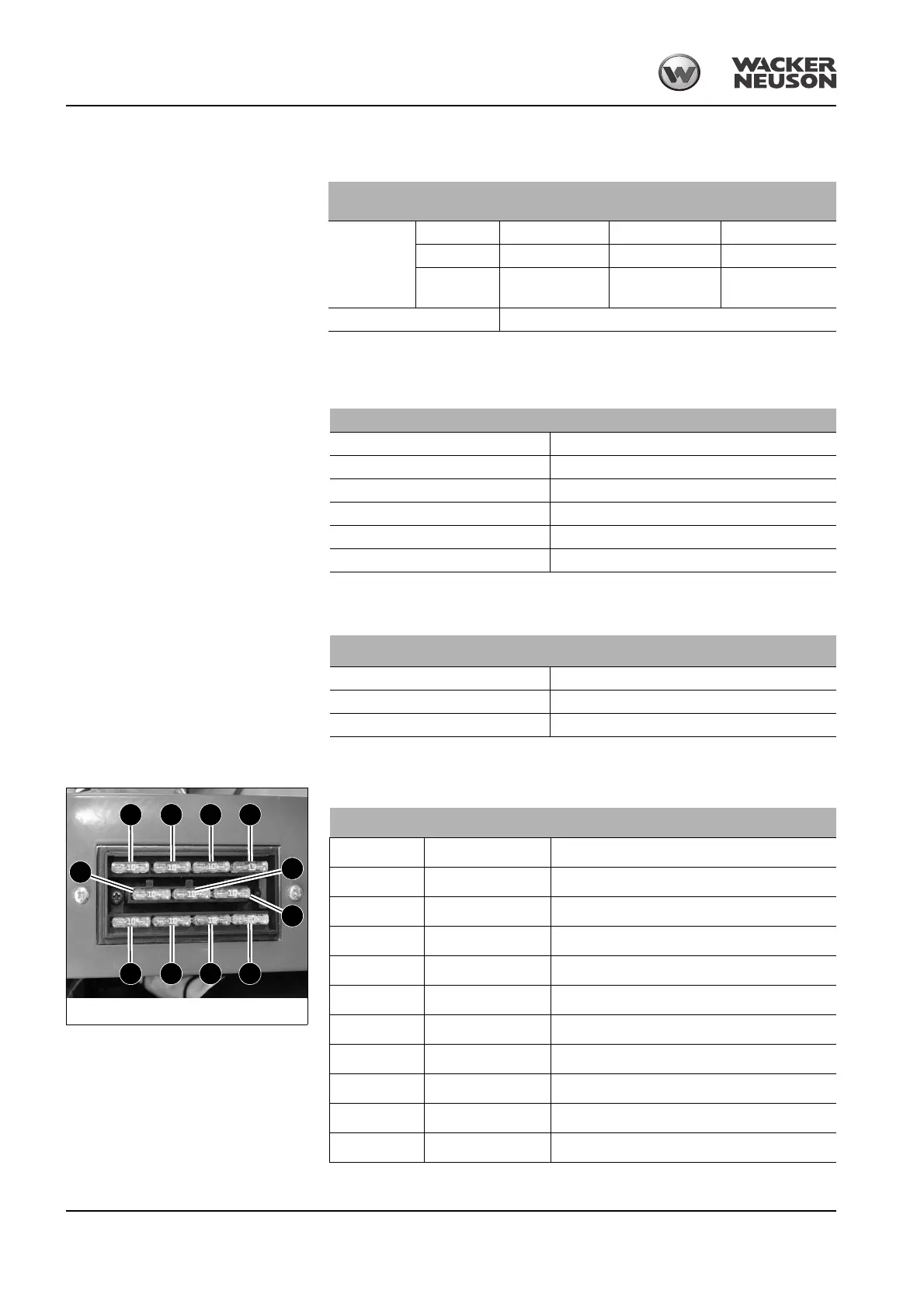

Fig. 110: Fuses 2001
3 4 5 6
7 8 9 10
11
13
12
Fuse number Rated current (A) Protected circuit
F3 10 A – Hazard warning system (switched plus)
F4 10 A – Clearance lights
F5 10 A – Low beam
F6 15 A – High beam
F7 10 A – Rotating beacon
F8 10 A – Traveling drive
F9 10 A – Cutoff solenoid
F10 20 A – 12 V/30
F11 10 A – Start clearance, fuel pump
F12 10 A – Horn, brake lights, brake valve
F13 10 A – Hazard warning system (permanent plus)
