Technical data (2001)
Relays
The relays are located in the relay box on the right under the engine cover.

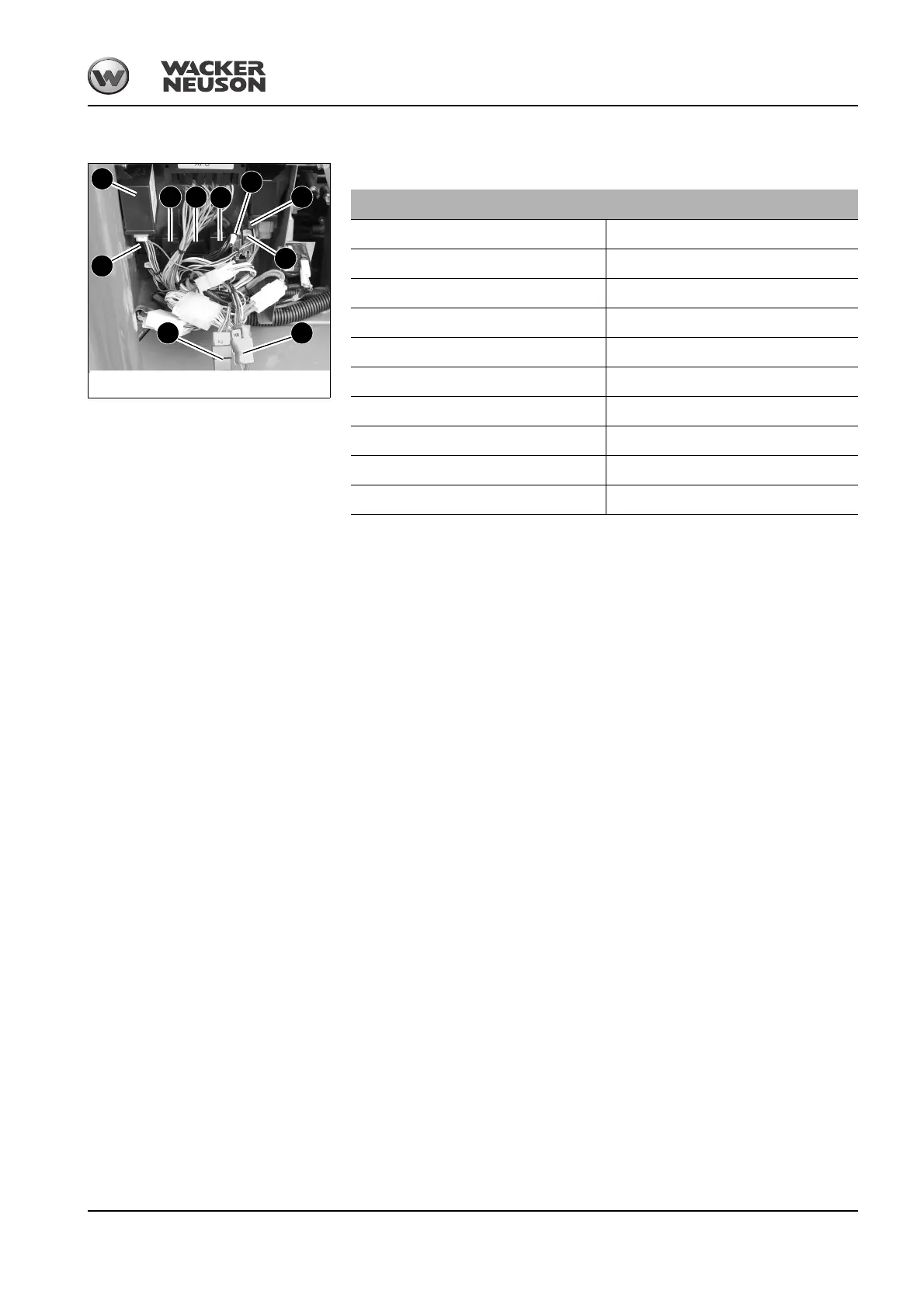

Fig. 111: Relay box 2001
4
5
6
87
3
1
2
10
9
Number Type Designation
1 F 1 Main fuse (50 A)
2 F 2 Main fuse (40 A)
3 K7.1 Start clearance relay
4 K29 No function
5 K10 Turn indicator relay
6 K9 Pull contact high current relay
7 K6 Preheating time lag relay
8 K8 Pull contact time lag relay
9 K7 Start high-current relay
10 D1 Diode box
