3-38 BA 1001/1501/2001 us – Edition 3.3 * * 12001b330.fm
Operation
3.27 Center-pivot prop
Crushing hazard if the skip is not supported correctly!
Can cause severe injury or death.
• Support the skip before performing maintenance.
The center-pivot prop connects the front and rear chassis to prevent steering movements
(via the articulated joint) when crane handling the dumper.
Proceed as follows:
☞Remove the spring plug from pin B
☞Turn center-pivot prop A toward the rear chassis
☞Secure center-pivot prop A with the spring plug and pin B
Before putting the machine into operation again, install the center-pivot prop
back onto the front chassis again by means of pin B.
3.28 Locking the control levers
Lock the control levers for the skip during road travel.
☞This avoids unintentional actuation of the skip.
Locking the control levers (1001/1501)
Fold back control lever lock A.

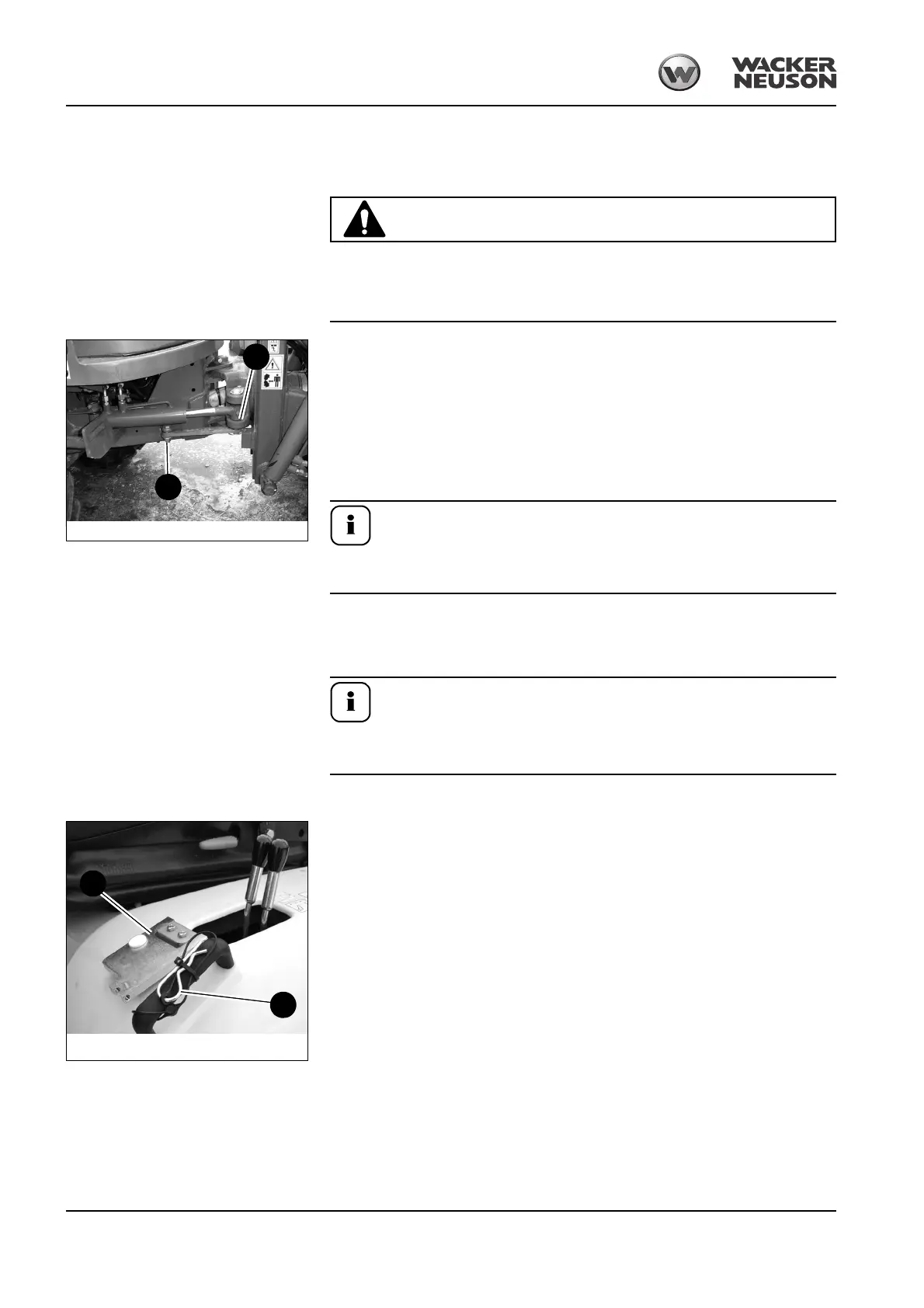

Fig. 61: Center-pivot prop
A
B
Fig. 62: Locking the control levers (1001/1501)
B
A
