Maintenance
Swivel skip maintenance prop 2001S
Remove split pin B and pin C.
Slowly lower the skip until maintenance prop A is firmly in its position.

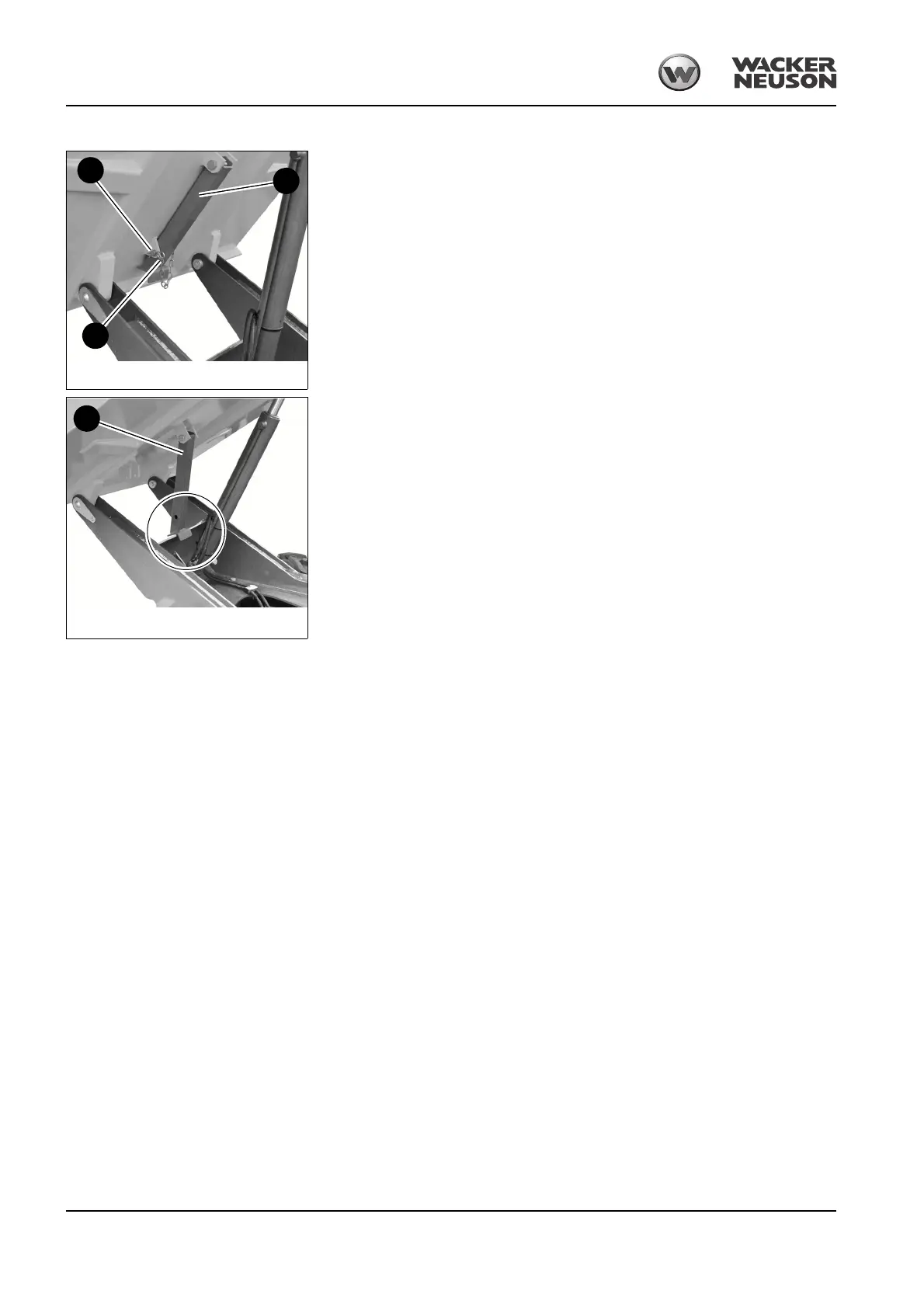

Fig. 75: Swivel skip maintenance prop 2001S
A
B
C
Fig. 76: Swivel skip maintenance prop 2001S
A
