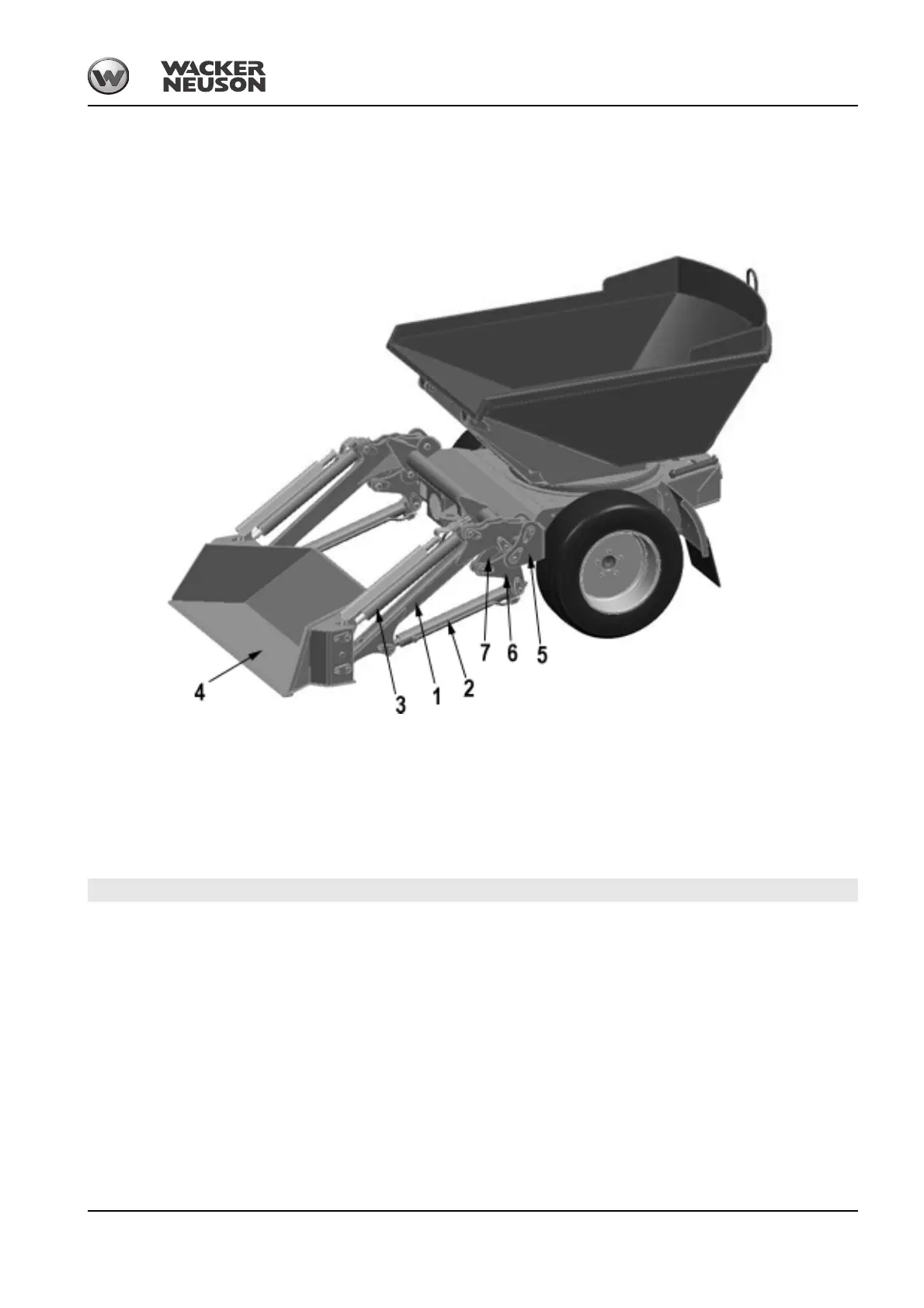

3.2 Description of 2001 SLE components
Pos.
Designation
1 Lift frame
2 Lift cylinder
3 Bucket cylinder
4Bucket
5 Fastening mount
6 Articulation (large)
7 Articulation (small)
