Operation

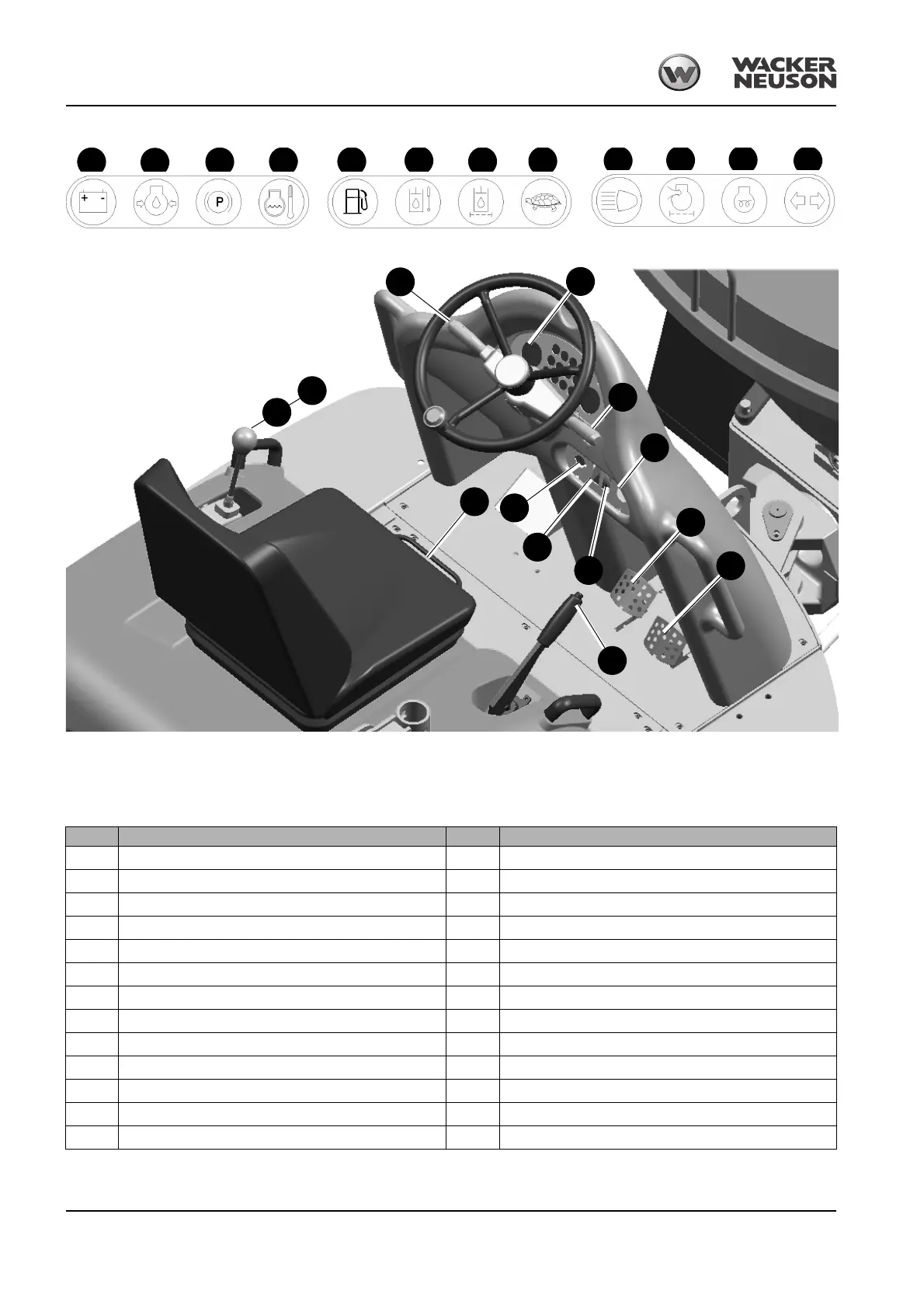

3.5 2001/2001SLE operating equipment
4
21
6
7
8
9 10
11
12
13
14
15
16
17
1st row of indicator lights 2nd row of indicator lights
3rd row of indicator lights
3
19
20
5
1
18
23
2
22
24
25
Pos. Designation Pos. Designation
1
Accelerator pedal
14
High beam indicator light
2
Parking brake
15
Not assigned
3
Preheating start switch
16
Preheating indicator light
4
Travel direction lever
17
Turn indicator light
5
Horn
18
Hour meter
6
Alternator charge function indicator light
19
Fuel level indicator
7
Engine oil pressure indicator light
20
Lever for tilting/lowering the skip
8
Parking brake indicator light
21
Lever: swivel skip
9
Engine temperature indicator light
22
Hydrostatic brake pedal
10
Spare fuel indicator light
23
Light switch
11
Not assigned
24
Seat adjustment lever
12
Hydraulic oil filter indicator light
25
Skip/loader unit switch (option 2001)
13
Not assigned
