3.17 Seat adjustment
Accident hazard! Do not change the seat position when trav-
eling or operating.
Can cause severe injury or death.
• Adjust the operator seat only at machine standstill and with the brake applied.
Weight adjustment
Adjust the seat suspension correctly to ensure an optimal level of ride comfort.
To adjust to a higher weight:
☞Turn the adjusting wheel to the right.
To adjust to a lower weight:
☞Turn the adjusting wheel to the left.
The specified weight is indicated by the yellow pointer next to the adjusting wheel.
Horizontal adjustment
☞Sit down on the seat
☞Pull lever 33 upward and at the same time.
☞Move the operator seat forward or backward.
Backrest adjustment
☞Pull lever 29 up and at the same time press against the backrest to move it to the
required position.
☞Let lever 29 lock into place.

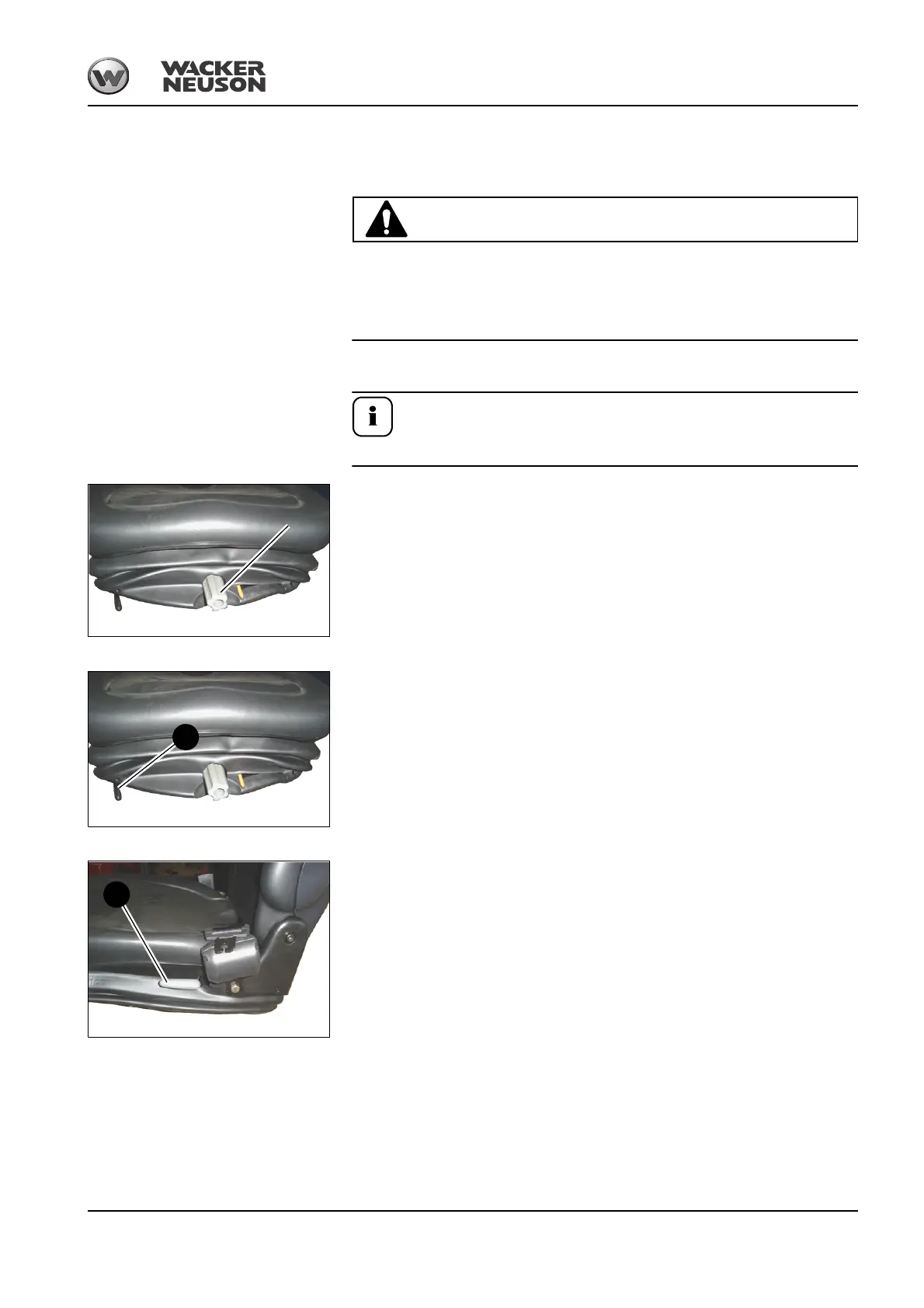

Fig. 43: Weight adjustment
Fig. 44: Horizontal seat adjustment
33
Fig. 45: Backrest adjustment
29
