Maintenance

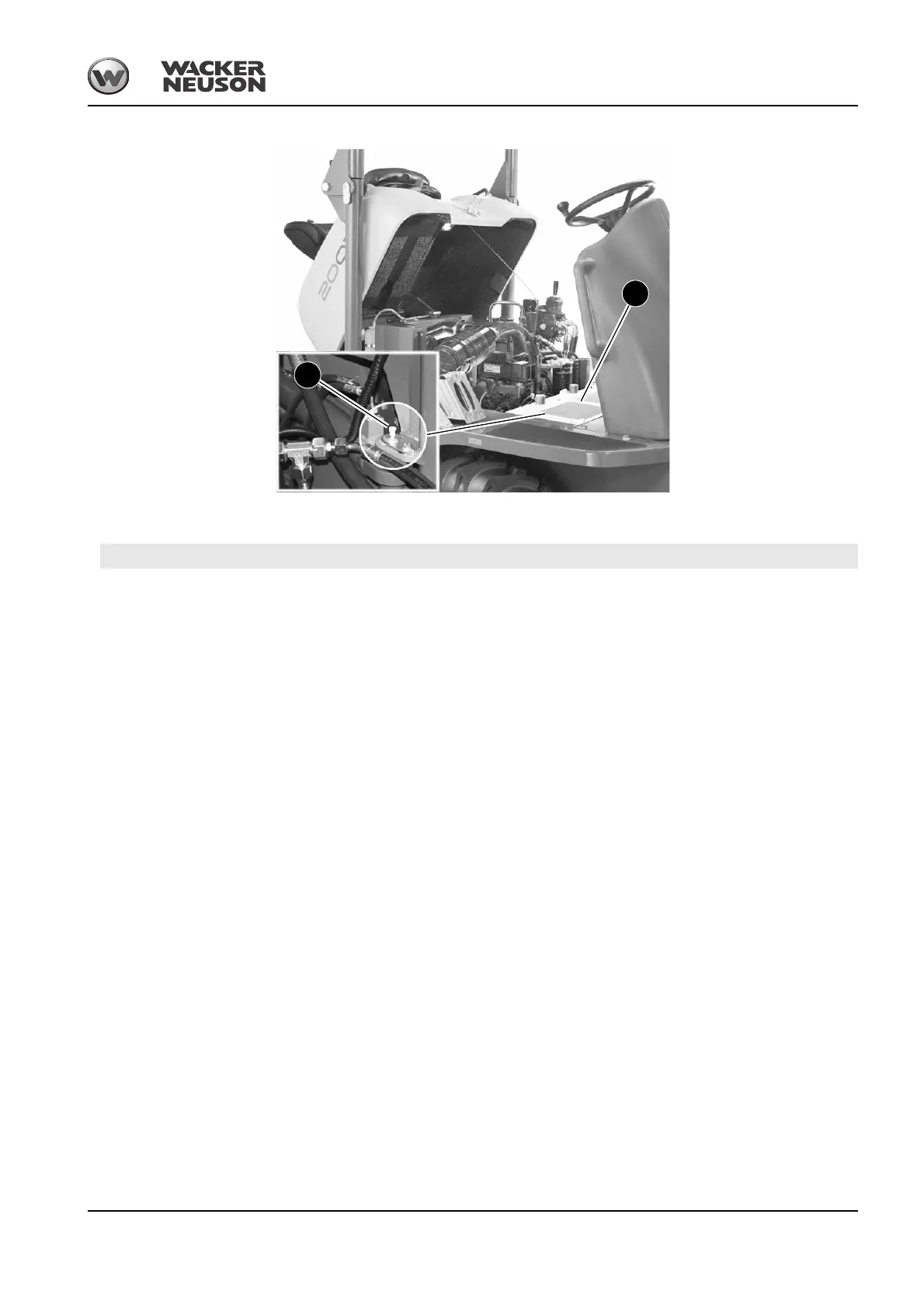

Grease nipple B is located under base plate A. Removing it requires opening the engine
cover first – see chapter Engine cover on page 3-29
Remove the screws of the base plate with a suitable tool and apply grease to grease nipple B
Pos.
Designation
Interval Quantity
1 Articulated joint
Daily 2
2 Swivel lock
Daily 2
3 Swiveling cylinder
Daily 4
4 Live ring
Daily 4
5 Tilt cylinder
Daily 1
6Skip
Daily 2
7 Steering cylinder (front)
Daily 1
8 Steering cylinder (grease nipple B)
Every 500 o/h or every 6 months 1
