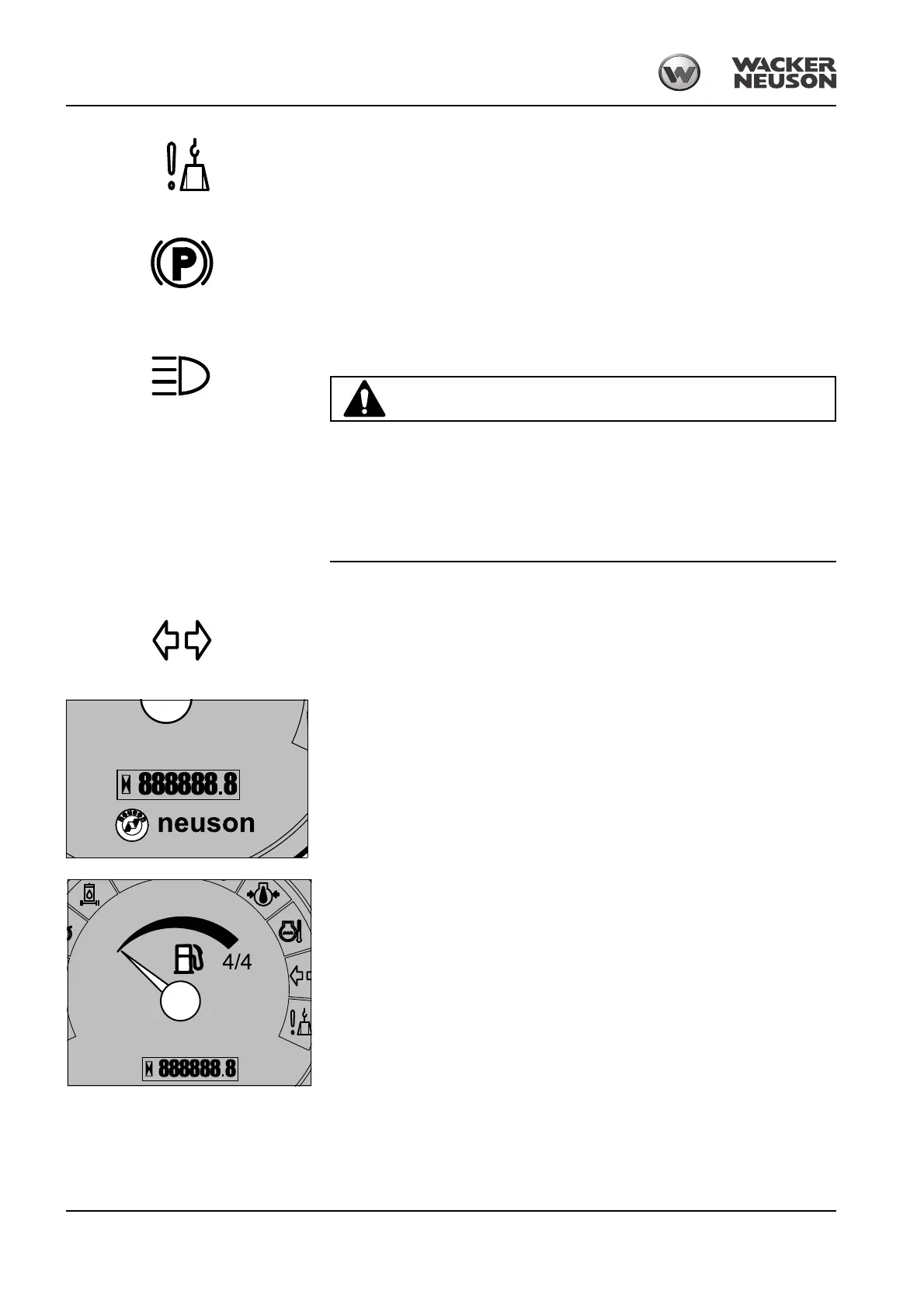

Operation
13 Not assigned
10 Indicator light (red) – parking brake
Illuminates if the parking brake is applied!
In this case:
☞Actuate lever 2 to release the parking brake
Indicator light (blue) – high beam
Illuminates if high beam is on.
Accident hazard! Motorists can be blinded by bright lights
on the job site.
Can cause severe injuries or death.
• Switch on low beam when other motorists are nearby.
• If this is not possible, stop machine operation and only resume it if sufficient
illumination of the job site can be ensured without blinding other motorists.
12 Indicator light (green) – turn indicators
Flashes if the turn indicators are switched on.
16 Hour meter
Counts the engine operating hours with the engine running.
17 Fuel level indicator
Refuel immediately if the fuel level indicator reaches minimum. Otherwise the fuel system
must be bled if it is run dry.
