5 Operation
Control lever (joystick) overview
Information
For safety reasons, lowering the loader unit with a host burst valve (opt) is
not possible when the machine is turned off
– see "Hose burst valve (partly opt)" on page 5-102!

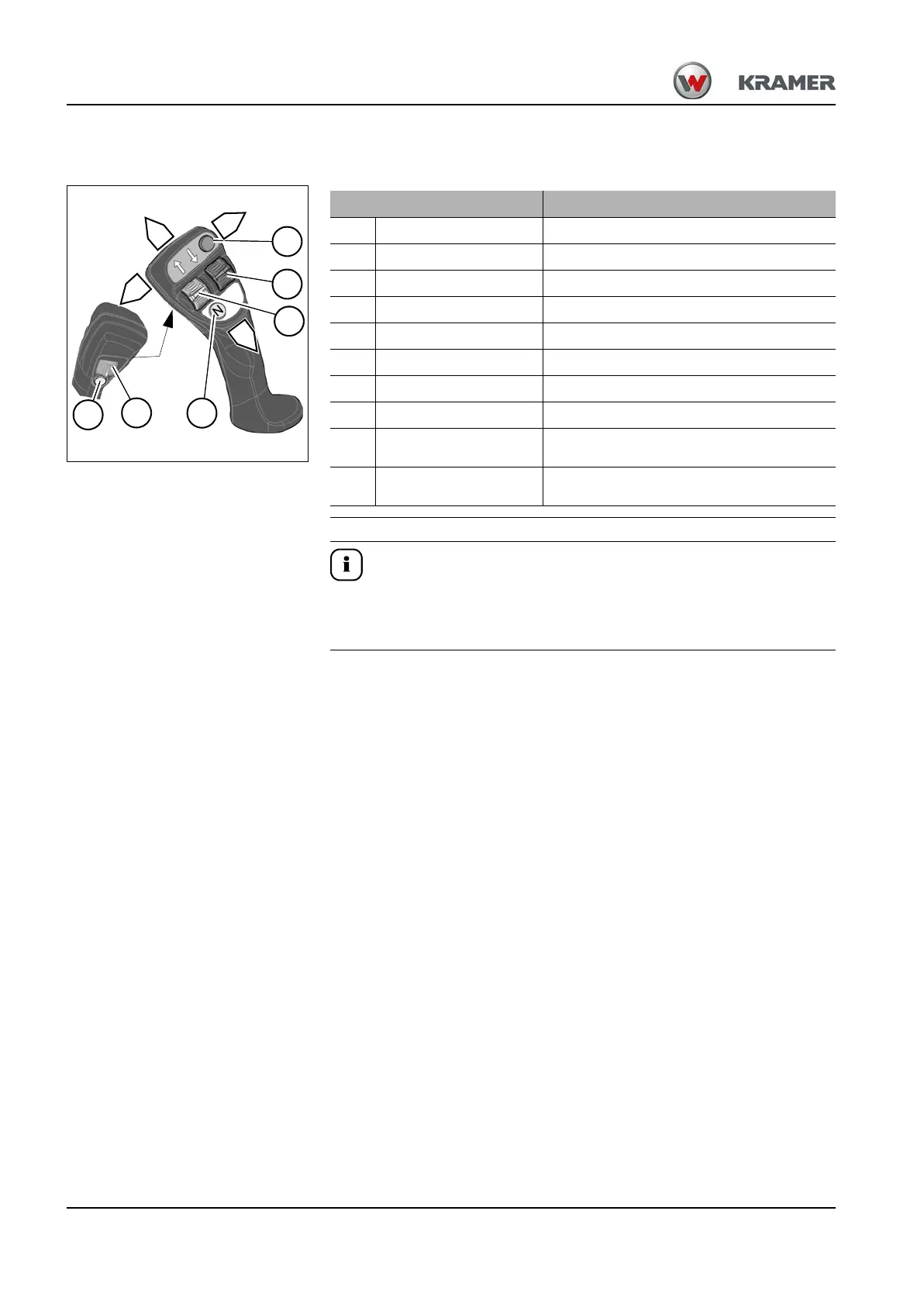

Fig. 124
A
C
B
D
53
54
52
51
55
56
Operation Function
A To the left ➥ Tilts in the attachment
B To the right ➥ Tilts out the attachment
C Forwards ➥ Lowering the loader unit
D Backward ➥ Raises the loader unit
53 Push button (opt) ➥ Extended function front socket
54 Switch (opt) ➥ No function
55 Switch ➥ Forwards/reverse driving direction
56 Push button ➥ Neutral driving direction
52 Switch
➥ 3rd control circuit for locking/unlocking
the quickhitch
51 Push button
➥ Differential lock activation/
deactivation
