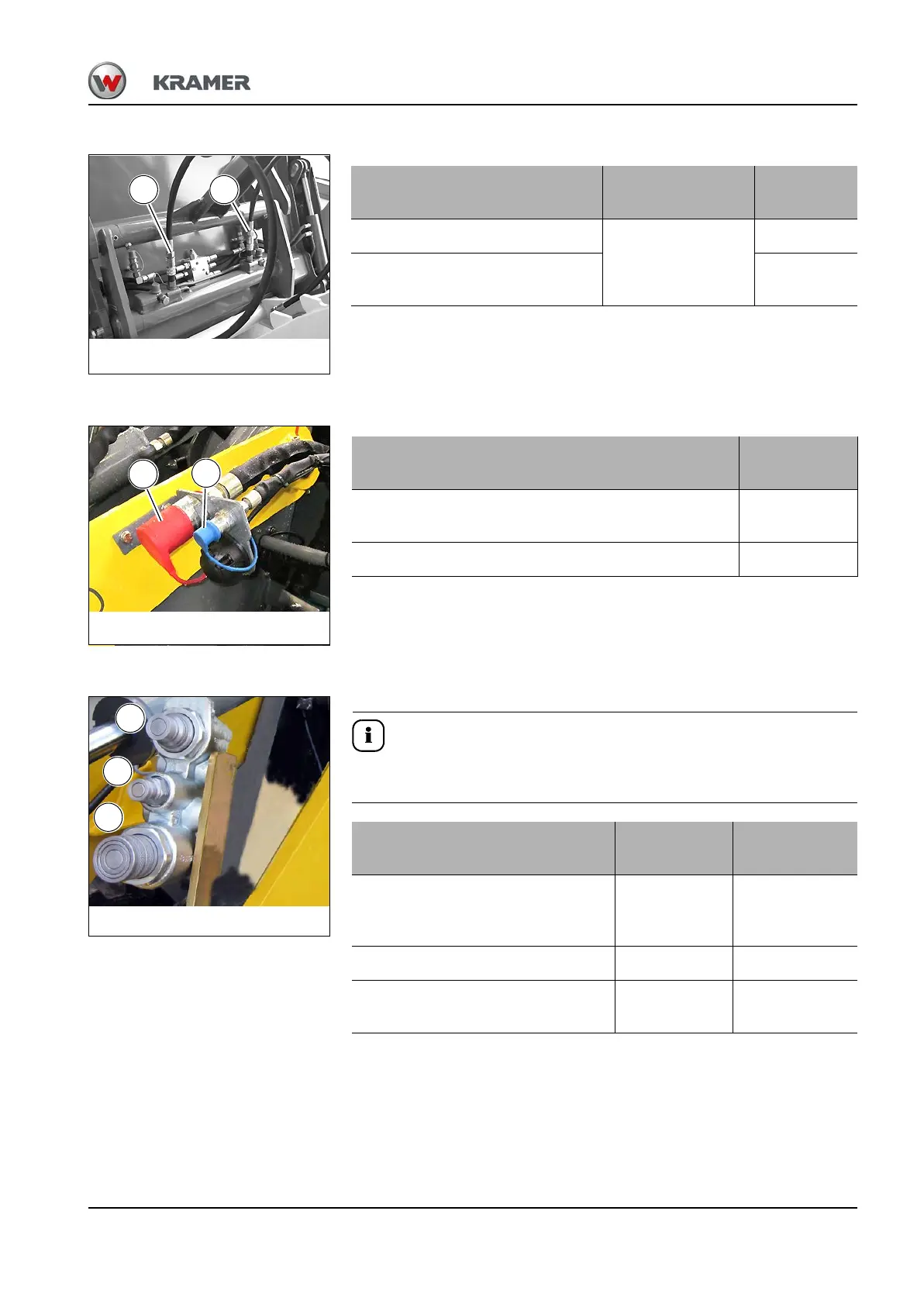

KRAMER quickhitch plug couplings
Plug coupling for leak oil line and return without pressure to the
reservoir (installed laterally on the loader unit [opt])
Plug couplings of 3rd control circuit (FASTER block) laterally on
loader unit (option)
Information
The 3rd control circuit (Faster block) (option)
is only possible in connection with the SKID STEER quickhitch!
Fig. 126
B A
Control circuits:
Hydraulic
connections:
Operation,
see page:
3rd control circuit
A + B
5-42
Continuous operation of 3rd control
circuit
5-44
Fig. 127
C
A
Control circuits:
Hydraulic
connections:
Front plug coupling
(return without pressure to reservoir)
A
plug coupling (leak oil line) C
Fig. 128
A
B
C
Control circuits:
Hydraulic
connections:
Operation, see
page:
Plug coupling (3rd control circuit,
permanent operation, return without
pressure)
A 5-46
plug coupling (leak oil line) B–
Plug coupling (3rd control circuit,
permanent operation – pressure)
C 5-46
