5 Operation

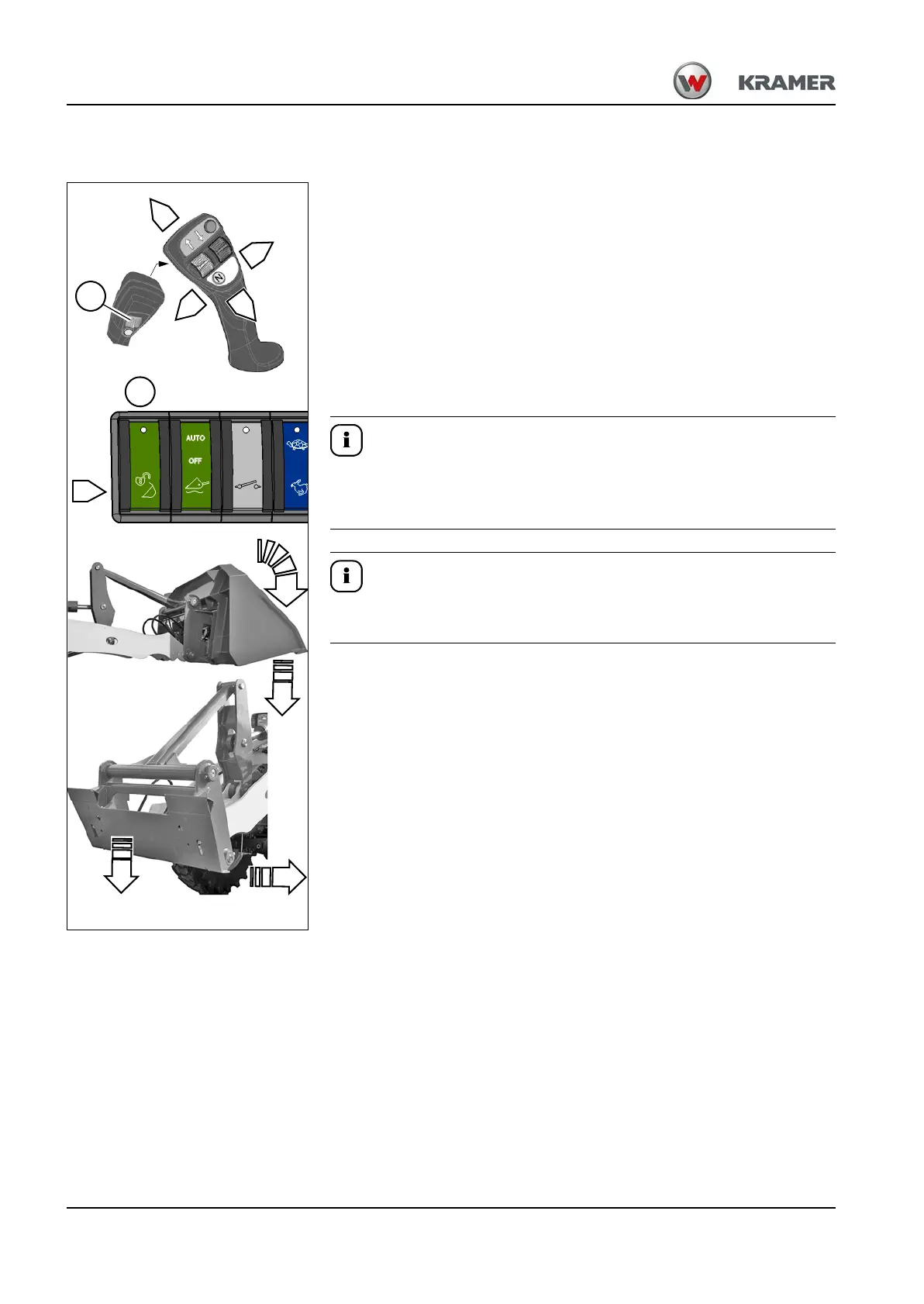

Removing an attachment from a SKID STEER quickhitch
1. Empty the attachment and drive it to the drop-off position.
2. Set the attachment parallel to the ground. To do this, press the joystick
to the left A.
3. Lower the loader unit until attachment is approx. 5 – 10 cm
(2 – 3.9 in) above the ground. To do this, push the joystick forward C.
4. Release the pressure in the hydraulic lines of the 3rd control circuit
– see "Pressure relief – plug couplings" on page 5-33.
5. Take the protective caps off the connections on the attachments.
6. Remove the flexible lines from the plug couplings of the quickhitch and
insert them into the plug couplings of the attachment.
7. Close the plug couplings on the quickhitch with protective caps.
Once it is locked, the attachment is secured against unintentional
unlocking. It can only be unlocked from the quickhitch by means of the
two-hand controls.
In order to avoid damage to the attachment lock, follow the order of
unlocking.
8. Unlock the attachment. To do this, press and hold the touch button 59
in the position B.
9. Press the rocker switch 52 on the joystick to the right at the same time
until the lock pins fully come out of the center bores of the attachment.
10.Release switch 52 on the joystick.
11.Release button 59.
12.Slightly tilt the attachment forward.
To do this, press the joystick to the right B.
13.Lower the loader unit. To do this: push the joystick forward C until the
attachment is on the ground without risk of falling over.
14.Reverse the machine away from the attachment.
