4 Putting into operation
4-32 BA 357-00 * 3.0 * 35700_04_Inbetriebnahme_02_a3.fm

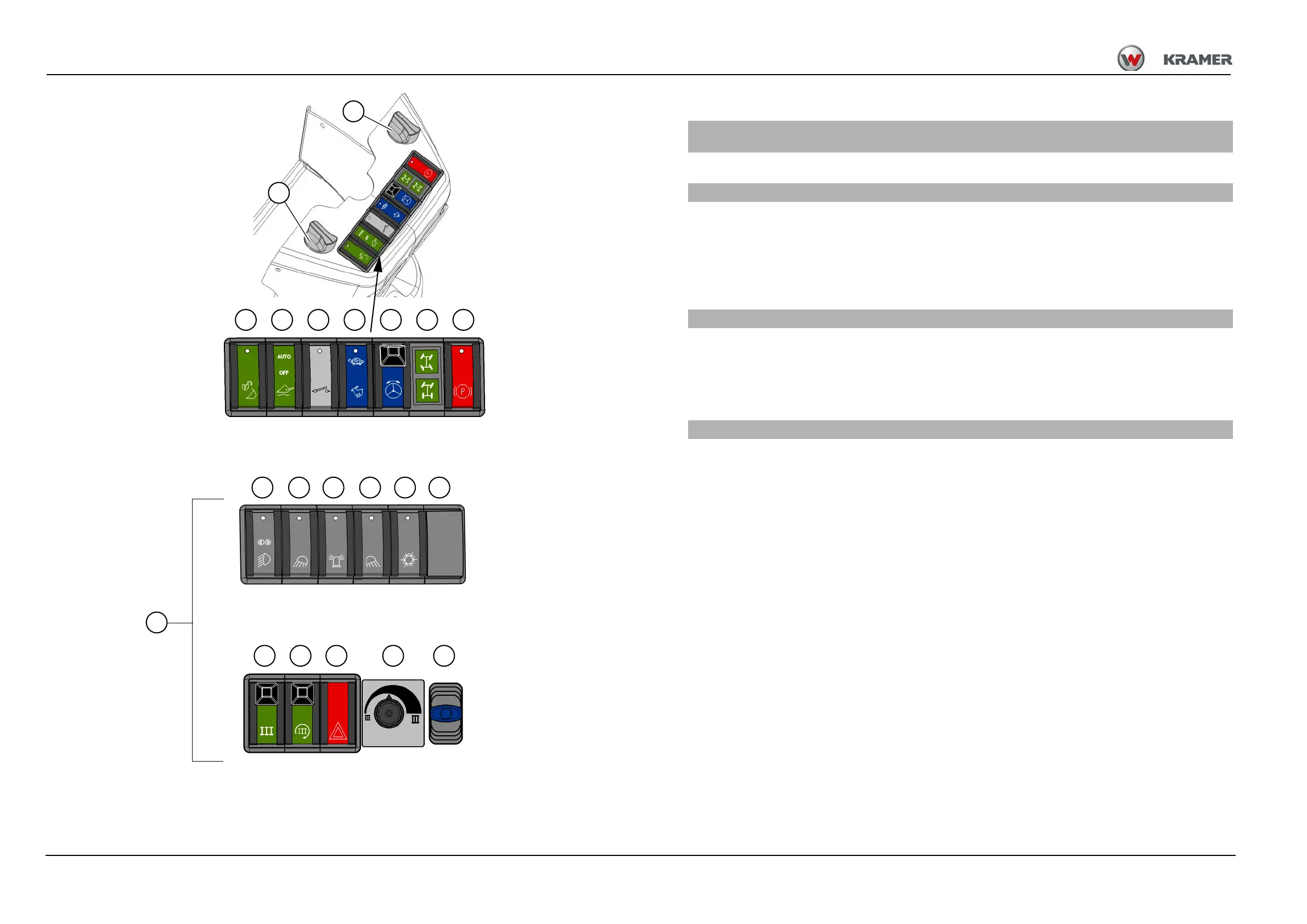

Switch panels
Heating/ventilation switch console - Ventilation (optional cabin coupling)
For more information see page
57 Rotary switch – heating temperature control............................................................................................5-27
58 Rotary switch – warm air fan (heating, ventilation) ..................................................................................5-27
Switch panel on front instrument panel For more information see page
59 Rocker switch (green) – release quickhitch unlocking mechanism..........................................................5-42
60 Rocker switch (green) – load stabilizer (optional) ..................................................................................5-108
61 Rocker switch (gray) – 7-pole front socket ............................................................................................5-106
62 Rocker switch (blue) – speed range selection .........................................................................................5-12
63 Toggle switch with lock (blue) – 4-wheel front axle steering (opt)..............................................................5-2
64 Indicator light (green) – 4-wheel steering/front axle steering (opt).............................................................5-2
65 Toggle switch (red) – parking brake...........................................................................................................5-6
Front switch panel (A) in the console – control lever. For more information see page
66 Rocker switch (gray) – machine headlights (parking light / low beam) ....................................................5-19
67 Rocker switch (gray) – front working light (option) ...................................................................................5-23
68 Rocker switch (gray) – rotating beacon (option) ......................................................................................5-24
69 Rocker switch (gray) – rear working light (standard on left, option on right) ............................................5-23
70 Rocker switch (gray) – air conditioning (option) .......................................................................................5-29
71 Not assigned
Rear switch panel (B) on console – control lever For more information see page
72 Rocker switch with lock (green) – locking/unlocking the 3rd control circuit..............................................5-42
73 Rocker switch with lock (green) – continuous operation of 3rd control circuit..........................................5-44
74 Rocker switch (red) – hazard warning system ........................................................................................5-22
75 Rotary switch – oil volume adjustment.....................................................................................................5-36
76 Joystick (blue) – low-speed control (option)...........................................................................................5-103
58
59 61 63 64 65
57
60
Fig. 79
7169686766 70
72 73 74 75 76
A
B
62
16
