4 Putting into operation
4-28 BA 357-00 * 3.0 * 35700_04_Inbetriebnahme_02_a3.fm

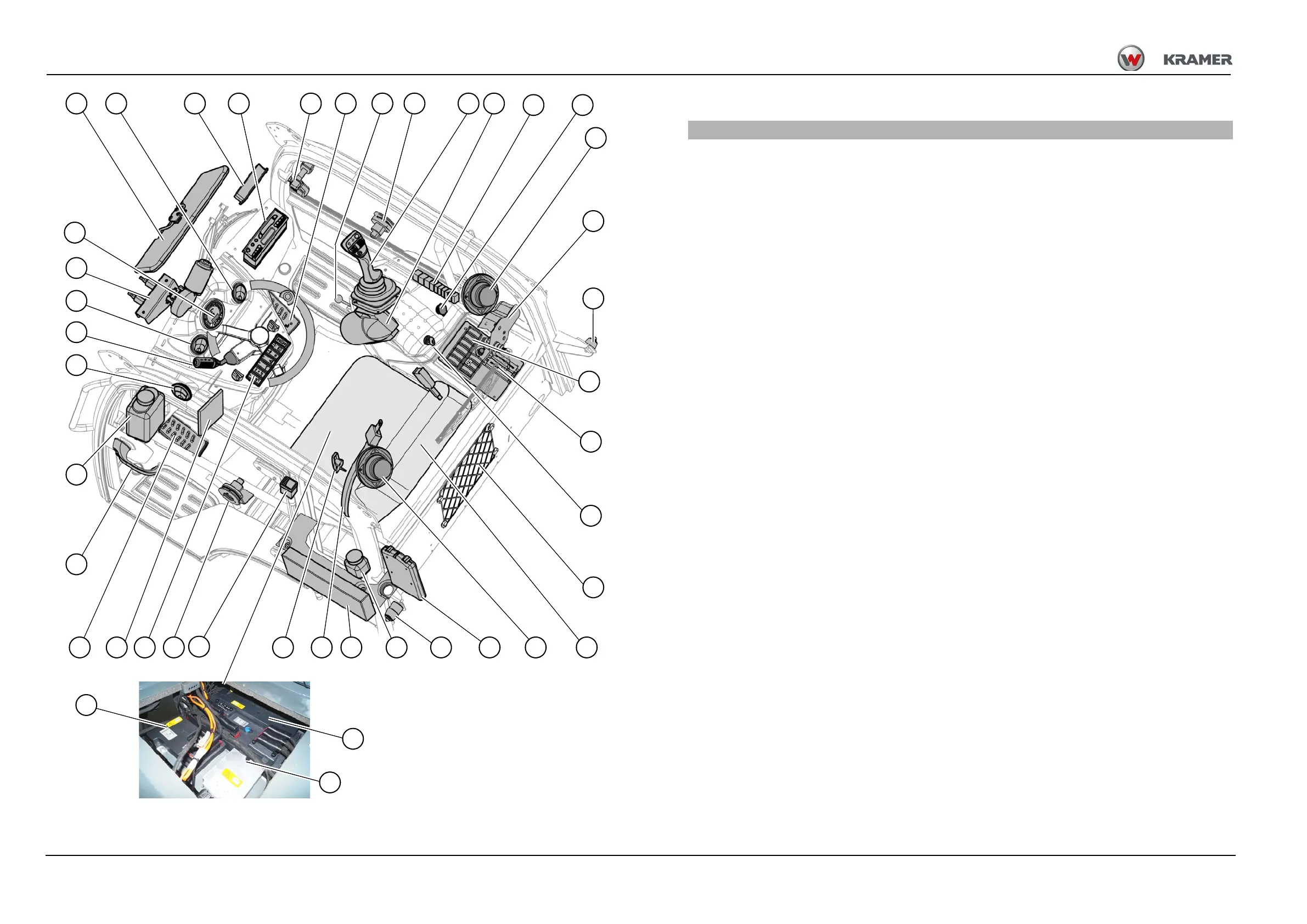

Inside the cabin
,
Inside of cabin (overview) For more information see page
1 Sun visor
2 Front window air vents (left/right)
3 Interior light ..............................................................................................................................................5-24
4 Radio (opt) see the Operator’s Manual of the radio for information on operation
5 Locking – side window
1
............................................................................................................................. 4-4
1. only in the cabin cpl. (opt)
6 Accelerator pedal ...................................................................................................................................... 5-4
7 Loader unit lock for road travel.................................................................................................................4-51
8 Locking for opened side window / door
1
...................................................................................................4-4
9 Control lever/joystick (loader unit)............................................................................................................5-32
10 Fire extinguisher (optional).......................................................................................................................4-22
11 Bracket with relays ...................................................................................................................................9-13
12 12 V socket
13 Radio preparation – loudspeakers (opt)
14 Wiper motor – rear window
1
.....................................................................................................................5-26
15 Arrester for open side window/door
1
......................................................................................................... 4-4
16 Switch bar in the control lever console.....................................................................................................4-32
17 Fuses ............................................................................................................................................. 7-65, 9-11
18 Ignition lock ..............................................................................................................................................4-54
19 Storage net for documents
20 Operator seat, foldable...............................................................................................................................4-7
21 Document box (opt)
1
22 ATF brake fluid reservoir..........................................................................................................................7-75
23 Storage – first-aid kit, warning triangle, tool bag, etc.(opt)
24 Seat belt ...................................................................................................................................................4-14
25 Hook
26 Power electronics/machine controller
27 Voltage converter 80 V => 12 V
28 StVZO module (machine control)
29 Motor isolating switch ..............................................................................................................................4-22
30 Switch panel on front instrument panel ....................................................................................................4-32
31 Fresh-air filter – heating and ventilation
1
.................................................................................................5-27
32 Brake pedal................................................................................................................................................5-5
33 Door handle with lock...............................................................................................................................
1
4-2
34 Washer system reservoir
1
........................................................................................................................7-72
35 Multifunctional lever – turn indicators, wipers
1
, horn................................................................................5-21
36 Wiper motor – front window
1
...................................................................................................................5-26
37 Display instrument....................................................................................................................................4-30
1 2 3 5 6 7 8 9 10
11
13
12
17
18
19
201321152223242583132
33
34
2
35
2
36
15
Fig. 77
4
26
27
28
14
29
30
16
37
