Putting into operation 4

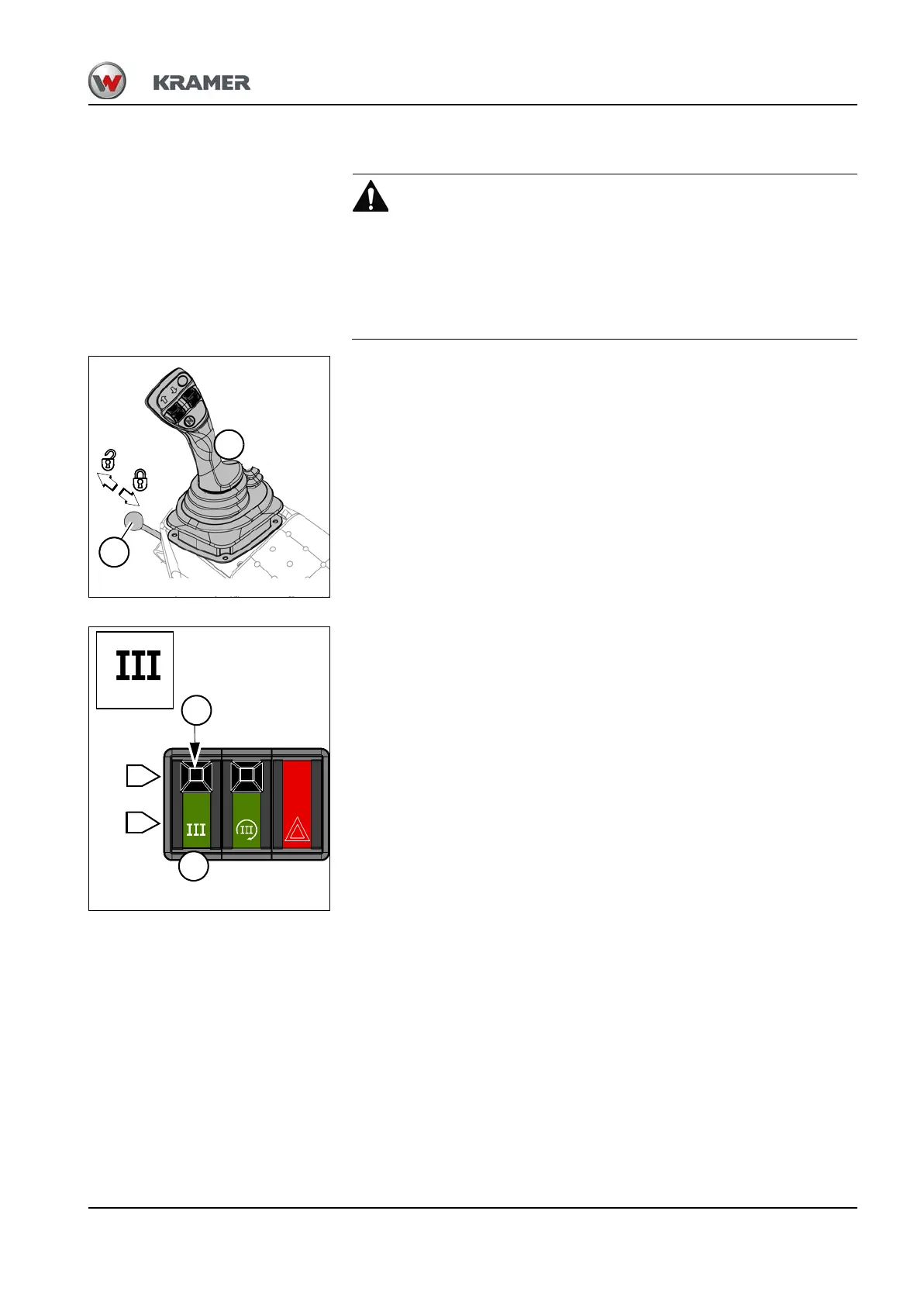

Locking/unlocking the control lever (joystick)
Accident hazard due to unintentional loader unit operation!
Uncontrolled movements of the loader unit can cause serious injury or
death during machine travel on public roads.
► Secure the joystick against unintentional actuation before performing
machine travel on public roads.
Secure
1. Set the control lever (joystick) 9 to neutral (middle position).
2. Pull the lock lever 7 forwards out of the control lever
console as far as possible.
➥ Control lever (joystick) 9 is secured and can
no longer be moved.
Unlocking
1. Push the lock lever 7 backwards as far as it will
go into the control lever console.
➥ Joystick (loader unit) 9 can be operated.
Locking/unlocking the 3rd control circuit
Secure
1. Slide lock C in the toggle switch 72 downward and at the same time
press the toggle switch to position A.
➥ Indicator display C/1 in the digital display extinguishes in the gauge.
➥ The 3rd control circuit is locked.
Unlocking
1. Slide lock C on switch 72 downward and at the same time press the
switch to position B.
➥ Indicator display C/1 in the digital display illuminates in the
indicating instrument.
➥ 3rd control circuit is unlocked.
