Adjusting the fork arms of the pallet forks
Accident hazard if the fork arms are not correctly locked
on the fork frame!
The fork arms can come off and cause serious injury or death.
► Check before working whether locking levers A on both fork arms are
folded down and safely engaged in the fork frame!
► Adjust the fork arms centrally with regard to the fork frame.
► Check whether safety screws D on either side on the upper slide rail of
the fork frame are not damaged and whether they are firmly screwed.
Crushing hazard when shifting the fork arms!
Fingers and hands can be crushed and injured between the fork frame
and fork arms.
► Do not touch the sliding surface of the fork frame
when shifting the fork arms.
► Wear protective gloves.

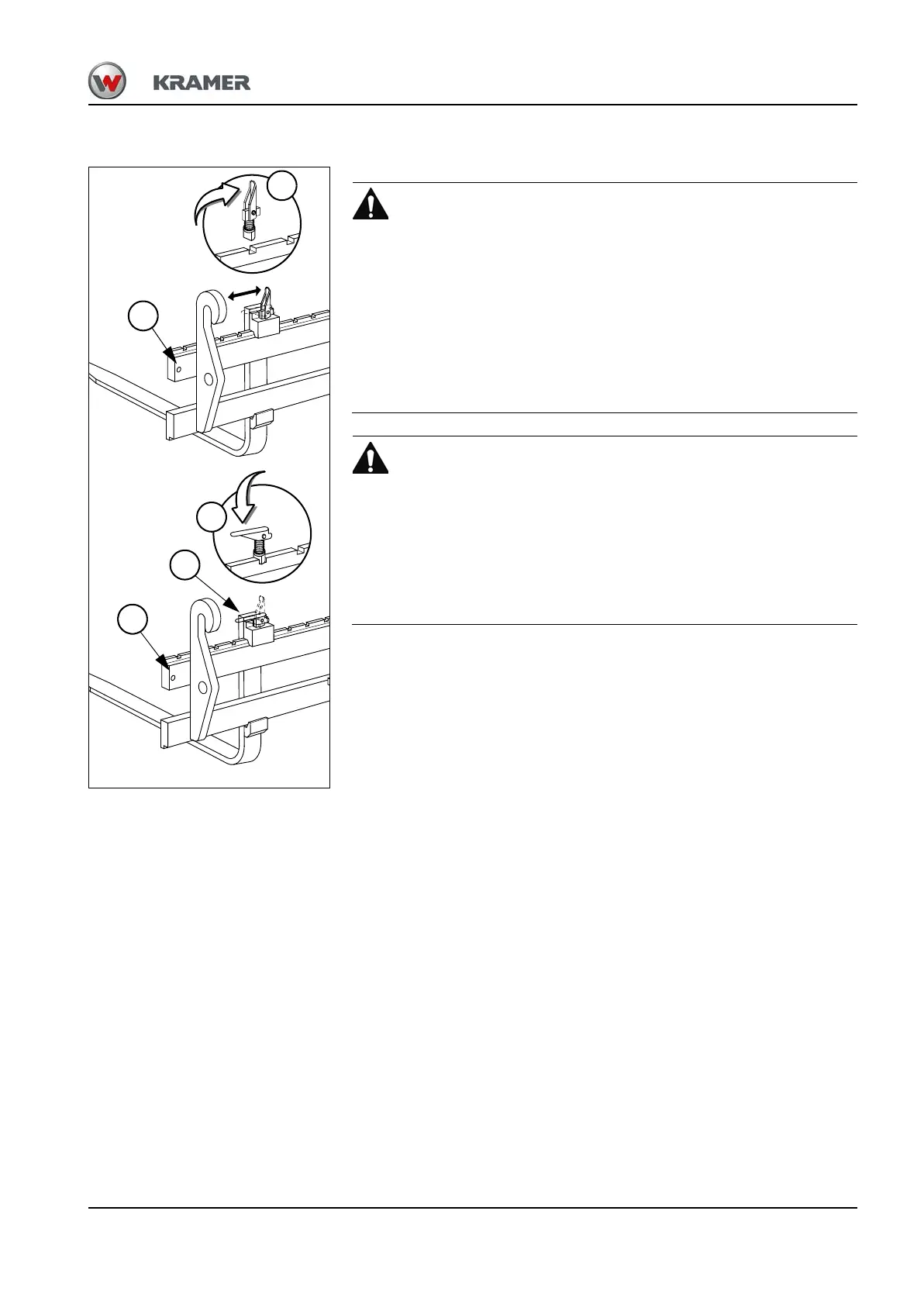

1. Set the locking lever to the vertical position (position A).
2. Slide the fork arms to the required distance until the locking pin
engages in a slot on the fork frame.
3. Fold down the locking lever (pos. B).
➥ The upper edge of the locking lever must be flush with the edge C.
➥ Also refer to the Operator’s Manual of the pallet forks.
