Picking up a load
Tipping hazard of machine due to failure to pay attention to the load
diagram!
Can cause serious injury or death.
► Observe the payloads specified in the load diagram.
To guarantee that the load can be picked up with precision,
switch off the load stabilizer (opt)!
1. Move the machine up to the load so that the pallet
forks or the fork arms are at a right angle to the load.
➥ The fork arms must be the furthest possible apart,
and at an equal distance from the left and right side of the load.
2. Drive the vehicle forward. Drive the machine forward and move the
fork arms as far as possible underneath the pallet until the material
touches the fork frame.
3. Raise the load carefully and tilt it in slightly.
4. Reverse carefully until the loader unit can be
lowered to transport position.
5. In transport position, lower the loader unit as far as possible.
6. Reverse slowly from the material.

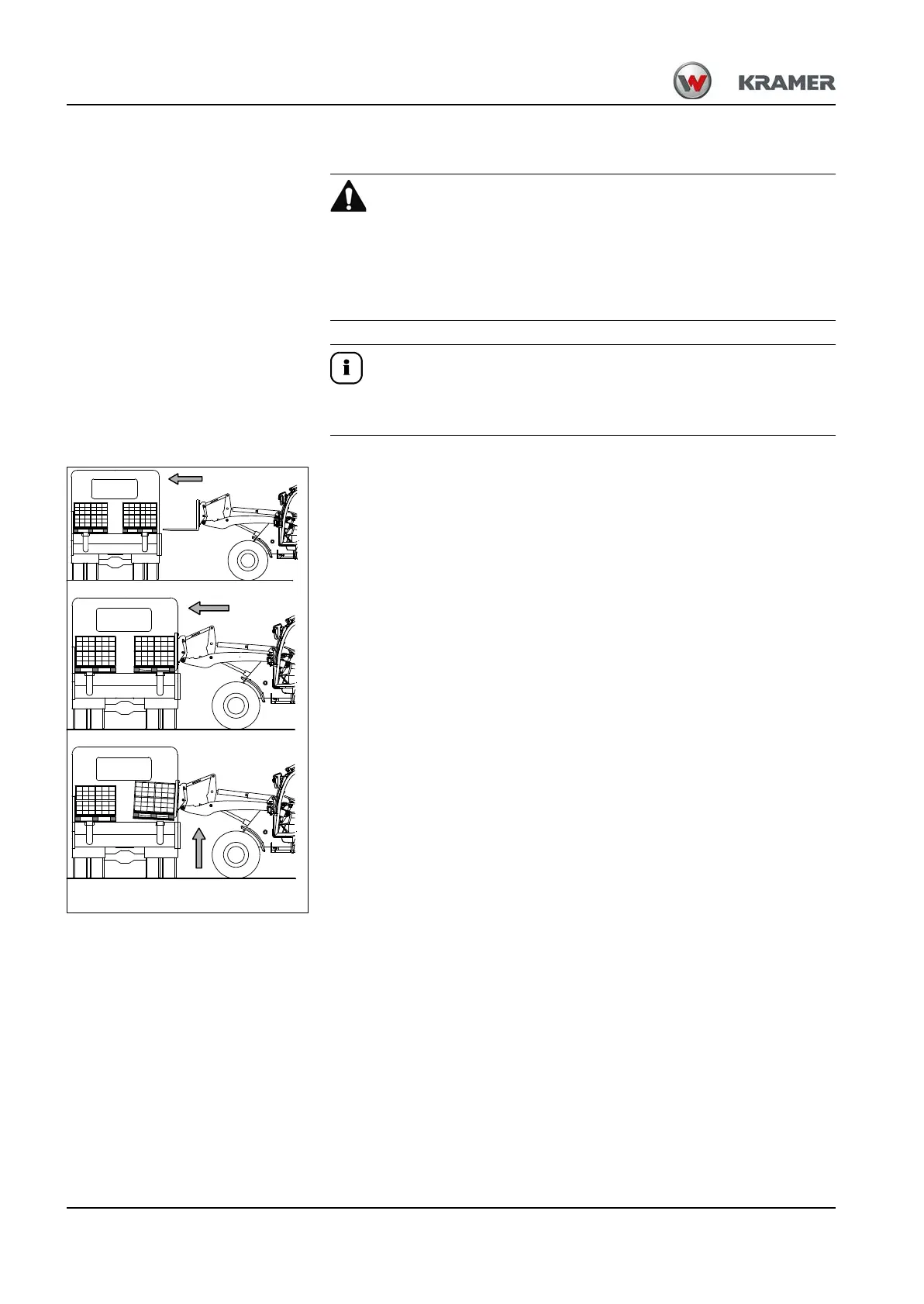

Fig. 187
