5 Operation
Transporting material
• Move the load only when it is safely placed on the fork arms.
• Start, turn and stop smoothly.
• Concentrate on your work, avoid distractions.
• When moving and transporting loads, always tilt it slightly back toward
the machine and raise or lower it to transport position
(bear in mind the ground clearance).
• Always perform machine travel slowly in off-road applications, to avoid
strong swinging movements of the load.
• On slopes, the load must be on the uphill side
of the machine/attachment.
• Drive the machine backward on sloping terrain to prevent the load from
falling off and the machine from tilting forward when braking.
• When transporting large bulk loads drive the
machine backward for improved visibility.

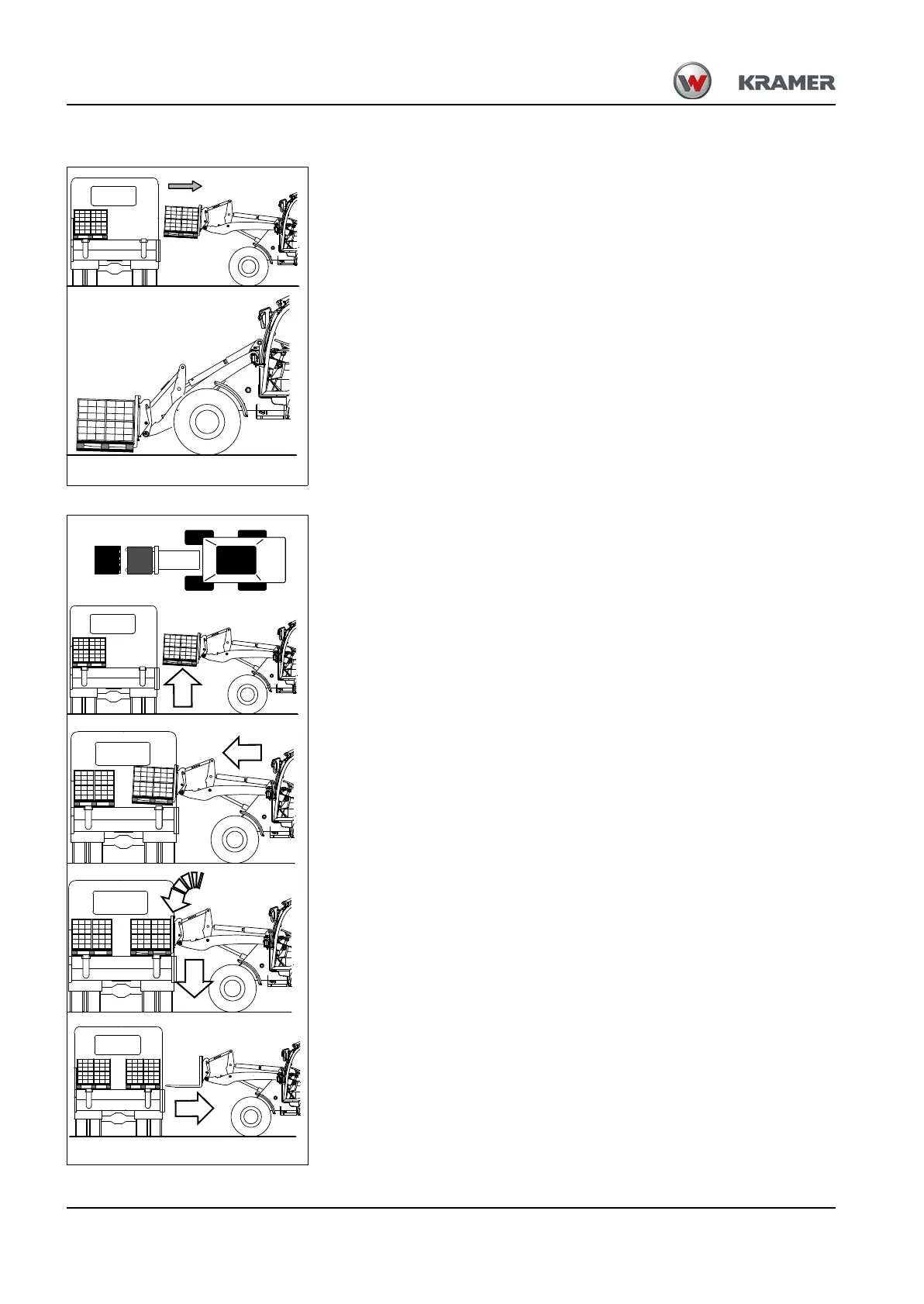

Setting down a load
1. With the material in transport position, approach the deposit location
from the front (e.g. stack or loading area)
so that the material is in the middle of the deposit location.
2. Raise the loader unit until the load is located over the deposit location.
3. Drive the machine slowly forward until the load is located exactly over
the deposit location.
4. Raise the inclination of the fork arms.
5. Lower the loader unit slowly.
Ensure that the fork arms are no longer under load:
6. Ensure that the area behind the machine is clear.
7. Carefully reverse from the deposit location until the loader unit can be
lowered to transport position.
8. Lower the attachment to the transport position.
9. Tilt the fork frame slightly backwards.
Fig. 188
Ansicht_024.iso
Ansicht_020.iso
Ansicht_021.iso
Ansicht_024.iso
Fig. 189
Ansicht_023.iso
Ansicht_022.iso
