7 Maintenance
Removal

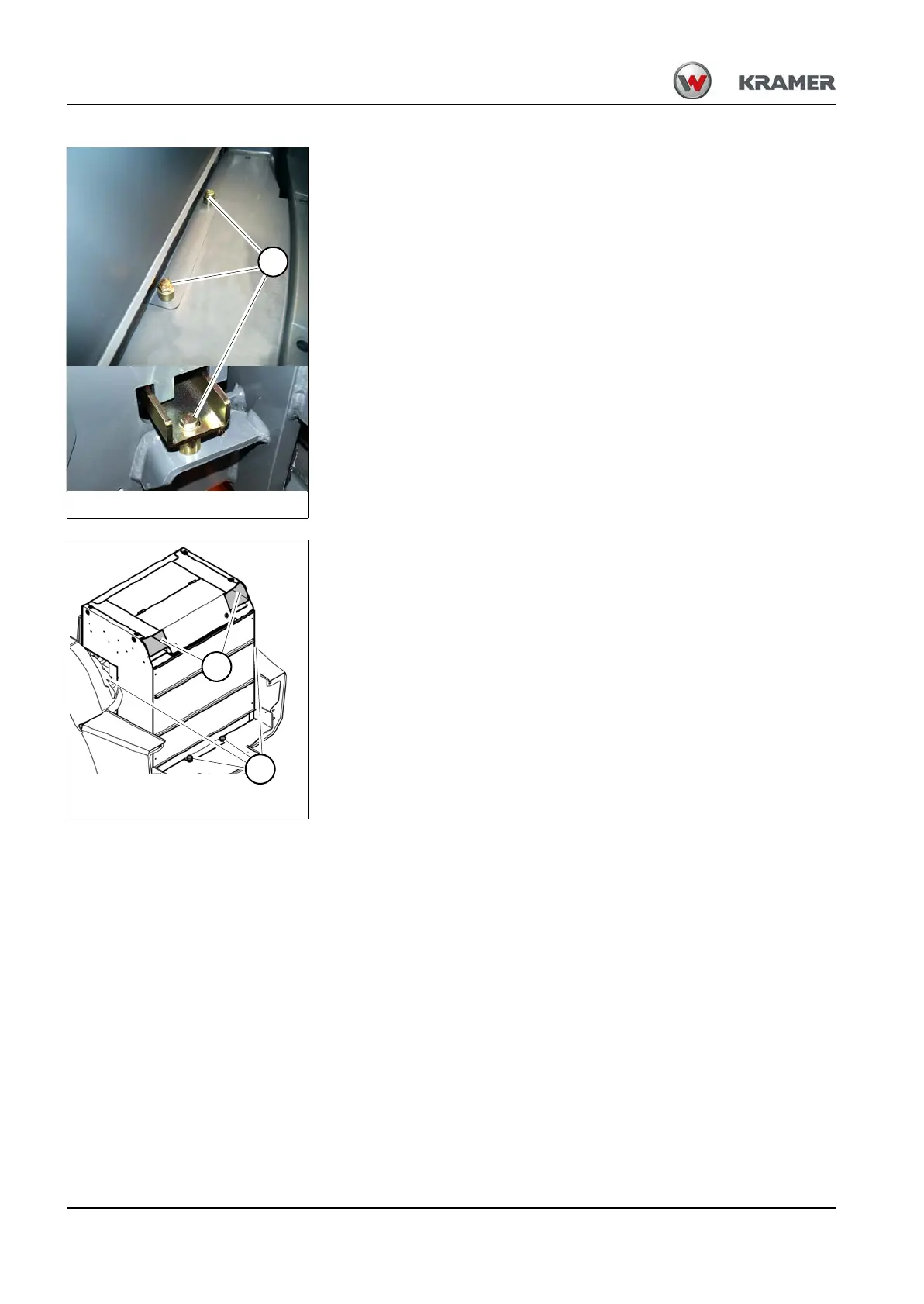

1. Unscrew the retaining screws A (M16) to the right, left and front on the
battery tray and remove with sleeves.
2. Approach the battery with pallet fork from the rear of the machine.
3. Move the fork tines as far as possible carefully into the supports B on
the battery tray.
4. Slightly raise the fork arms and pull the battery tray in
reverse out of the front clamp.
5. Lift the battery tray and carefully pull it straight in reverse
out of the rear of the machine.
