Maintenance 7
Removal

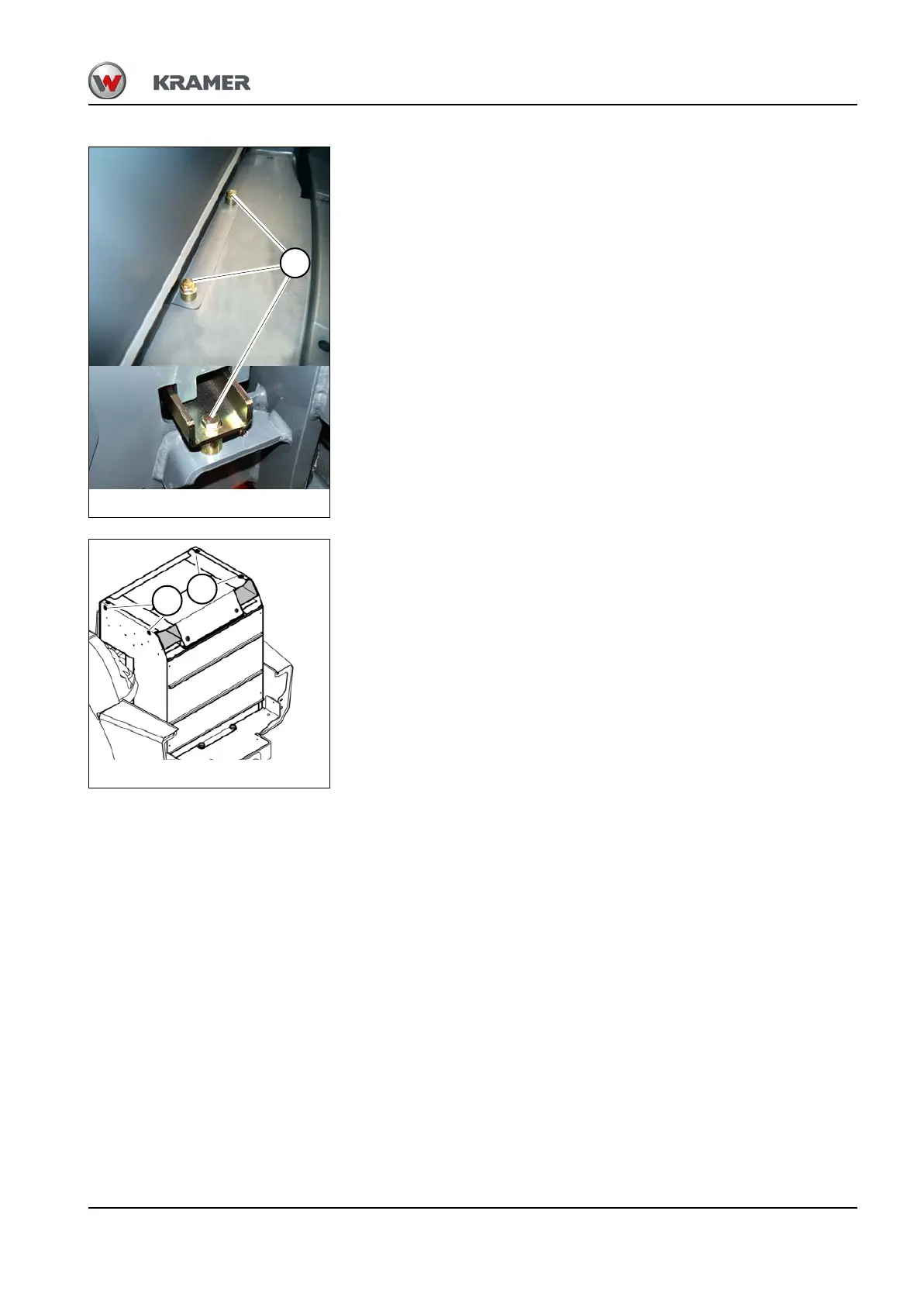

1. Unscrew all of the retaining bolts A (M16) on the battery tray and
remove them with the sleeves.
2. Knock the crane gear perpendicular onto the supports A on the battery
tray. To do this: attach the hooks so they cannot fall on battery cells
when the crane gear is loosened.
3. Lift the battery tray in reverse upwards and swing out of the machine.
