BA 357-00 * 3.0 * 35700_07_Wartung.fm 7-67
Maintenance 7

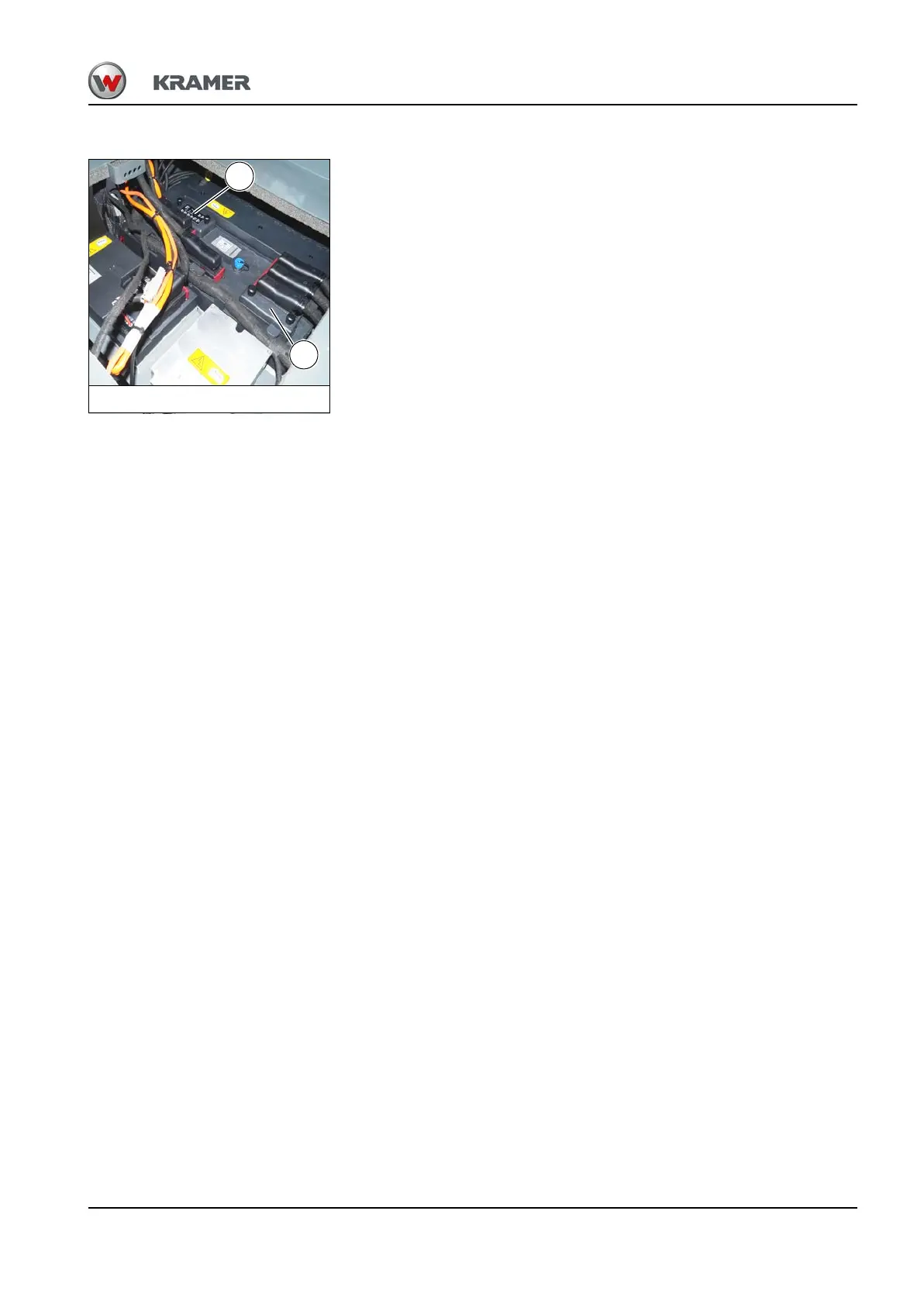

The power electronics is installed under the operator seat.
The fuses are located in the fuse boxes A and B of the power electronics
under the covers.
Fuse assignments – see chapter 9 “Power electronics” on page 9-12.
Removing a fuse
1. Lower the loader unit.
2. Apply the parking brake.
3. Actuate the motor isolating switch
4. Turn the machine off and remove the ignition key.
5. Open the battery cover plate.
6. Disconnect the battery connector.
7. Folding the operator seat forwards.
8. Unscrew the fastening screws of the cover.
9. Pull cover B with the fuse board out of the connector strip or take off
cover A from the fuse box.
10.Remove the defective fuse.
Installing a fuse
1. Insert the new fuse.
➥ Descriptions and output indications
– see chapter 9 “Fuses” on page 9-11.
2. Close the fuse box again. When the fuse board was been pulled out,
take care to note that the fuse board is inserted correctly into the
connector strip.
3. Fold back the operator seat and re-secure it.
4. Connect the battery connector.
5. Close the battery cover plate.
6. Turn on the machine.
7. Check the electrical system for correct function.
