Malfunctions 8
Displays
Information
The numbers in the presented illustrations are offered as examples.
Other figures are displayed in reality.

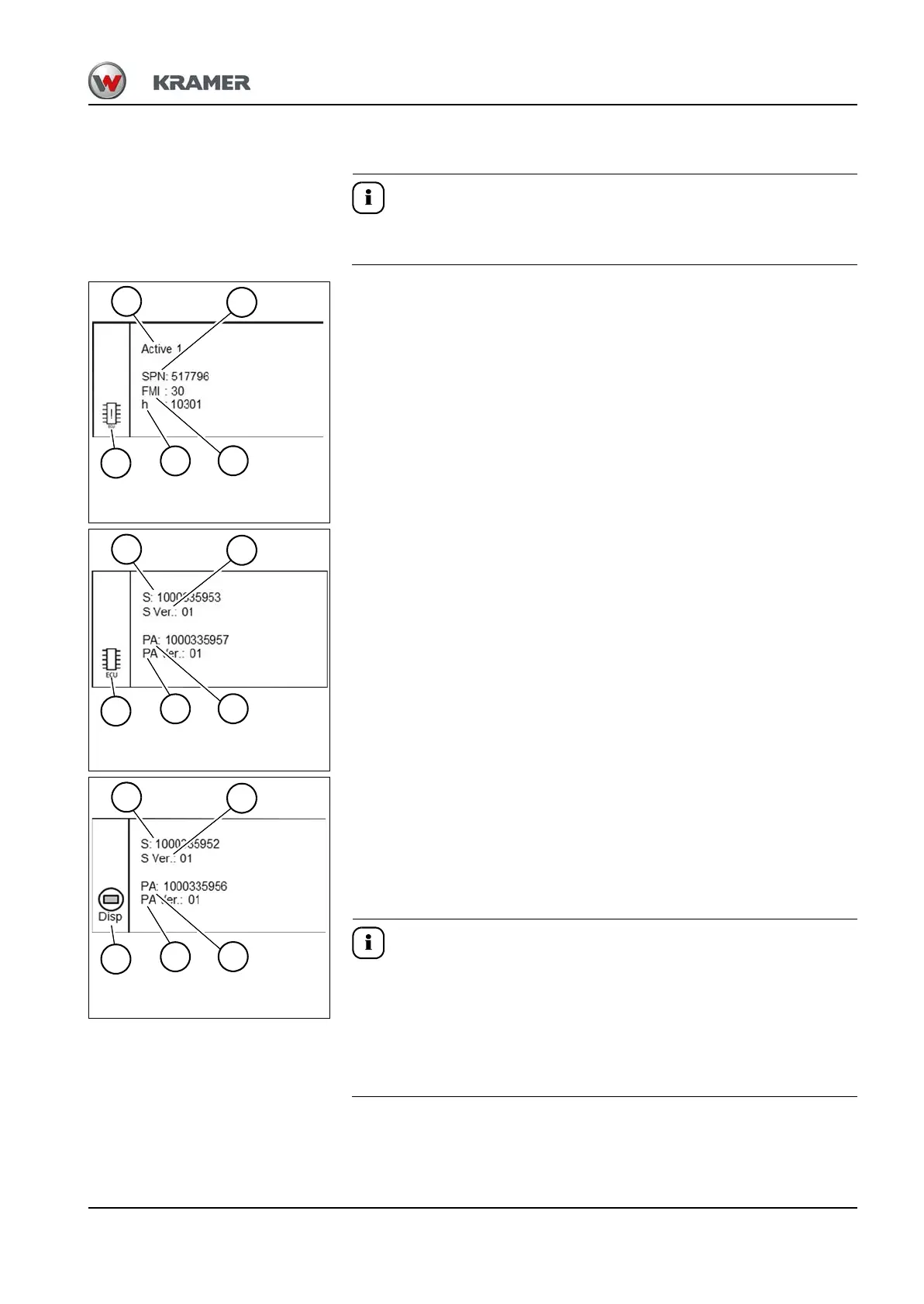

Error display
1. Error type active / passive with running number
2. SPN error code (component)
3. FMI error code (error type)
4. Operating hours at occurrence of error
5. ECU symbol (means that errors are displayed that are saved in the
machine’s control unit)
Machine electronics display (ECU)
1. Machine electronics number
2. Machine electronics version
3. Parameter data number
4. Parameter data version
5. ECU symbol (means that data of machine control unit is displayed)
Display electronics indication (DISP)
1. Display electronics number
2. Display electronics version
3. Parameter data number
4. Parameter data version
5. DISP symbol (means that display data is displayed)
Information
Retain the following data if you want to report an error to an authorized
service center:
• SPN error code (Fig. 261)
• FMI error code (Fig. 261)
• ECU data of machine electronics display (Fig. 262)
• DISP data of display electronics indication (Fig. 263)
