Waters 2414 - Page 53

June 11, 2015, 715004754 Rev. A
Page 53

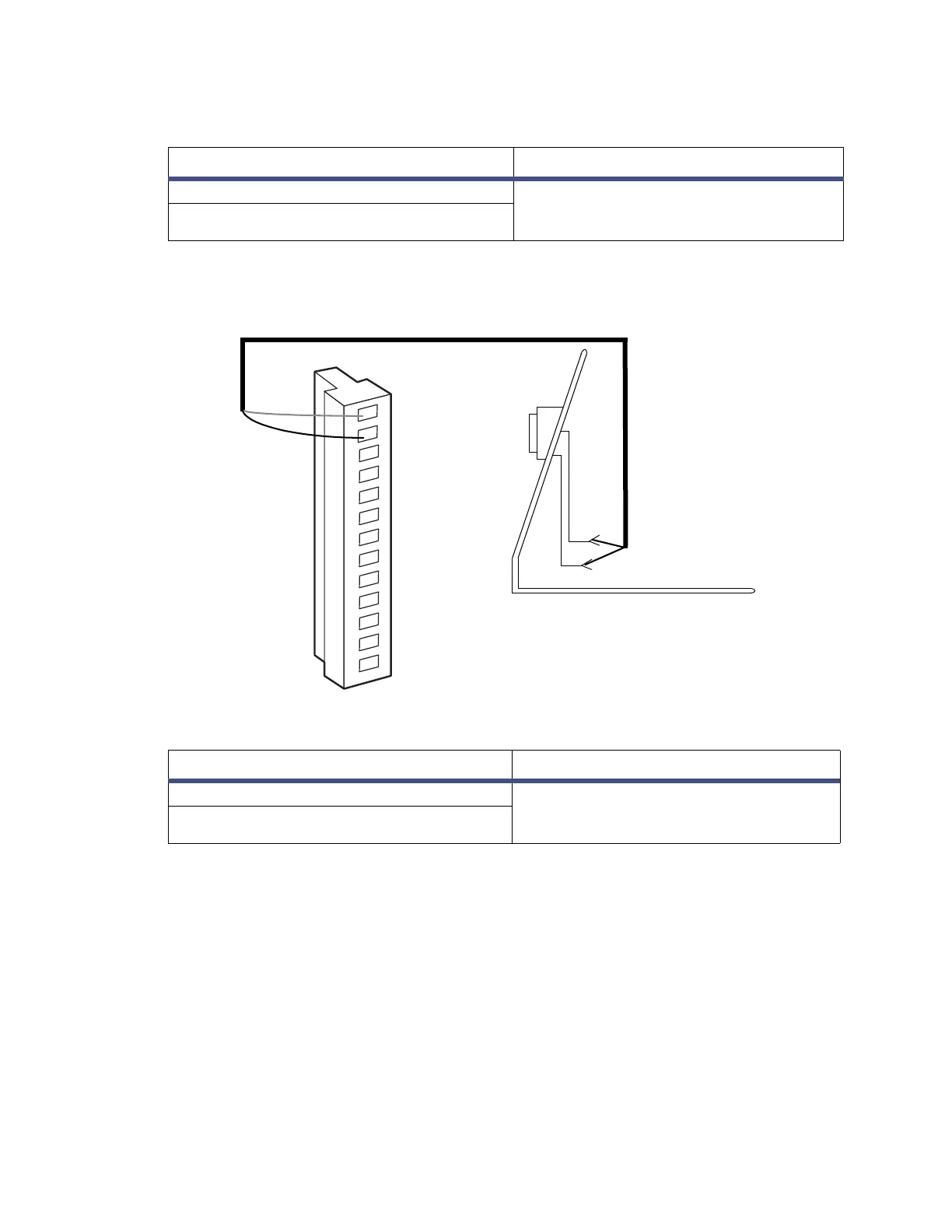

Autozero connection to a manual injector:
Table 3–8: Autozero connections to a manual injector
Detector (connector B) Manual injector connector
Pin 1, Autozero + (red) Two spade-lug terminal connectors
(both cables can be functionally
identical) or similar connectors.
Pin 2, Autozero – (black)
Table 3–9: Chart mark connections to a manual injector
Detector (connector A) Manual injector connector
Pin 9, Chart Mark + (red) Two spade-lug terminal connectors
(both cables can be functionally
identical) or similar connectors.
Pin 10, Chart Mark – (black)
Manual
Detector
connector B
injector
1 + Autozero
2 - Autozero
3 Ground
4 + Recycle Valve
5 - Recycle Valve
6 + Polarity Enable
7 - Polarity Enable
8 Ground
9 + Detector Out
10 - Detector Out
11 Ground
12 + Auxiliary Out
13 - Auxiliary Out
