November 16, 2016, 715004521 Rev. C
Page 63

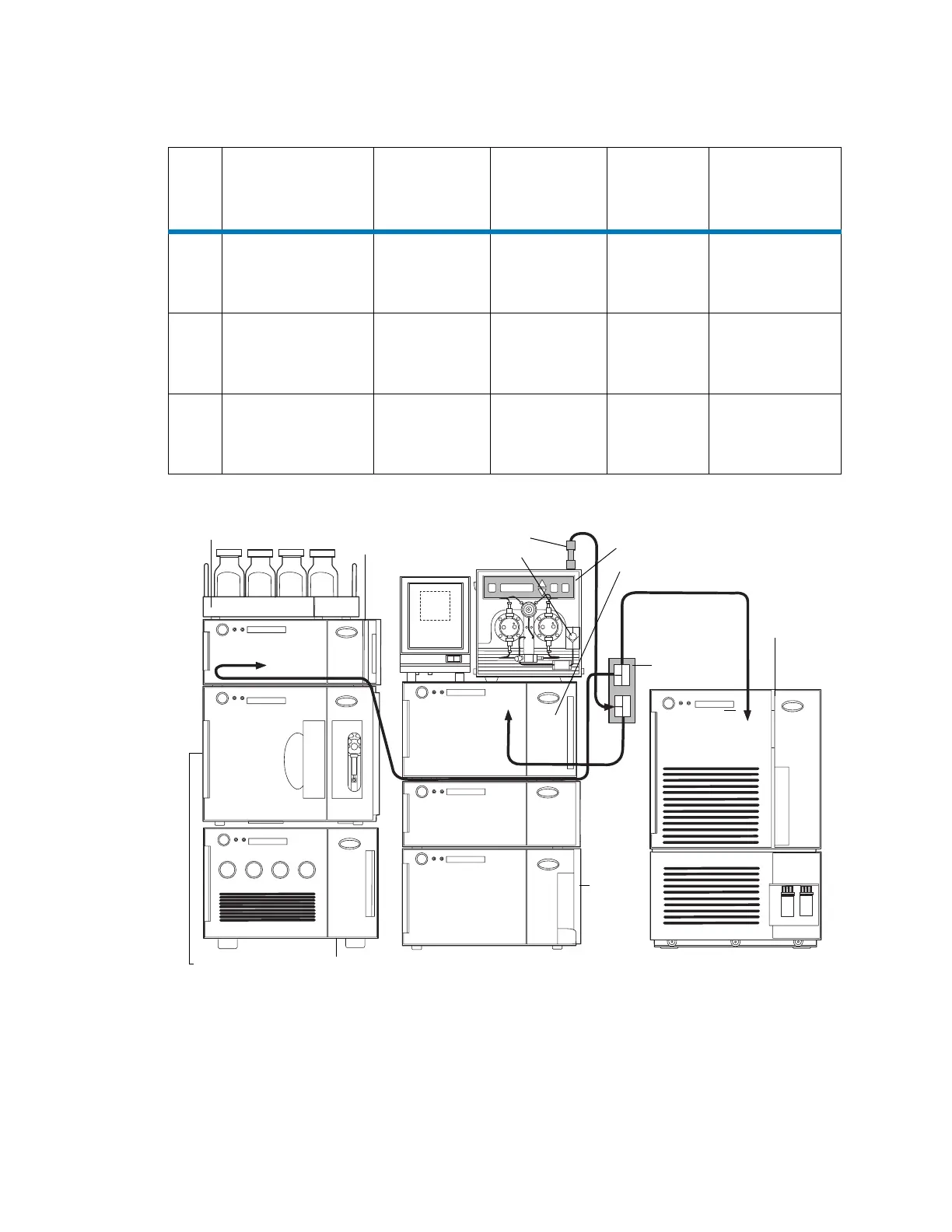

Figure 5–21: Core 2 configuration with a PDA, SQD, and splitter
The following table describes final tubing connections and does not list factory-installed tubing
connections.
Table 5–6: Core 2 configuration with a PDA, ELSD, and splitter
Tube Tube description From To
ID
Notes:
recommended
trim length
1 29.5 inch PEEKsil
tubing
(pre-connected to
the splitter)
Splitter module ELSD 50 µm Do not trim
2 46 inch
PEEK tubing
(pre-connected to
the splitter)
CM-A or PDA Splitter module 0.007 inches Do not trim more
than 30 inches
350 inch
PEEK tubing
(pre-connected to
the splitter)
Splitter module Left side of the
ccManager tee
0.010 inches Do not trim more
than 6 inches
SQD
MS splitter
module
mounted to
515 makeup
pump
PEEK union
Check valve
515 makeup pump
CM-AUX
CM-A
PDA
Solvent tray
ccManager
SM-FL
ccBSM
4
2
1
3
