November 16, 2016, 715004521 Rev. C
Page 66

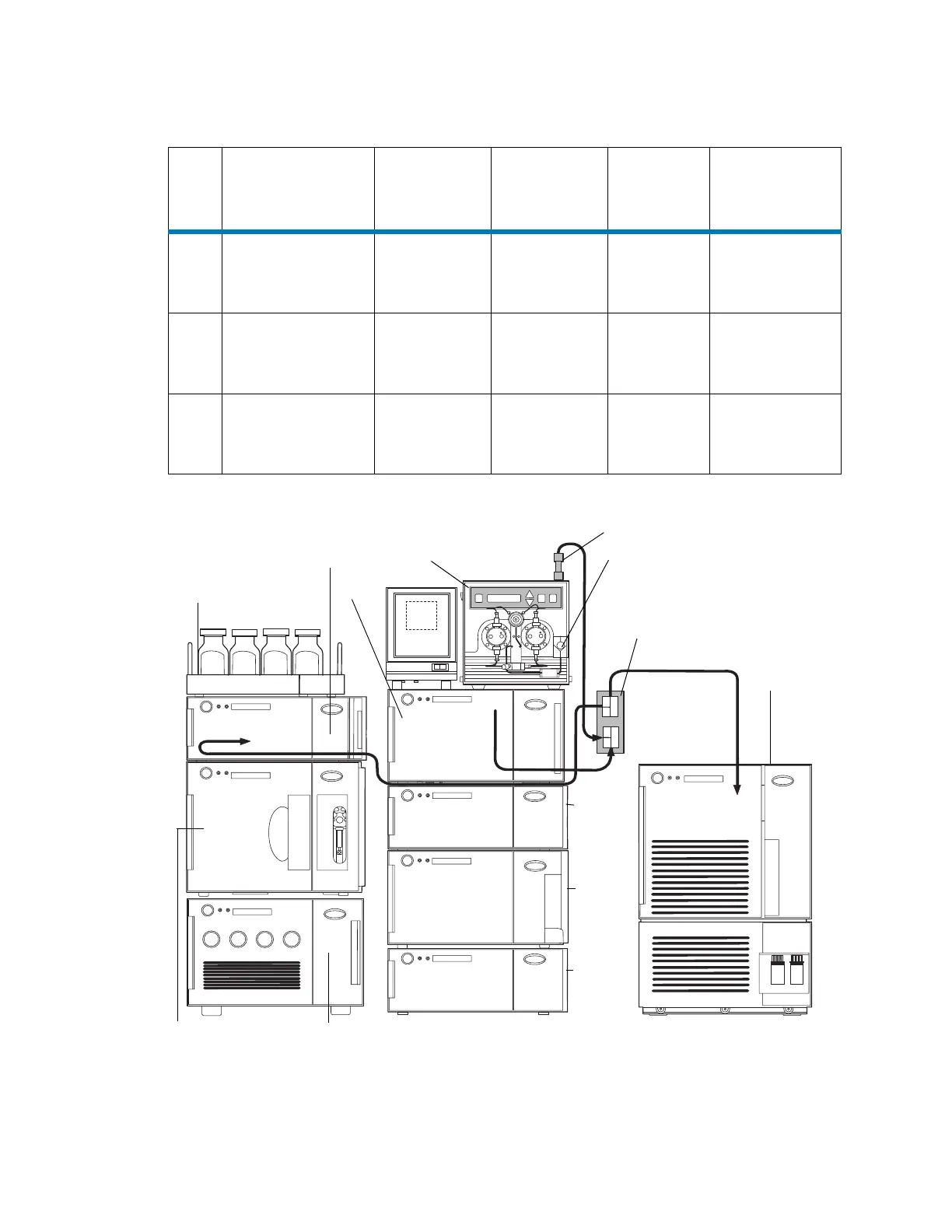

Figure 5–23: Core 3 configuration with a PDA, SQD, and splitter
The following table describes final tubing connections and does not list factory-installed tubing
connections.
Table 5–8: Core 3 configuration with a PDA, ELSD, and splitter
Tube Tube description From To
ID
Notes:
recommended
trim length
1 29.5 inch PEEKsil
tubing
(pre-connected to
the splitter)
Splitter module ELSD 50 µm Do not trim
2 46 inch
PEEK tubing
(pre-connected to
the splitter)
CM-A or PDA Splitter module 0.007 inches Do not trim more
than 30 inches
3 50 inch
PEEK tubing
(pre-connected to
the splitter)
Splitter module Left side of the
ccManager tee
0.010 inches Do not trim more
than 8 inches
CM-AUX
CM-A
CM-AUX
PDA
ccManager
Solvent tray
SQD
515 makeup
pump
MS splitter module
mounted to 515
makeup pump
PEEK union
Check valve
SM-FL
ccBSM
4
2
1
3
