November 16, 2016, 715004521 Rev. C
Page 69

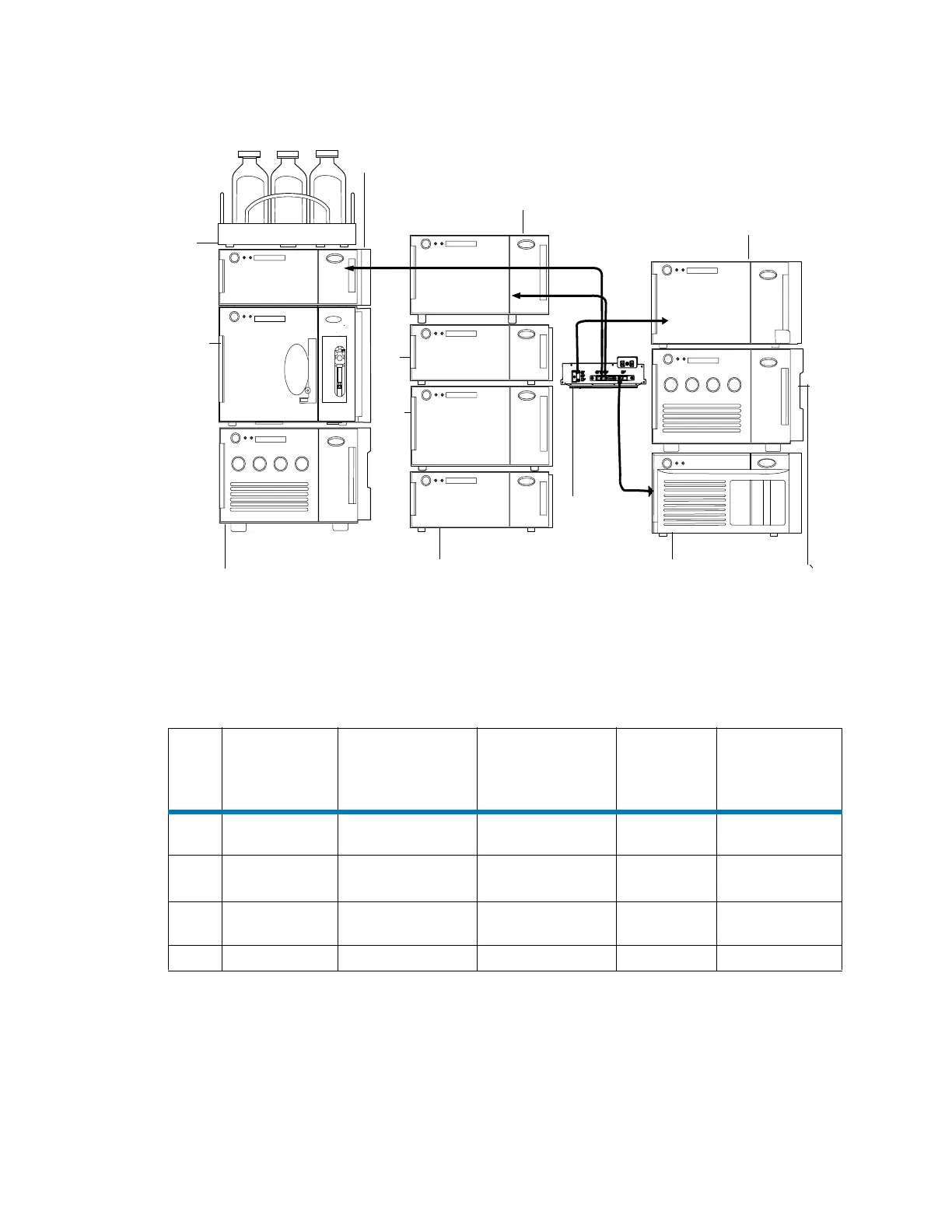

Figure 5–25: Core 3 configuration with a PDA, ELSD, ISM, and QDa
The following table describes final tubing connections and does not list factory-installed tubing
connections.
Table 5–11: Core 3 configuration with a PDA, ELSD, ISM, and QDa
Tube
Tube
description
From To
ID
Notes:
recommended
trim length
1 60.0 inches
PEEK tubing
ISM splitter
module
ccManager vent
valve tee
0.007 inches Optional trim up
to 30 inches
2 28 inches
PEEK tubing
CM-A or PDA ISM splitter
module
0.007 inches Trim to
15 inches
3 31 inches
PEEKsil tubing
ISM splitter
module
ELSD 75 μmN/A
4 Probe ISM splitter QDa probe N/A N/A
73
Solvent
tray
ccManager
SM-FL
ccBSM
ELSD
CM-
AUX
CM-A
CM-AUX
PDA
ISM with UPC
2
splitter
QDa
4
2
1
3
ISM splitter
module
