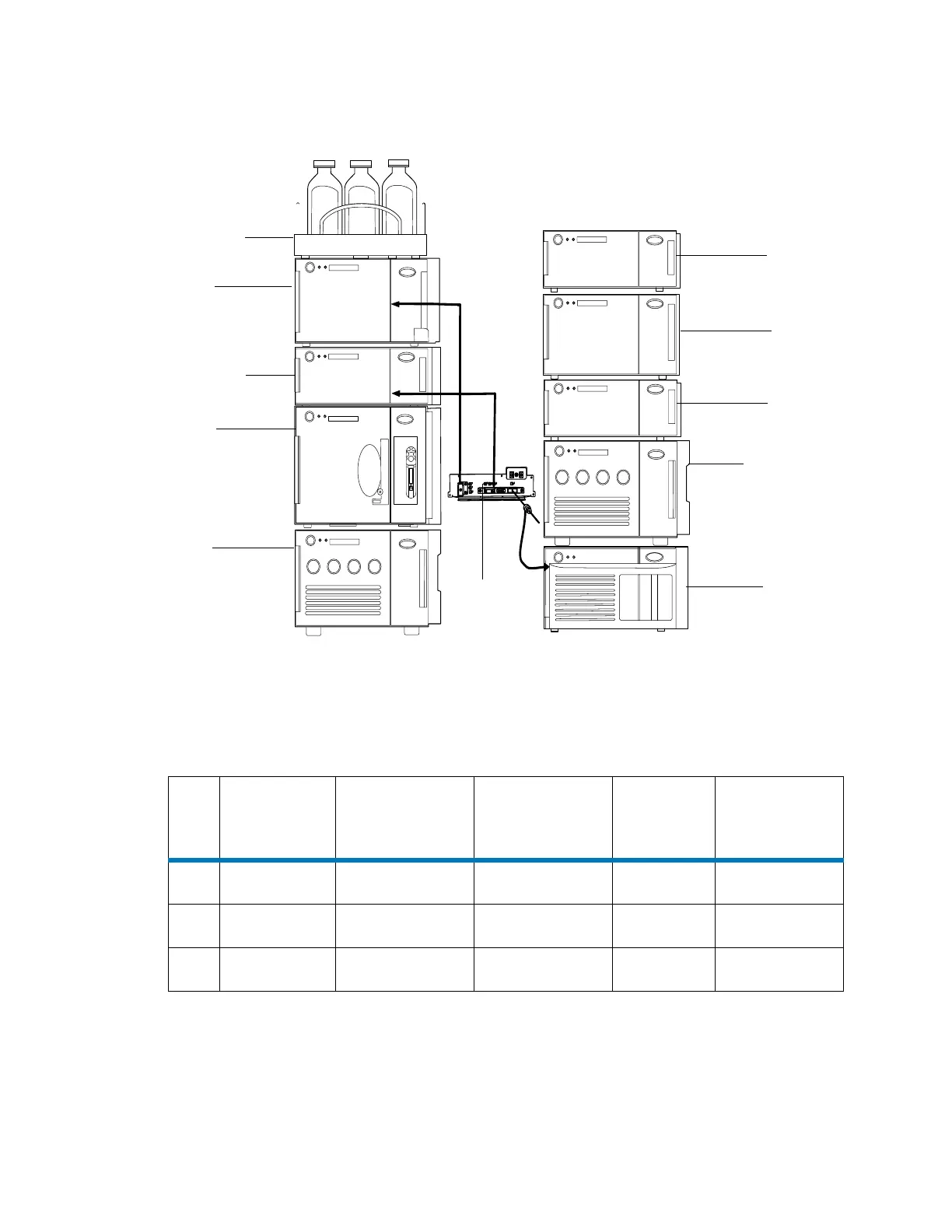

Figure 5–24: Core 3 configuration with a PDA, ISM, and QDa
The following table describes final tubing connections and does not list factory-installed tubing
connections.
Table 5–10: Core 3 configuration with a PDA, ISM, and QDa
Tube
Tube
description
From To
ID
Notes:
recommended
trim length
1 60.0 inch
PEEK tubing
ISM splitter
module
ccManager vent
valve tee
0.007 inches Optional trim up
to 30 inches
2 28.0 inch
PEEK tubing
CM-A or PDA ISM splitter
module
0.007 inches Trim to
15 inches
3 Probe ISM splitter
module
QDa probe N/A N/A
73
Solvent tray
PDA
ccManager
SM-FL
ccBSM
CM-AUX
CM-A
CM-AUX
ISM with UPC2
splitter module
QDa
ISM splitter
module
2
1
3
