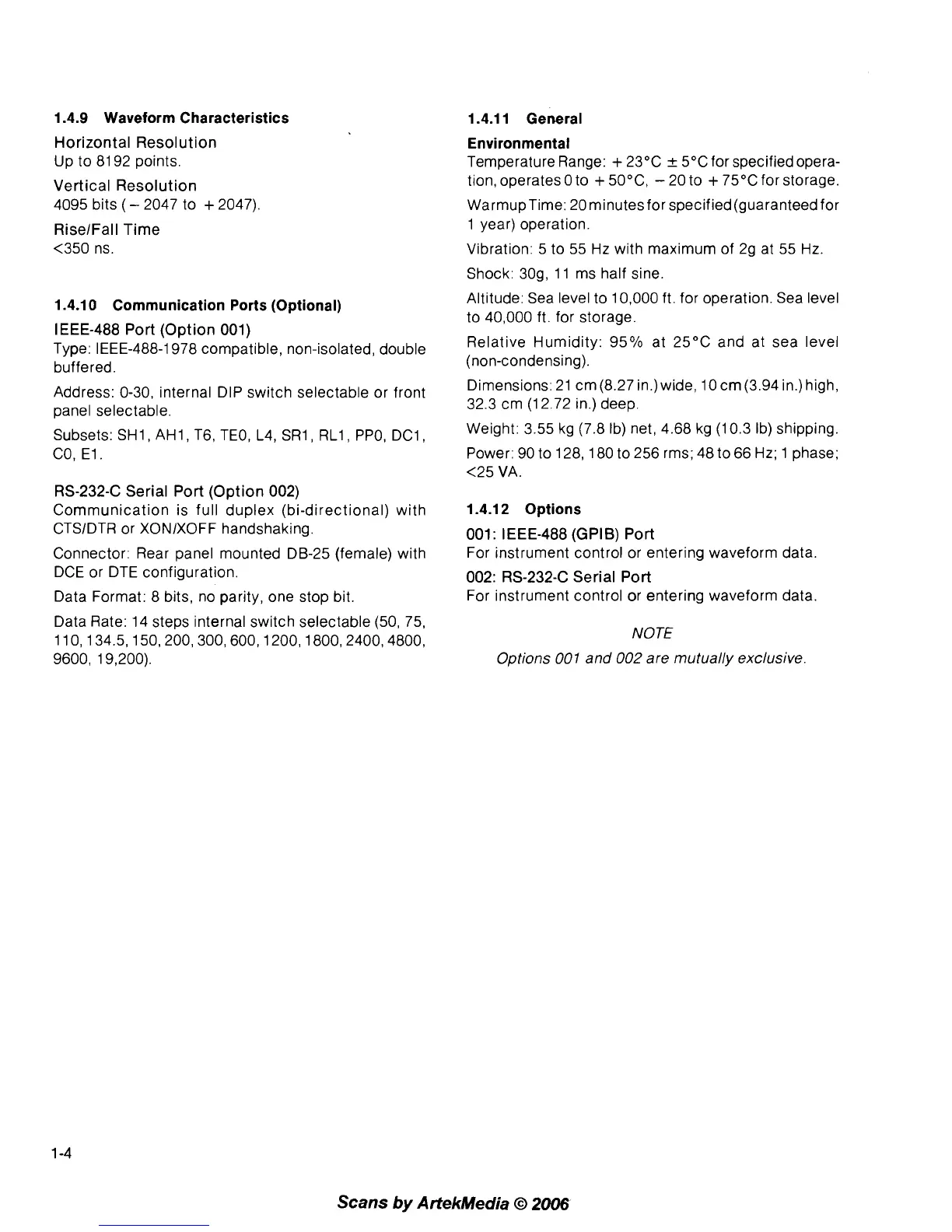

1.4.9 Waveform Characteristics
Horizontal Resolution
Up to 81 92 points.
Vertical Resolution
4095 bits
( - 2047 to + 2047).
RiselFall Time
<350 ns.
1.4.10 Communication Ports (Optional)
IEEE-488 Port (Option 001)
Type:
IEEE-488-1978 compatible, non-isolated, double
buffered.
Address: 0-30, internal DIP switch selectable or front
panel selectable.
Subsets:
SHl, AHl, T6, TEO, L4, SRl, RLI, PPO, DCl,
CO. El.
RS-232-C Serial Port (Option 002)
Communication is full duplex
(bi-directional) with
CTSIDTR or XONIXOFF handshaking.
Connector: Rear panel mounted DB-25 (female) with
DCE or DTE configuration.
Data Format: 8 bits, no parity, one stop bit
Data Rate: 14 steps internal switch selectable (50, 75,
1 10,134.5,150,200,300,600,1200,1800,2400,4800,
9600, 19,200).
1.4.1 1 General
Environmental
Temperature Range: + 23°C + 5°C for specified opera-
tion, operates
0 to + 50°C, - 20 to + 75°C for storage.
WarmupTime: 20 minutes for specified(guaranteed for
1 year) operation.
Vibration: 5 to 55 Hz with maximum of
29 at 55 Hz.
Shock:
309, 11 ms half sine.
Altitude: Sea level to 10,000 ft. for operation. Sea level
to 40,000 ft. for storage.
Relative Humidity:
95% at 25°C and at sea level
(non-condensing).
Dimensions: 21 cm (8.27 in.) wide,
10 cm (3.94 in.) high,
32.3 cm (1 2.72 in.) deep.
Weight: 3.55 kg (7.8 Ib) net, 4.68 kg (1 0.3 Ib) shipping.
Power: 90 to 128,180 to 256 rms; 48 to 66 Hz; 1 phase;
<25 VA.
1.4.1 2 Options
001: IEEE-488 (GPIB) Port
For instrument control or entering waveform data.
002:
RS-232-C Serial Port
For instrument control or entering waveform data.
NOTE
Options
001 and 002 are mutually exclusive.
