DIGITAL VOLTMETER
MODEL 75
SIGNAL SOURCE
P

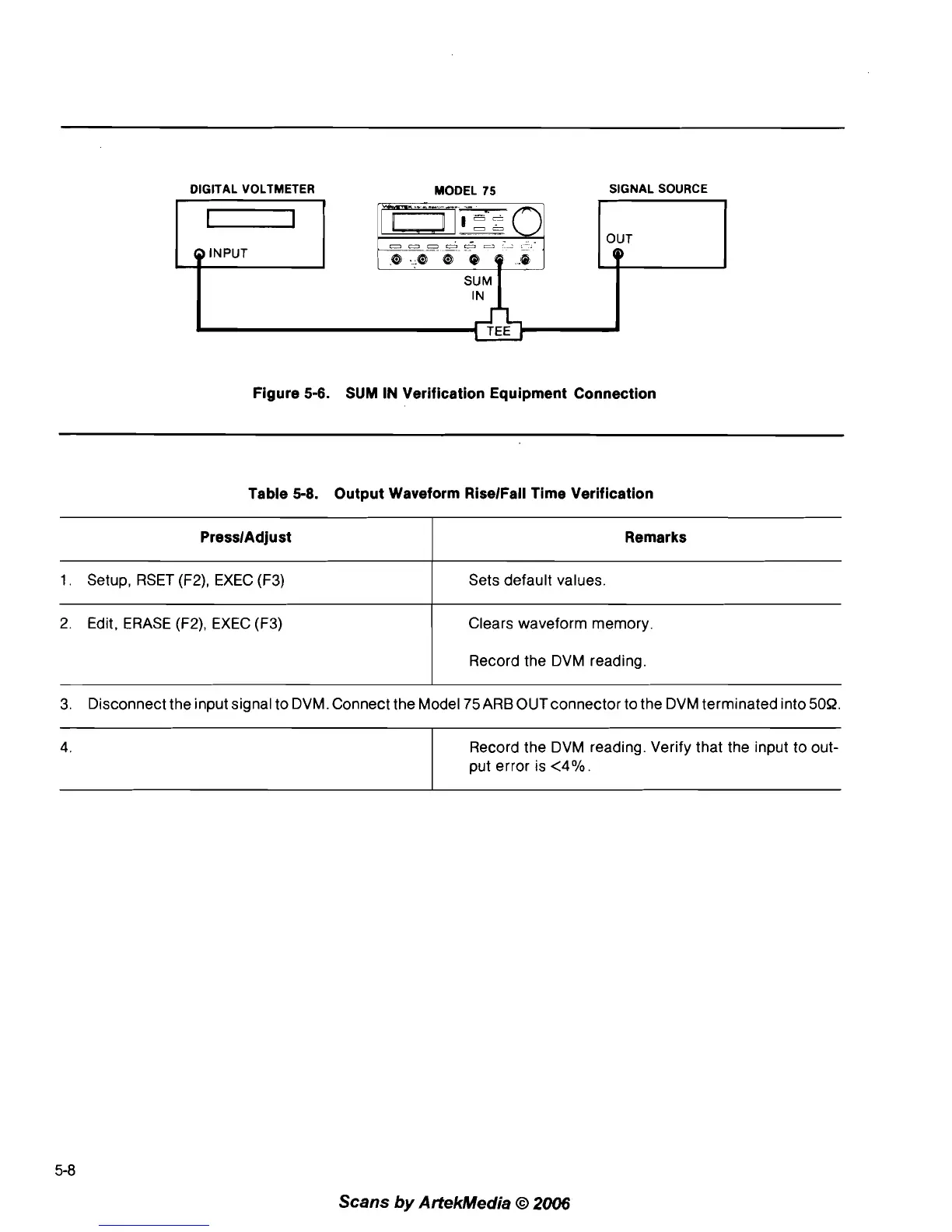

Figure 5-6. SUM IN Verification Equipment Connection
Table
5-8. Output Waveform RiselFall Time Verification
3. Disconnect the input signal to DVM. Connect the Model 75ARBOUTconnector to the DVM terminated into 509.
PresslAdjust
1. Setup, RSET (F2), EXEC (F3)
2.
Edit, ERASE (F2), EXEC (F3)
Remarks
Sets default values.
Clears waveform memory.
Record the DVM reading.
Scans by ArtekMedia O 2006
4. Record the DVM reading. Verify that the input to out-
put error is
<4%.
