Downgrading the sensor

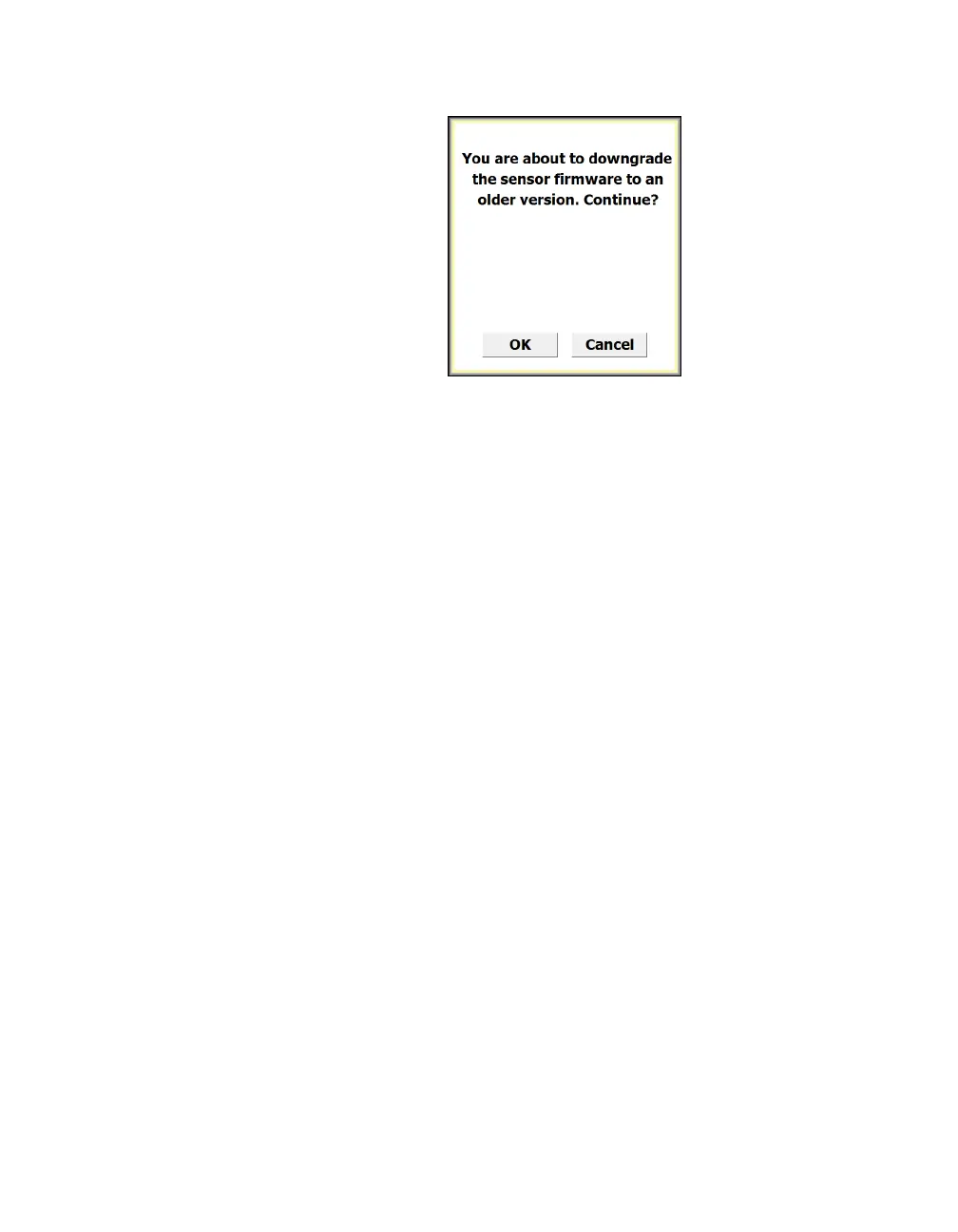

Figure 43. Downgrade warning message

If the downgrade message appears, it means that the sensor ﬁrm-

ware is newer than the version of SSMHD you’re using. Get the

newest version of SSMHD from www.wavetronix.com.
