Changing Ports tab settings

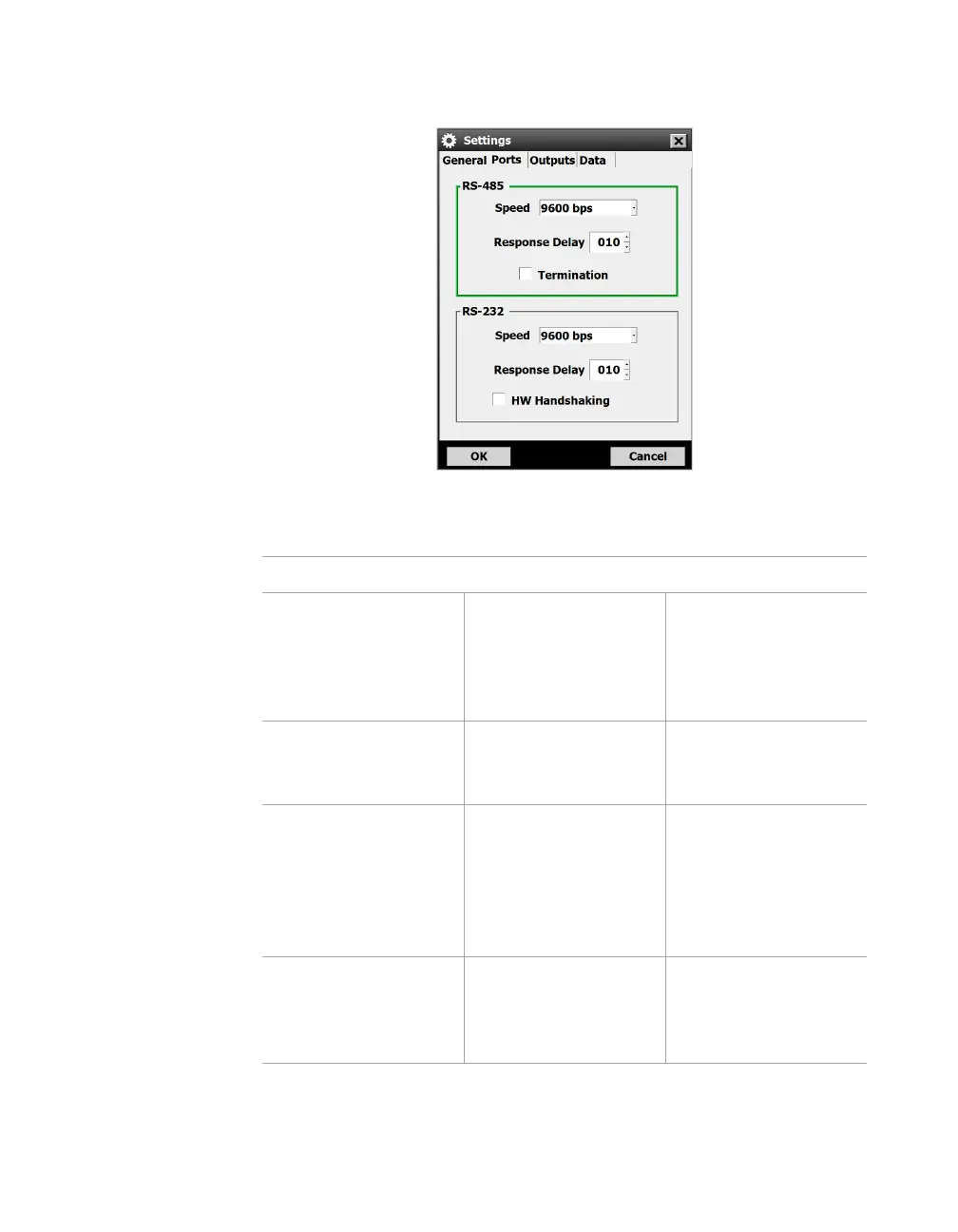

Figure 46. Ports tab
Setting Description Details
RS-485
Border Shows which comm
link the SSMHD is
connected to.
If there's a green
border around this
section, SSMHD is
communicating over
the RS-485 line.
Speed Lets you change the
baud rate for this
comm link.
All Wavetronix
devices default to
9600 bps.
Response Delay Lets you set how long
the sensor will wait
before responding to
a received message,
shown in milliseconds.
Default is 10 ms.
Change this if
you’re using a
communication
device that can’t
quickly change
transmission direction.
Termination Electronically
turns RS-485
communication bus
termination on or off.
You don’t need to
change this unless
a multi-drop bus
becomes overloaded.
Note. We
recommend that
you use the RS-485
port for pushing/
polling for data
and the RS-232
port for configuring
the sensor.
