SmartSensor HD User Guide
Setting up the pole-mount box
Lightning
Surge
Protection
W
ProtectedProtected
Click!
200
RS-485RS-232 DCE
110 VAC
SmartSensor
GNDGNDRDTDCTSRTSGND
485+485-GND-DC+DC
L N G

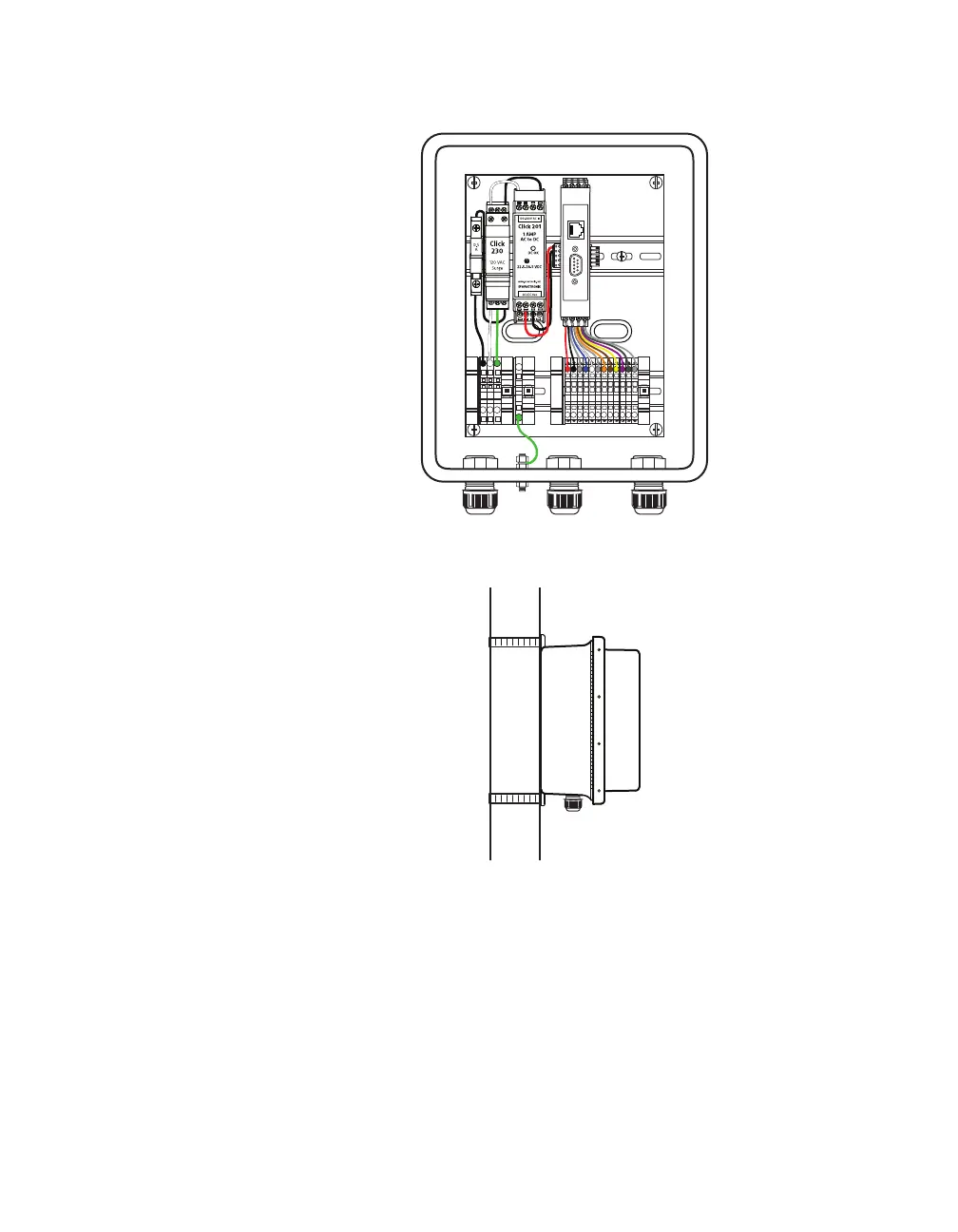

Figure 13. Standard Preassembled Cabinet (pole-mount box)
Figure 14. Attaching the pole-mount box
1 Find the mounting brackets that were included in the package
and attach them to the back of the Standard Preassembled
Cabinet.
2 Use Band-It or a similar clamping system to attach the Standard
Preassembled Cabinet to the pole.
Note. This section
assumes you are
using the Standard
Preassembled
Cabinet from
Wavetronix. If you
bought individual
Click modules
instead, see Click
100–400 Series User
Guide and support
document 295,
How to Assemble
the Power Plant. If
you are not using
Wavetronix devices,
contact your
dealer or visit the
knowledge base at
www.wavetronix.com.
