2.2 Servo motors
2.2.1 Servo motor model naming

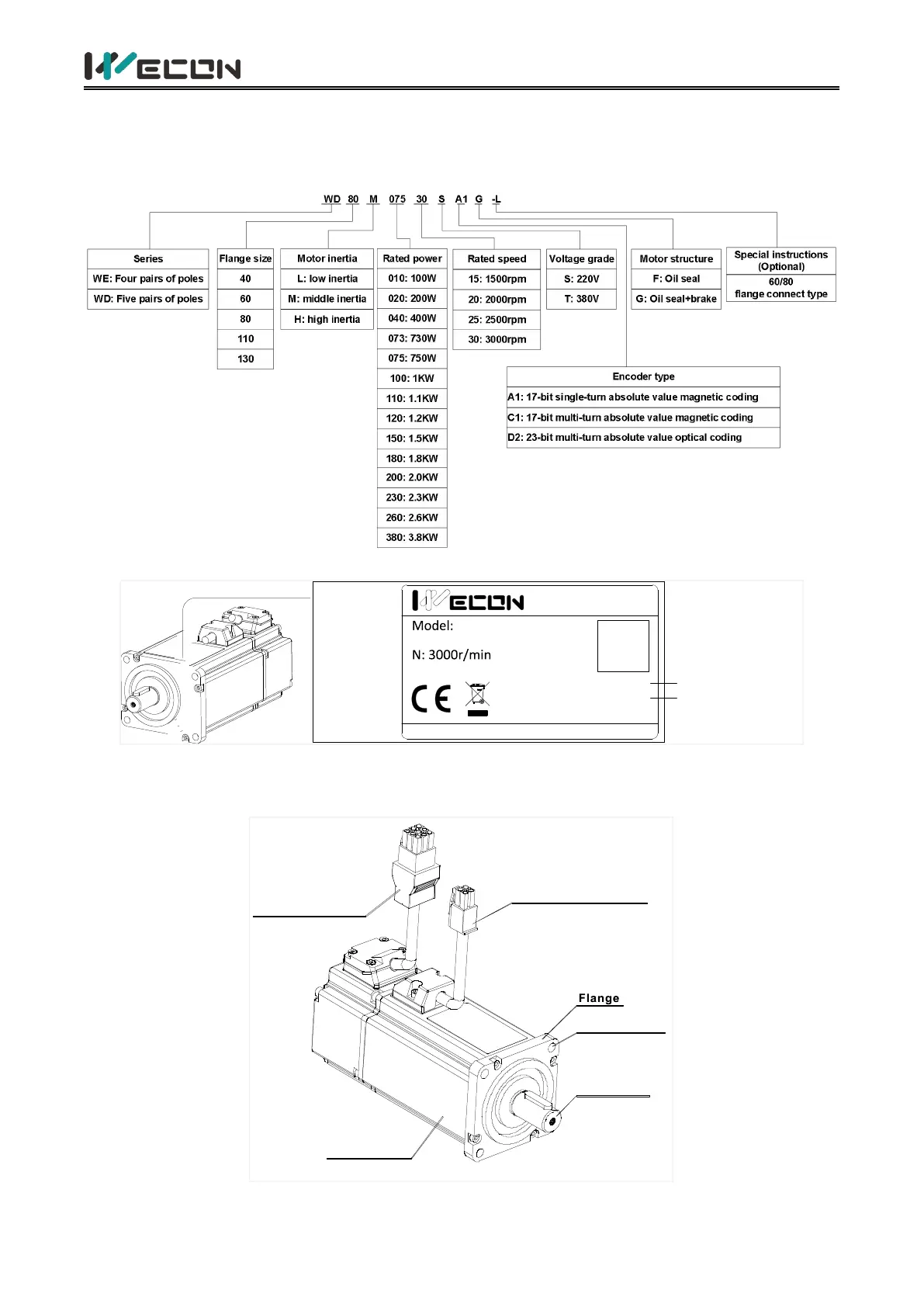

Figure 2-9 Servo motor naming
M a n u fa c t u re r co d e
M o to r c o d e
N am e p l a te
M o de l
Pa ra m et e r
W EC O N Technolo gy Co.,Ltd.
W D 80M -0 753 0S-D 2 G
AC SERVO MOTOR
IN S :
IP : 65
F
Pn: 0 .75 KW
In : 4.4 A
Tn : 2.3 9N m
MADE IN CHINA
M034S7200828B00D0001
Motor Code XXXXXX ：
Serial n um be r
QR co de
Figure 2-10 Servo motor nameplate
2.2.2 Composition of Servo motor
Motor housing
Motor shaft
Encoder connector
Power cable connector
Mounting hole
Figure 2-11 Motor composition of 40, 60 and 80 flange
