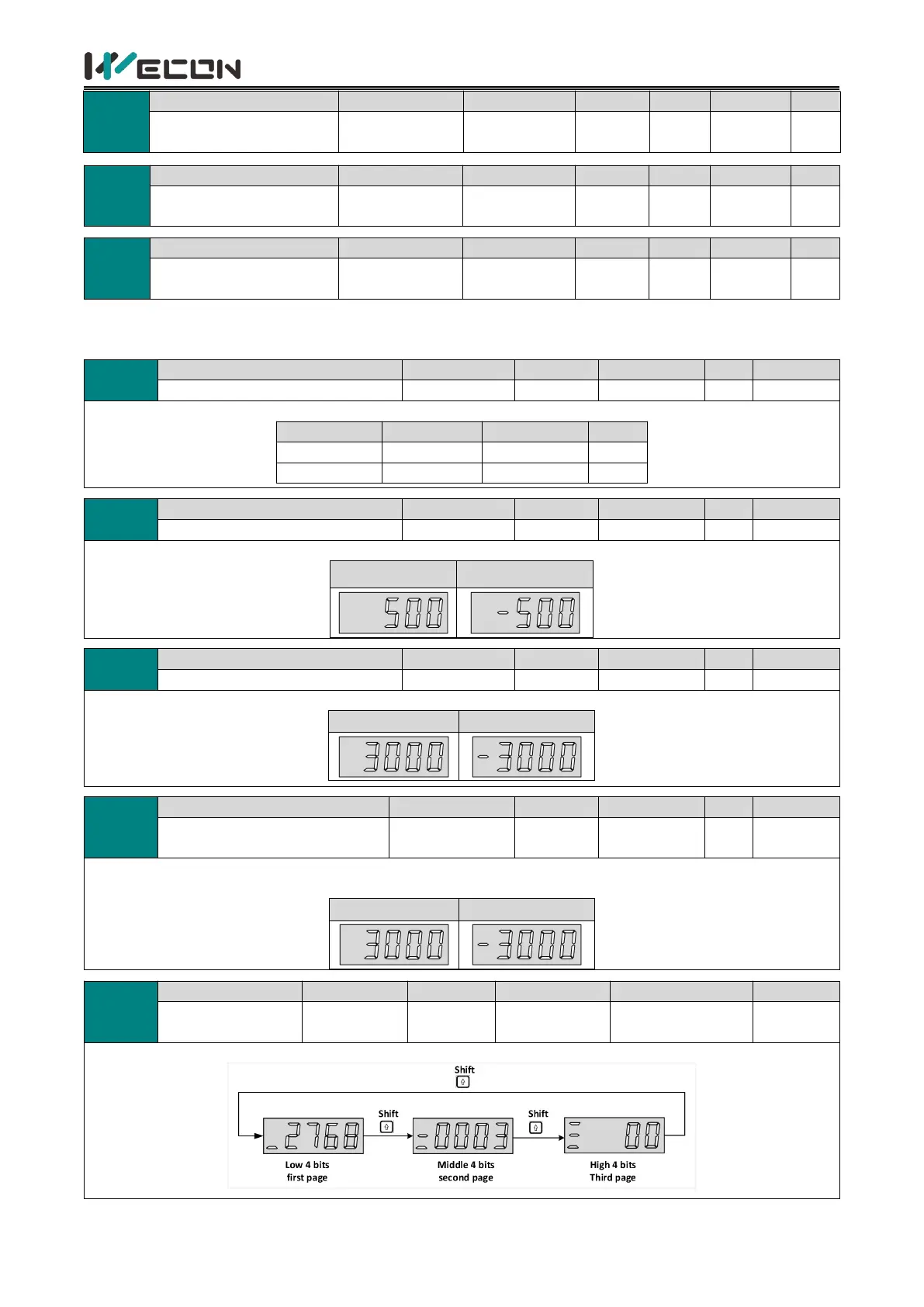

P13-12
Parameter name
Setting method
Effective time
Default
Range
Category
Unit
Virtual VD0_2 input value
Operation
setting
Effective
immediately
0
0 to 1
DI/DO
-
P13-13
Parameter name
Setting method
Effective time
Default
Range
Category
Unit
Virtual VD0_3 input value
Operation
setting
Effective
immediately
0
0 to 1
DI/DO
-
P13-14
Parameter name
Setting method
Effective time
Default
Range
Category
Unit
Virtual VD0_4 input value
Operation
setting
Effective
immediately
0
0 to 1
DI/DO
-
Group U0 Universal monitoring
U0-01
Monitoring name
Range
Category
Panel display
Unit
Data type
Servo status
1 to 4
Universal
Decimal
-
16-bit
Display the status of servo drive.
Display value
Status
Display value
Status
1
Initialization
3
Run
2
Rdy and JOG
4
Fault
U0-02
Monitoring name
Range
Category
Panel display
Unit
Data type
Servo motor speed
-5000 to 5000
Universal
Decimal
rpm
16-bit
Display the actual speed of servo drive. The accuracy is 1 rpm. The display of servo drive panel is as below.
500 rpm display
-500 rpm display
U0-03
Monitoring name
Range
Category
Panel display
Unit
Data type
Input speed instruction
-5000 to 5000
Universal
Decimal
rpm
16-bit
Display input speed instruction. The accuracy is 1 rpm. The display of servo drive panel is as below.
3000 rpm display
-3000 rpm display
U0-04
Monitoring name
Range
Category
Panel display
Unit
Data type
Corresponding speed of
position instruction
-5000 to 5000
Universal
Decimal
rpm
16-bit
Display the current speed instruction value of servo drive in position mode. The accuracy is 1 rpm. The display
of servo drive panel is as below.
3000 rpm display
-3000 rpm display
U0-05
Monitoring name
Range
Category
Panel display
Unit
Data type
Pulse deviation
-2
31
to 2
31
Universal
Decimal
Equivalent pulse
deviation
32-bit
Display pulse deviation. If U0-05 is set to 32768, the display of servo drive panel is as below.
