Wecon VD2 SA Series Servo Drives Manual (Lite V1.1)
WECON technology Co., Ltd
25
4.1.2 Power wiring
(1) VD2SA drive single-phase 220V main circuit wiring

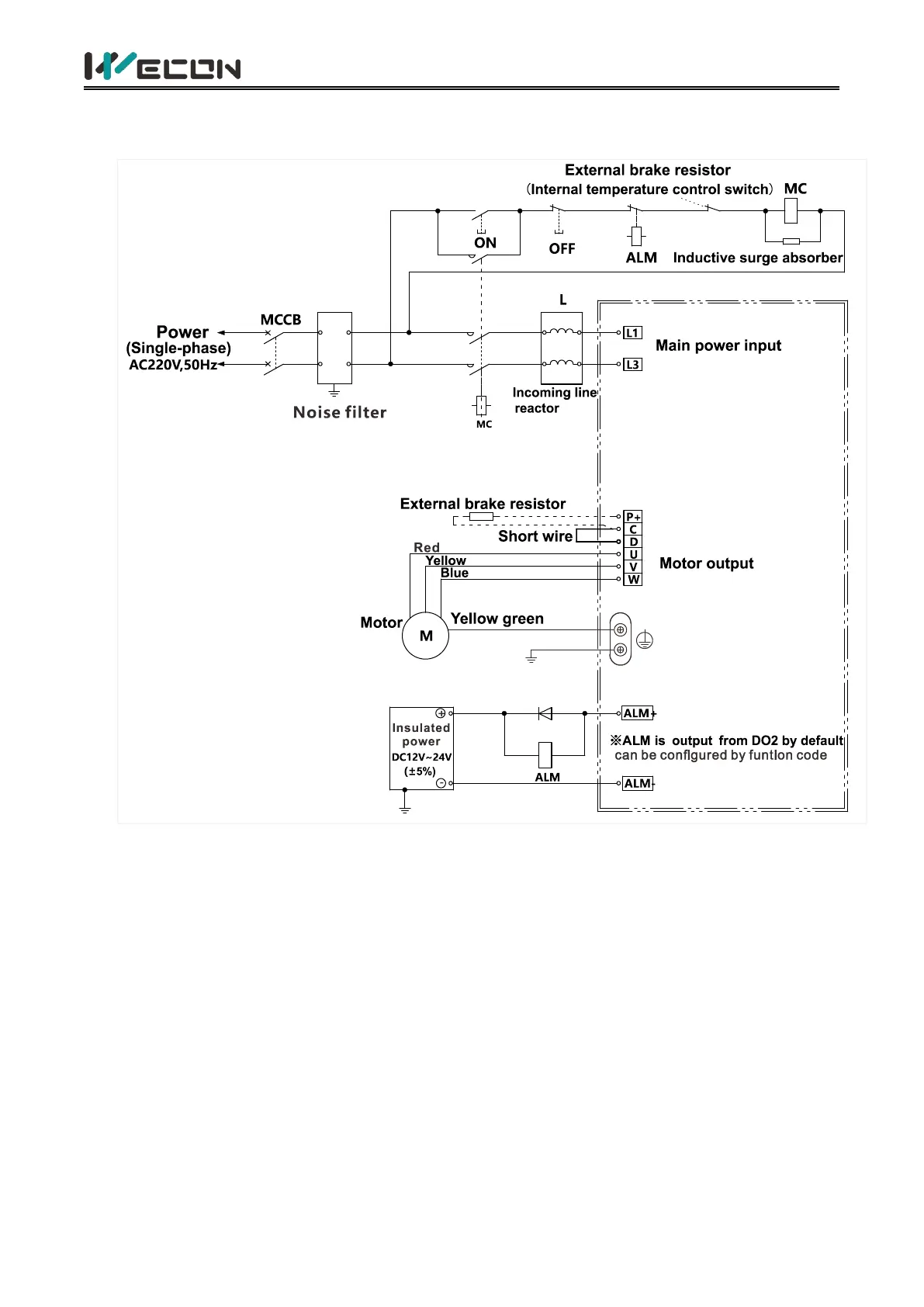

Figure 4-4 VD2A drive single-phase 220V main circuit wiring
