4.4.3 Position instruction input signal
Signal
name
VD2A and VD2B
pin number
VD2F pin
number
Function
PULS+
43
12
Low-speed pulse input modes: differential input, open
collector.
There are three types of input pulse:
1
Direction + pulse (positive logic)
2
CW/CCW
3
A and B phase quadrature pulses (4 times the
frequency).
PULS-
42
13
SIGN+
41
14
SIGN-
40
15
PL
44
11
External power input interface for instruction pulse.
Table 4-14 Position instruction signal description
The instruction pulse and sign output circuit on the host device side can be selected from
differential output or open collector output. The maximum input frequency is shown in the table.
Pulse method
Maximum frequency
Difference
500KHz
Open collector
200KHz
(1) Differential input

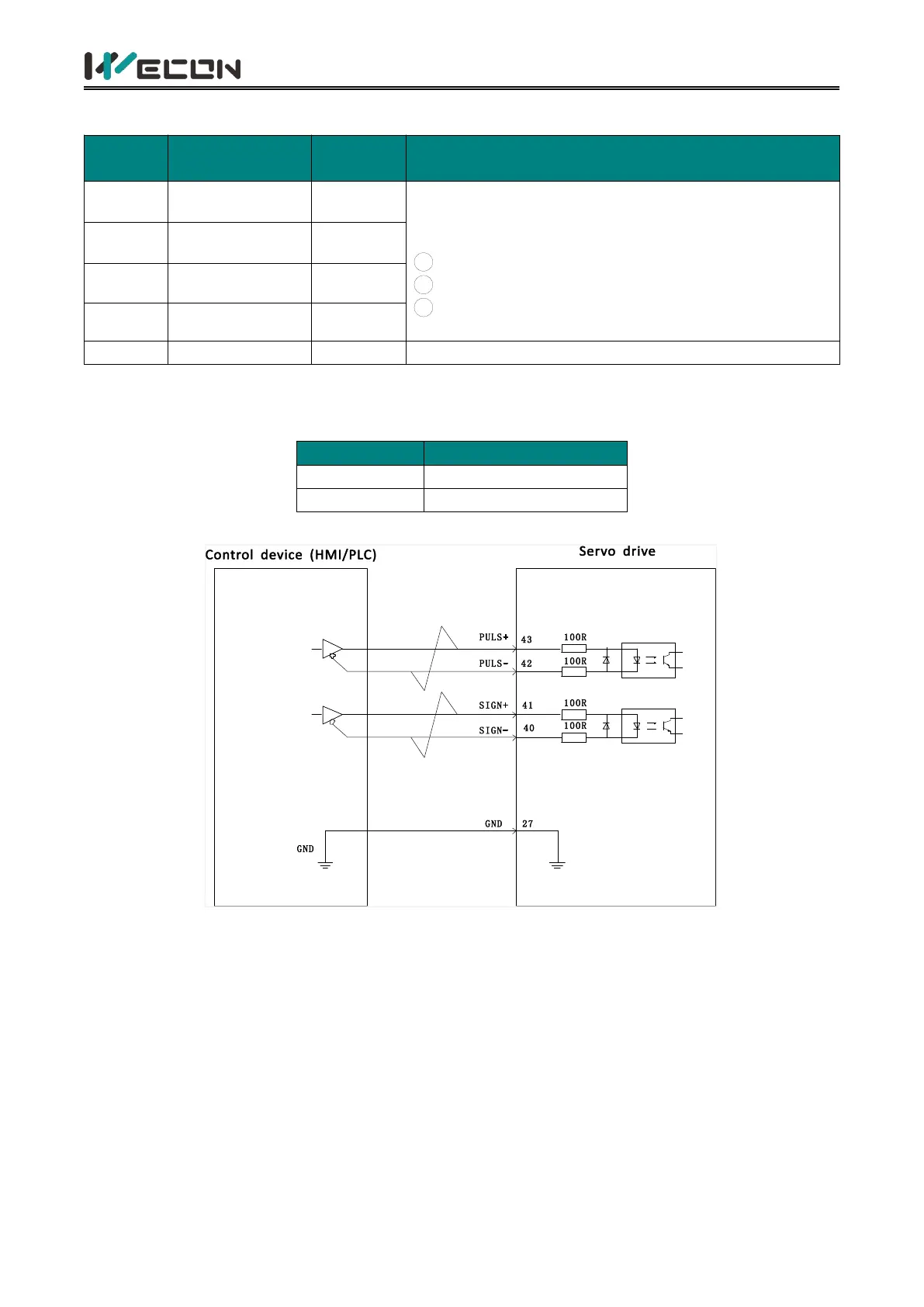

Figure 4-13 VD2A and VD2B servo drive differential input connection
