4. Wiring
4.1 Main circuit wiring
4.1.1 Main circuit terminals
(1) VD2A servo drive main circuit terminal distribution

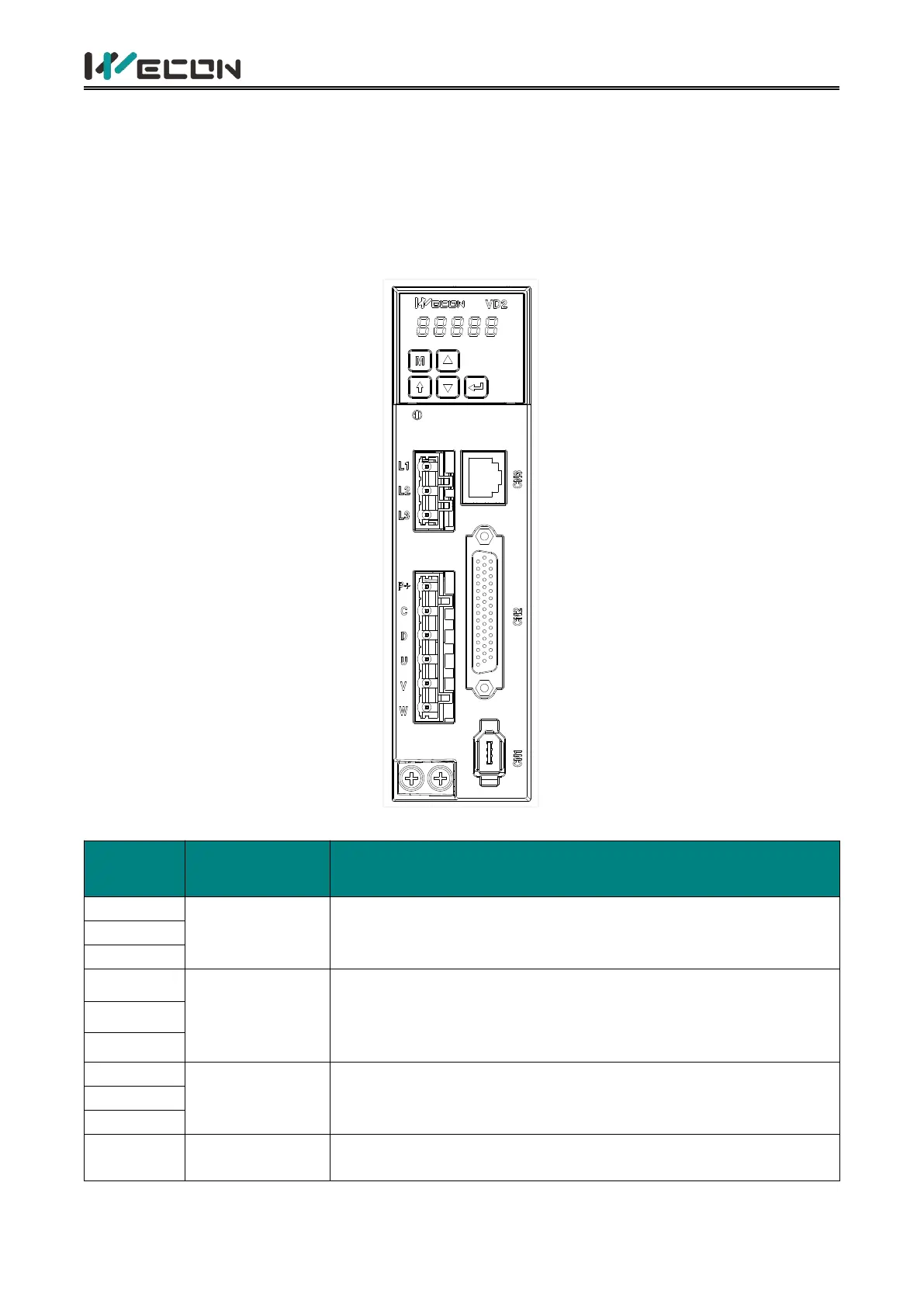

Figure 4-1 VD2A servo drive main circuit terminal distribution
Terminal
number
Terminal name
Terminal function
L1
Power input
terminal
Single-phase 220V AC input is connected to L1 and L3.
L2
L3
P+
Braking resistor
terminal
Use internal braking resistor: short-circuit C and D.
Use external braking resistor: Please disconnect the short wire
between C and D, and then connect the external braking resistor
between P+ and C;
C
D
U
Motor power
line terminal
Connect with the U, V and W of motor to power the motor.
V
W
Ground
terminal
Ground terminal
Grounding treatment of servo drive.
Table 4-1 The name and function of VD2A servo drive () main circuit terminal
