Wecon VD2 SA Series Servo Drives Manual (Lite V1.1)
WECON technology Co., Ltd
3.1.4 Installation matters
(1) Installation specifications
In order to achieve a good cooling cycle effect, ensure that there is enough ventilation space around
it when installing the servo drive, and be sure to comply with the installation standards in the
control cabinet shown in the figure below, otherwise it may cause the drive to malfunction. For
typical minimum installation dimensions, please refer to Figure 3-4.
>50mm
>50mm
>20mm
>50mm
>50mm
>20mm
>20mm
>50mm
>50mm
>20mm
>20mm
CN2
CN1
Charge
VD2A
VD2F
VD2B

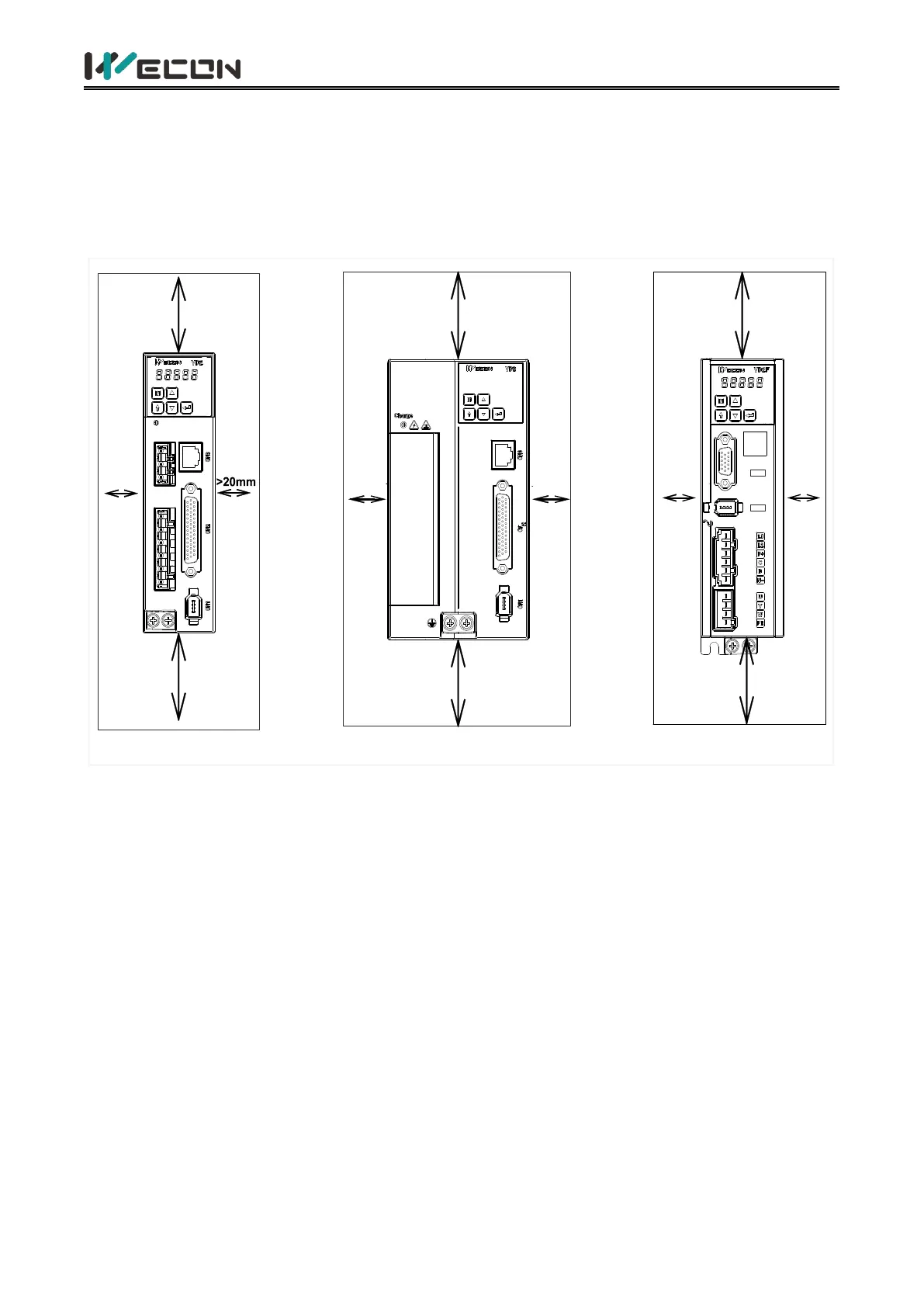

Figure 3-4 Minimum installation size
(2) Parallel installation
When multiple units are installed in parallel, the minimum distance between each other should be
20mm, and the distance between each other should be at least 100mm. Please refer to Figure 3-5
and Figure 3-6 for details. To prevent temperature rise, a cooling fan can be placed on the upper
part. If you need a smaller spacing installation, please consult us.
