Wecon VD2F-010SA1P - 4.4.4 Analog input signal

Wecon VD2 SA Series Servo Drives Manual (Lite V1.1)
WECON technology Co., Ltd
40

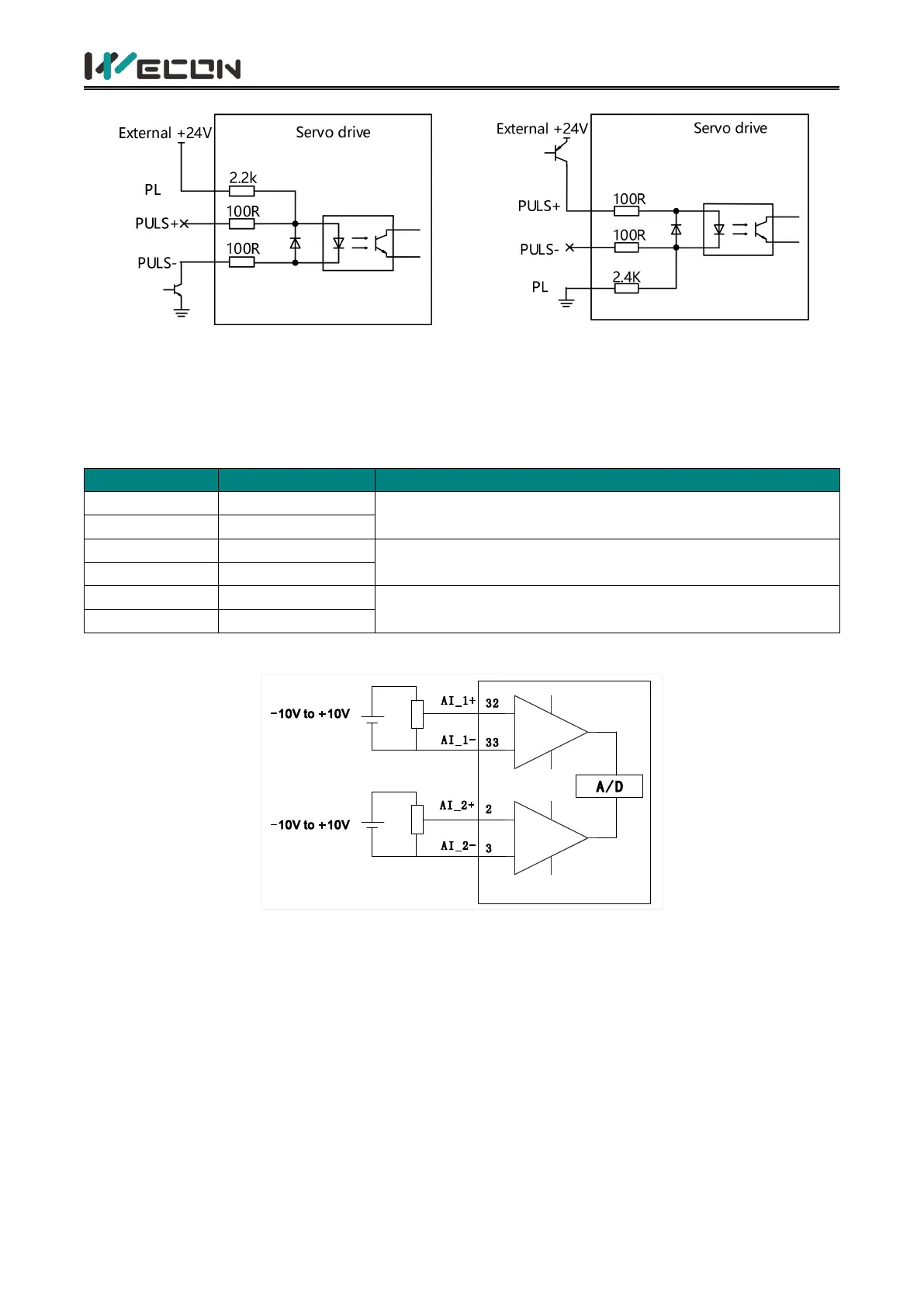

2) NPN and PNP wiring
NPN
PNP
Figure 4-17 Triode Wiring
4.4.4 Analog input signal
The analog input signal is only supported by VD2A and VD2B servo drives.
Pin number
Signal name
Function
32
AI_1+
AI_1 analog input signal, resolution 12-bit.
Input voltage range: -10V to +10V.
33
AI_1-
2
AI_2+
AI_2 analog input signal, resolution 12-bit.
Input voltage range: -10V to +10V.
3
AI_2-
17
GND
Analog input signal ground.
34
GND
Table 4-15 Analog input signal description
Figure 4-18 Analog input wiring
