Flange
Motor shaft
Motor housing
Encoder
Encoder socket
Motor power cable socket

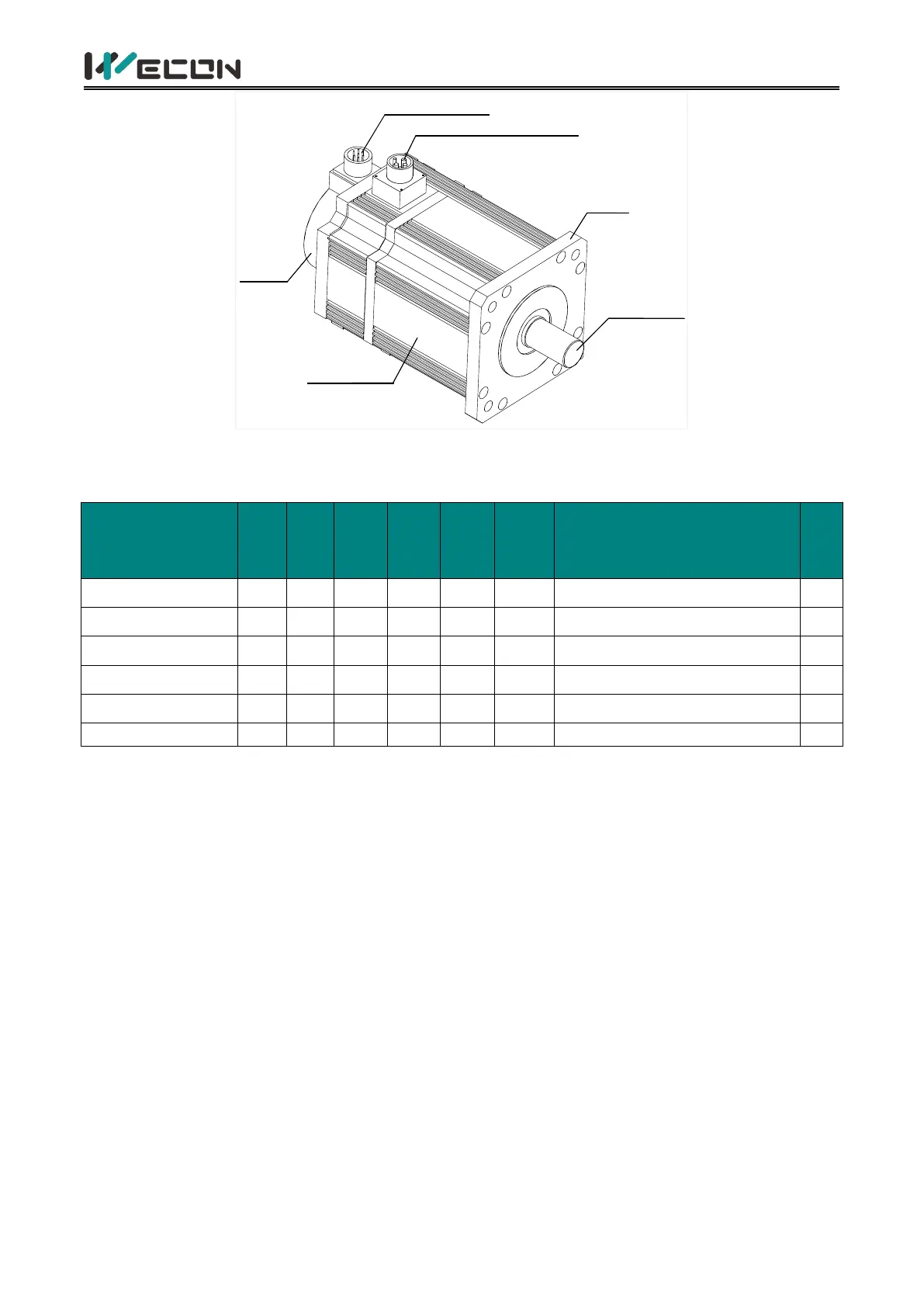

Figure 2-12 Motor composition of 110 and 130 flange
2.2.3 Specification of servo motor
Wecon motor model
Motor
code
Flange
size
Rated
power
(KW)
Rated
torque
(N.m)
Voltage
(V)
Rated
speed
(rpm)
Encoder type
Brake
WE130M-10025S-A1F
A091
130
1.0
4.0
220
2500
17-bit single turn absolute magnetic
No
WE130M-15025S-A1G
A111
130
1.5
6.0
220
2500
17-bit single turn absolute magnetic
Yes
WE130M-26025S-C1F
C191
130
2.6
10
220
2500
17-bit multi turn absolute magnetic
No
WE80M-12030S-C1G
C231
80
1.2
4.0
220
3000
17-bit multi turn absolute magnetic
Yes
WE110M-18030S-D2G
D131
110
1.8
6.0
220
3000
23-bit multi turn absolute optical
Yes
WE130M-23015S-D2F
D161
130
2.3
15.0
220
1500
23-bit multi turn absolute optical
No
Table 2-1 Wecon Motor Specifications
✎Note: Only part of motor models are displayed, please refer to the “Model Selection Manual” for
details.
