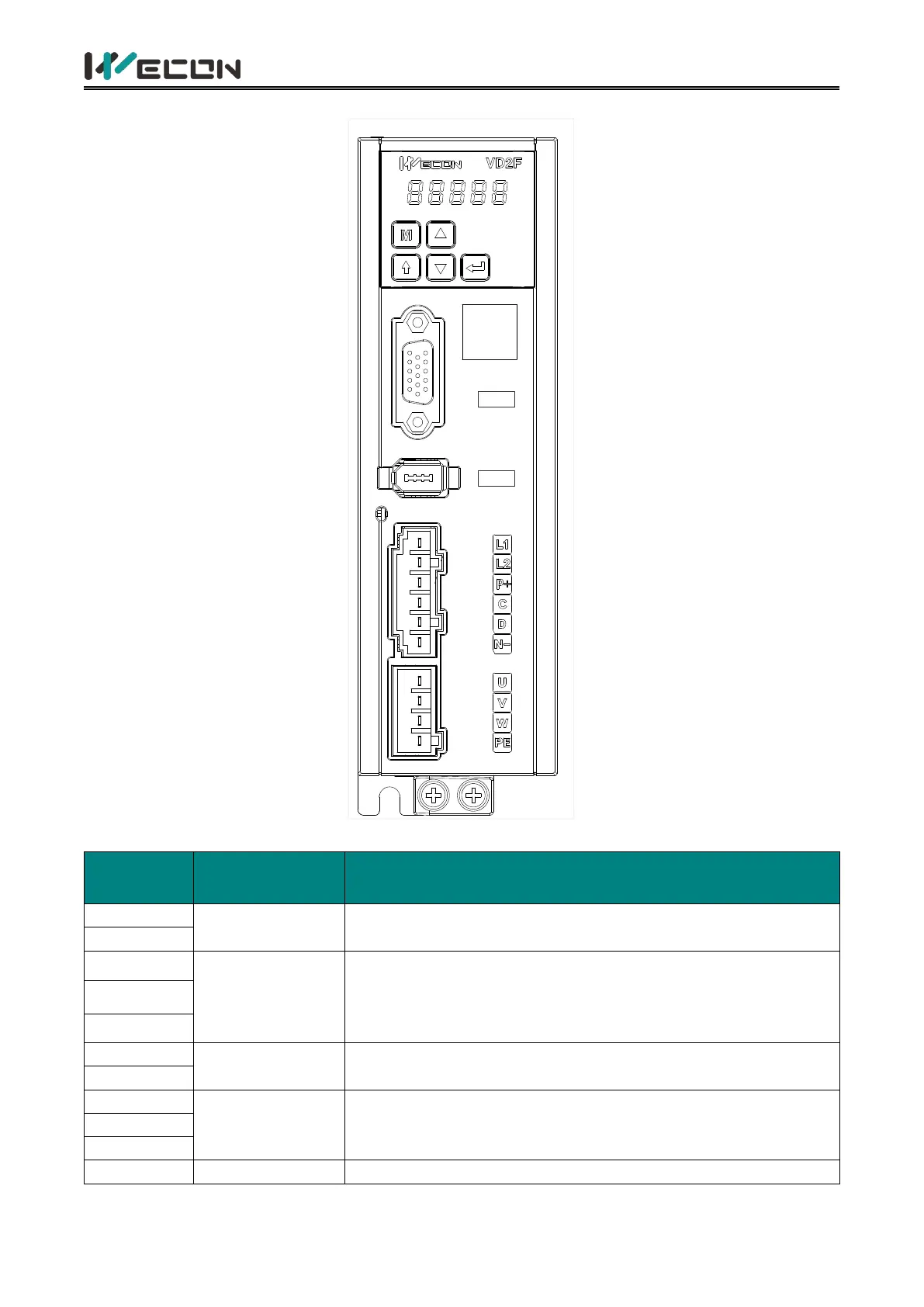

(3) VD2F servo drive main circuit terminal distribution
CN2
CN1
Charge
Figure 4-3 VD2F servo drive main circuit terminal distribution
Terminal
number
Terminal name
Terminal function
L1
Power input
terminal
Connect single-phase 220V input power
L2
P+
Braking resistor
terminal
Use internal braking resistor: short-circuit C and D.
Use external braking resistor: Please disconnect the short wire
between C and D, and then connect the external braking
resistor between P+ and C.
C
D
P+
Common DC
bus terminal
DC bus terminal of servo drive
N
U
Motor power
line terminal
Connect with the U, V and W of the motor to power the motor.
V
W
PE
Ground terminal
Grounding treatment of the servo drive.
Table 4-3 The name and function of VD2F servo drive main circuit terminal
