Wecon VD2F-010SA1P - Page 32

Wecon VD2 SA Series Servo Drives Manual (Lite V1.1)
WECON technology Co., Ltd
26

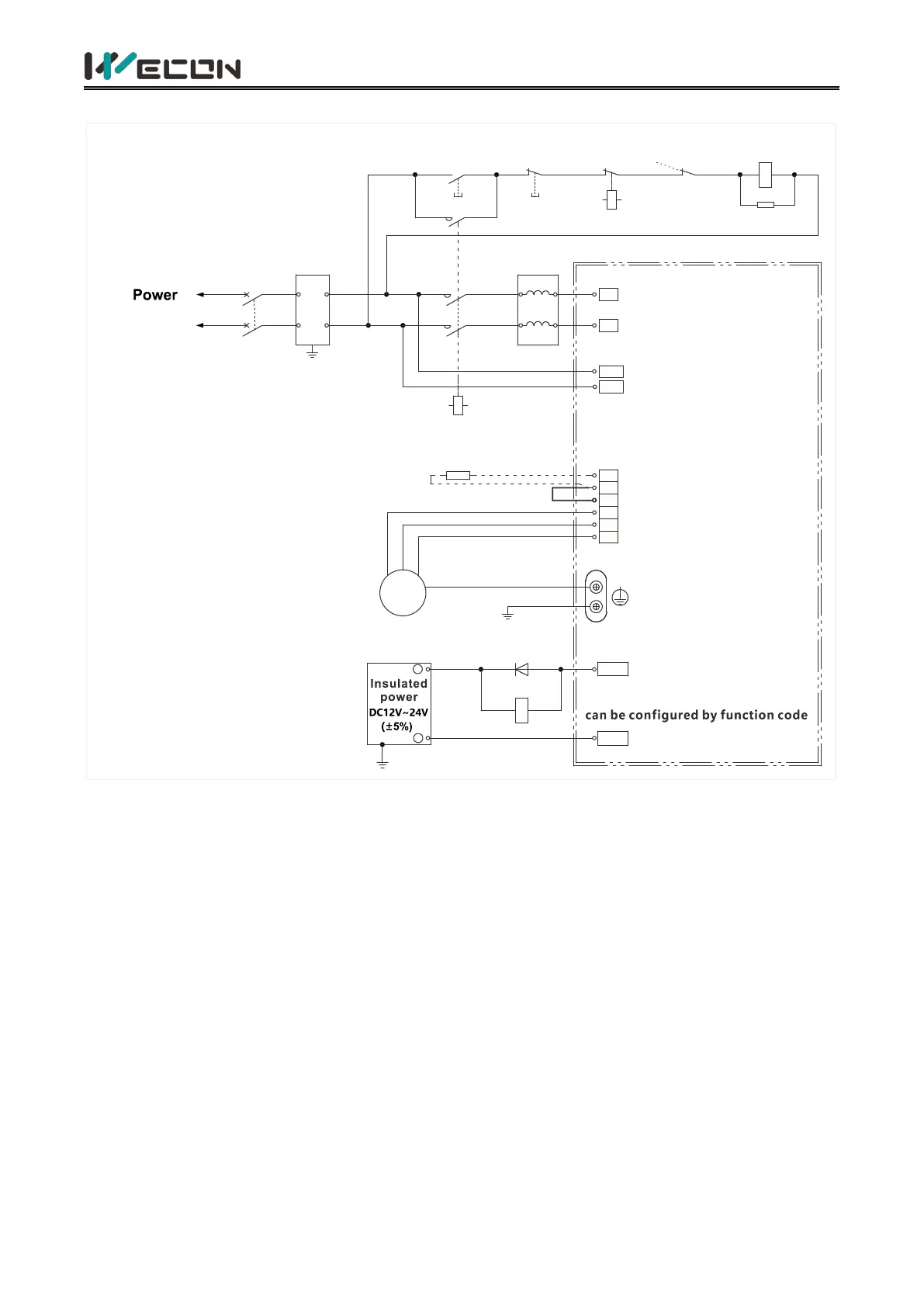

(2) VD2B drive single-phase 220V main circuit wiring
 
 



 
External brake resistor


Motor




(Single-phase)
AC220V,50Hz

Incoming line
Power input
Control power input





 
 
 
Motor output
Short wire


Red
Yellow
Blue
Yellow-green
Inductive surge absorber
Noise filter
External brake resistor
( )Internal temperature control switch
reactor
※ ALM is output from DO2 by default
Figure 4-5 VD2B drive single-phase 220V main circuit wiring
