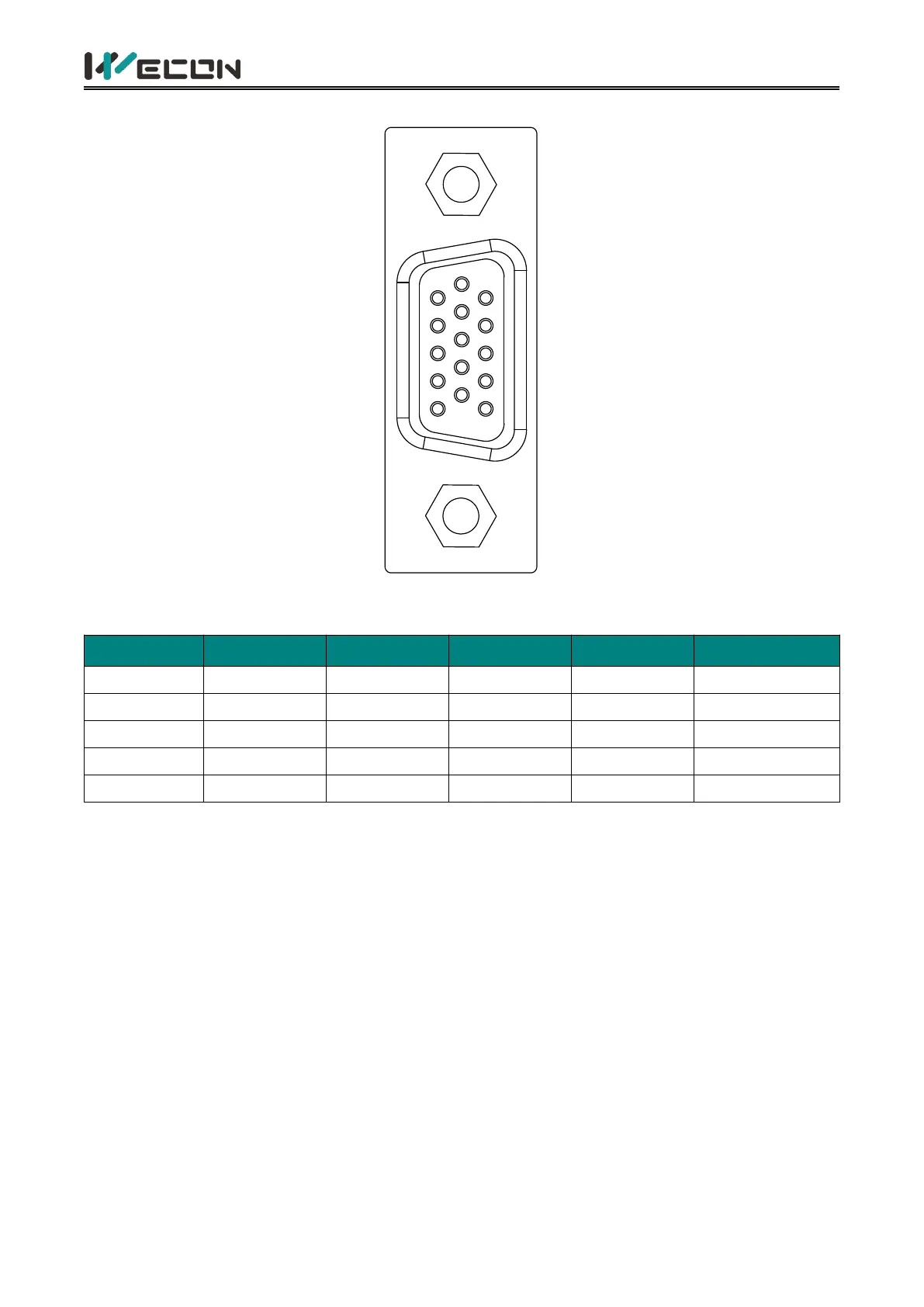

(2) VD2F servo drive control input and output pin distribution (CN2 interface)
1
5
10
1115
6
Figure 4-10 VD2F servo drive control input and output pin distribution
Pin number
Signal name
Pin number
Signal name
Pin number
Signal name
1
DO3
6
DO4
11
PL
2
DO1
7
DO2
12
PULS+
3
SS
8
DOCOM
13
PULS-
4
DI3
9
DI4
14
SIGN+
5
DI1
10
DI2
15
SIGN-
Table 4-13 CN2 interface definition of VD2F servo drive
