12 | CFW300
English
Installation and Connection

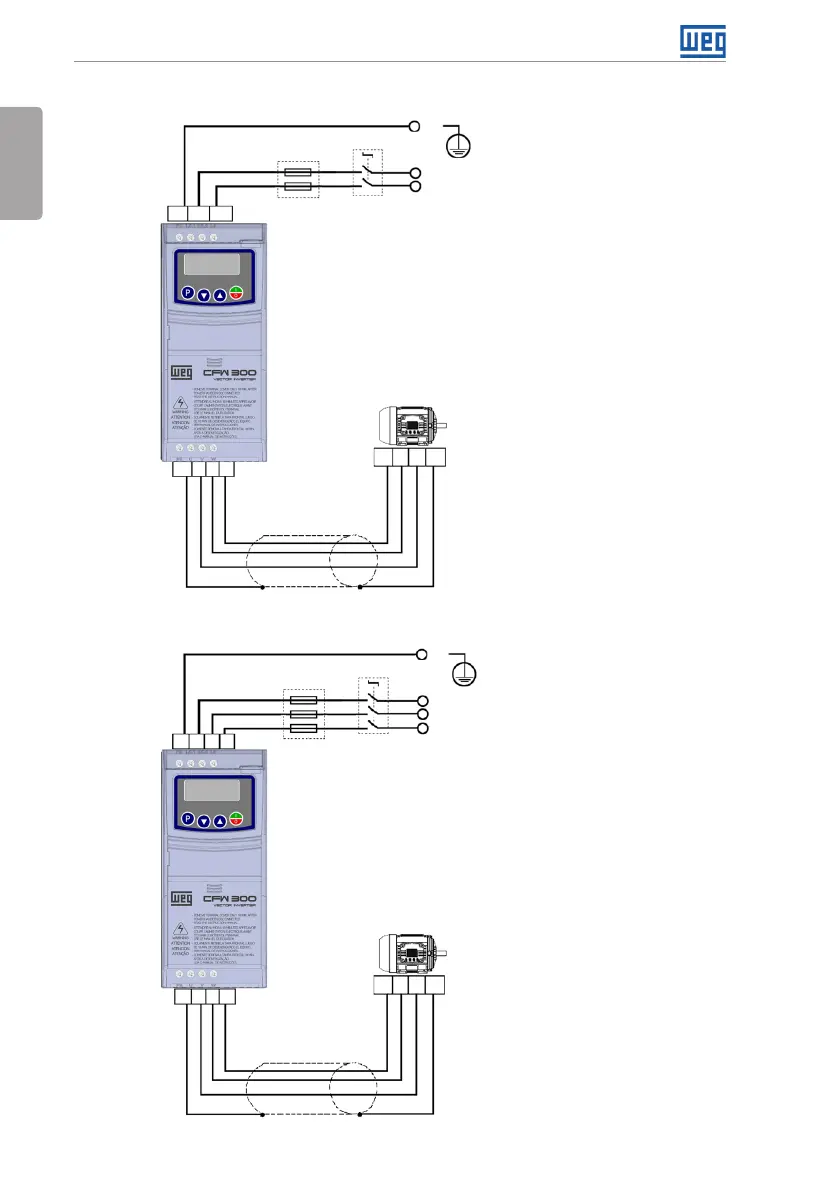

3.2.3 Power Connections
PE
UPE
Shielding
PE
+UD-UD
Disconnecting
switch
Fuses
Power
supply
PEW V U
V W
Negative pole of the DC power supply (-UD)
Positive pole of the DC power supply (+UD)
Only available for the specific models of frame A (see Table 2.2 on page 7).
(a) Frame size A DC power supply
Shielding
PE
Disconnecting
switch
Fuses
Power
supply
PEW V U
U V WPE
PE L1 L2L3
L1/L
L2/N
L3
*
(*) The power terminal L3 is not available in models of frame size A single-phase
(b) Frame size A single-phase and three-phase power supply
